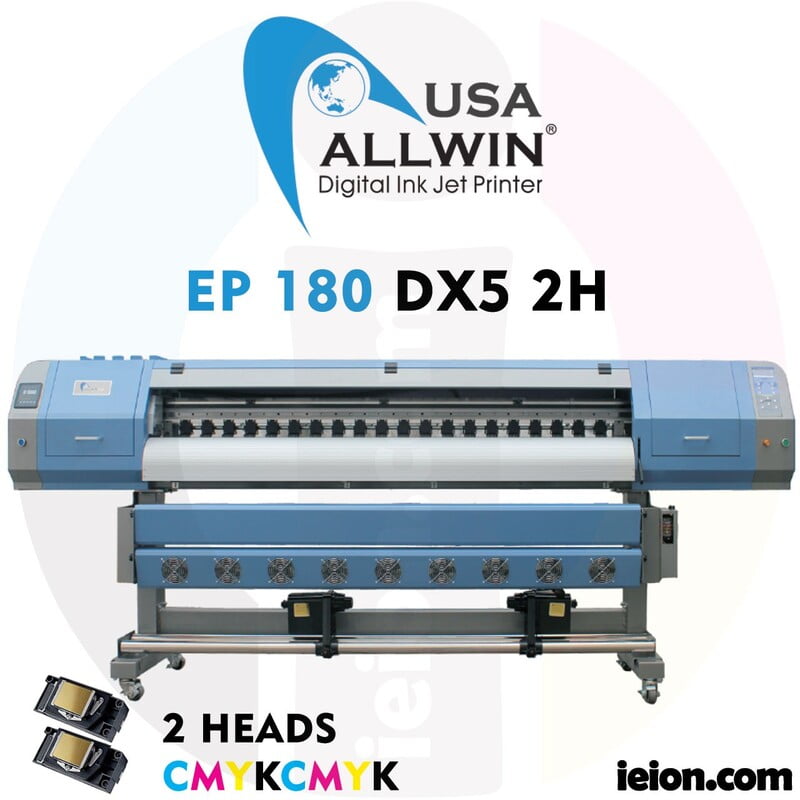

Allwin EP 180 DX5 2H Ecosolvent Printer

Non-returnable
We IEION CORPORATION are the authorized and sole dealers of ALLWIN printing machines all over USA.
Ready for Eco Solvent Inks.

  1. This Epson machine offers a printing quality which is competitive to the Japanese eco solvent printers.
  2. It offers automatic feeding and collecting structure.
  3. It comes with EPSON head model with intelligent infrared heater and fan drying system.
  4. The machine undergone different quality tests and it is stable and enough for mass production requirement.
Choose Quantity
$11,600.00 $17,600.00
+ Add to Cart+ Adding to cart
Allwin EP 180 DX5 2H Ecosolvent Printer
Product Details
Specifications





See specifications for more details.

Recommended INK - Bordeaux MX
Printers
  • Printhead
    Epson DX5
  • Printheads Quantities
    2
  • Maximum width
    Up to 1,800 mm (72")
  • Print resolution
    720x1440
  • Ink Kind
    Eco Solvent
  • Ink Supply System
    1.5 liter bottle each color
  • Colors
    C,M,Y,K
  • Drying Device
    3 way intelligent heater (Pre/Print/After), Drying fan unit)
  • Media Width
    Up to 1,850 mm (74")
  • Media Weight
    Feeding : up to 100 kg (220lbs) / Take-up : up to 40 kg(88.2lbs)
  • Media Feeding / Take-up device
    Equipped
  • Interface
    USB2.0
  • Power Main unit
    AC 220vts
  • Power Heaters
    AC 220vts
  • Drying Fan Unit
    AC 220vts
  • Power consumption
    30amps
  • Temperature Environment
    20°C-35°C (68-95 °F);
  • Humidity Environment
    5-65 % RH (non condensing)
  • Equipment Dimensions
    40" x 60" x 170"
  • Weight
    400 lbs
  • Shipping Dimensions
    132" x 30" x 37"
  • Shipping Weight
    660 lbs
  • Warranty
    1 year (Non consumables)
  • Speed (Draft Mode)
    40 m2/h / 380 f2/h
  • Speed (Production Mode)
    25 m2/h / 269 f2/h
  • Speed (High Quality Mode)
    12 m2/h / 129 f2/h
