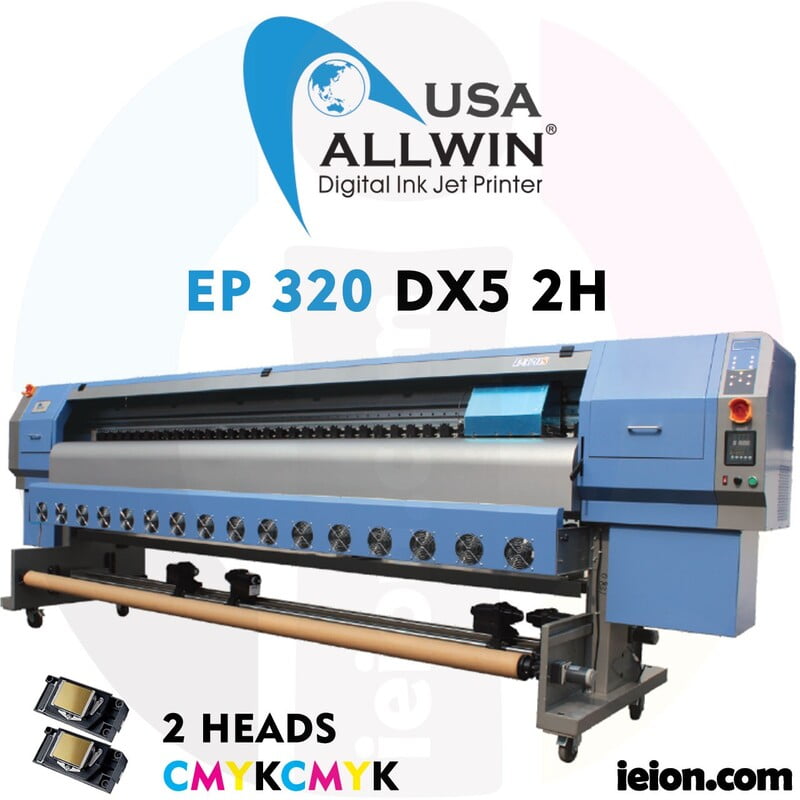

llwin EP 320 DX5 2H 10' wide Eco Solvent Printer
Ready for Eco Solvent Inks.
- This Epson machine offers a printing quality which is competitive to the Japanese eco solvent printers.
- It offers automatic feeding and collecting structure.
- It comes with EPSON head model with intelligent infrared heater and fan drying system.
- The machine undergone different quality tests and it is stable and enough for mass production requirement.
Recommended INK - Bordeaux MX
- PrintheadEpson DX5
- Printheads Quantities2
- Maximum widthUp to 3,200 mm (126")
- Print resolution720x1440
- Ink KindEco Solvent
- Ink Supply System1.5 liter bottle each color
- Drying Device3 way intelligent heater (Pre/Print/After), Drying fan unit)
- Media WidthUp to 3,250 mm (128")
- Media WeightFeeding : up to 100 kg (220lbs) / Take-up : up to 40 kg(88.2lbs)
- Media Feeding / Take-up deviceEquipped
- Power Main unitAC 220vts
- Power HeatersAC 220vts
- Drying Fan UnitAC 220vts
- Power consumption35amps
- Temperature Environment20°C-35°C (68-95 °F);
- Humidity Environment5-65 % RH (non condensing)
- Equipment Dimensions40" x 60" x 170"
- Weight800 lbs
- Shipping Dimensions42” x 62” x 175”
- Shipping Weight1000 lbs
- Warranty1 year (Non consumables)
- Speed (Draft Mode)40 m2/h / 380 f2/h
- Speed (Production Mode)25 m2/h / 269 f2/h
- Speed (High Quality Mode)12 m2/h / 129 f2/h
