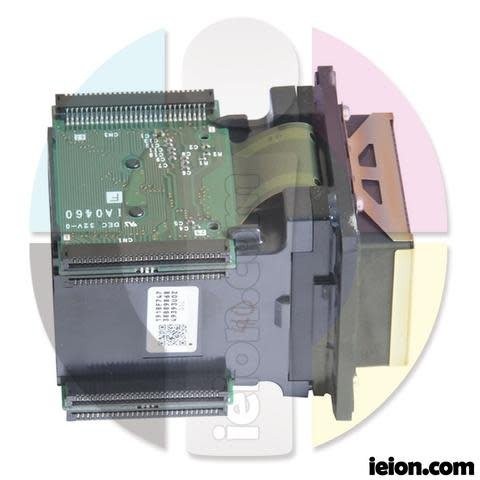

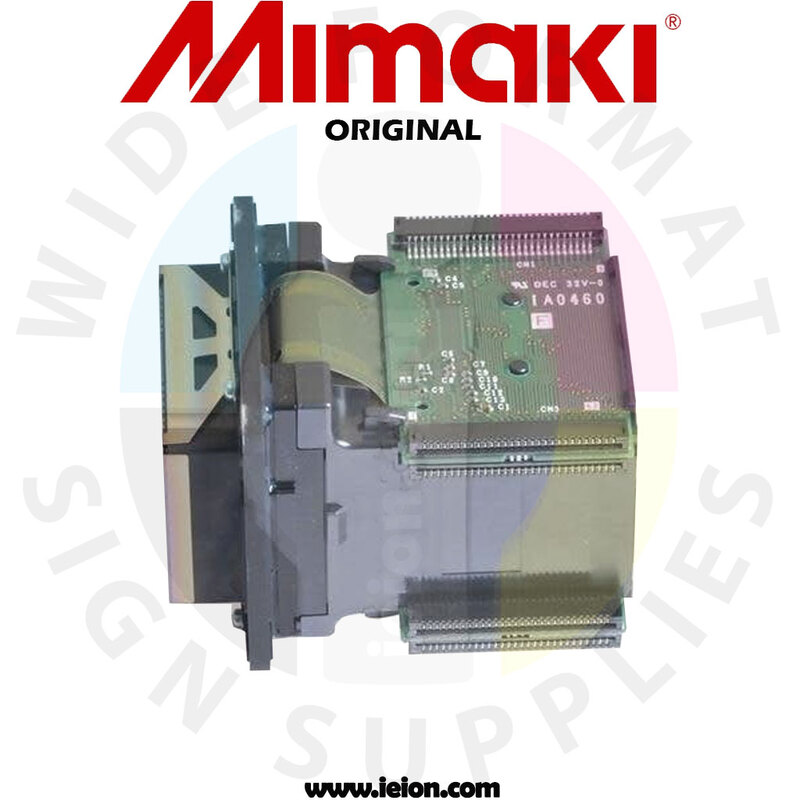

Mimaki JV34 Print head ID Set- M010792
This Mimaki JV34 Print head ID Set is the original Mimaki part (# M010792).
The JV34-260 Printhead ID Set solvent print head is based upon the most recent Epson technology.
This printhead assembly is suitable for the Mimaki JV34-260 printers. The JV34-260 print head identification set has a native resolution of 360 dpi, 8 nozzle lines (corresponding to 8 independent ink channels) and 180 nozzles per line.
The JV34-260 printhead identification assembly can be used on 4-color or 8-color printers and has a minimum variable drop size of 1.5 pico-liter (the maximum drop size is 21 pico-liter). The typical trigger frequency for the JV34-260 print head identification assembly is 8 kHz.
Specifications:
- Technology: Micro-Piezo
- Native resolution: 360 dpi
- Min. Droplet Size: 1.5 pico litre
- Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)
- Firing Frequency: 8 kHz
- Ink Compatibility: eco-solvent and mild solvent
- Damper type: requires DX6 Valve Dampers
It is highly recommended to replace the head cables together with a new printhead.
The heads are original and tested by the factory prior to shipment. They do not have a guarantee due to the large number of variables that may affect them during the installation.
Parts Type
- Parts TypePrint heads
