Specifications

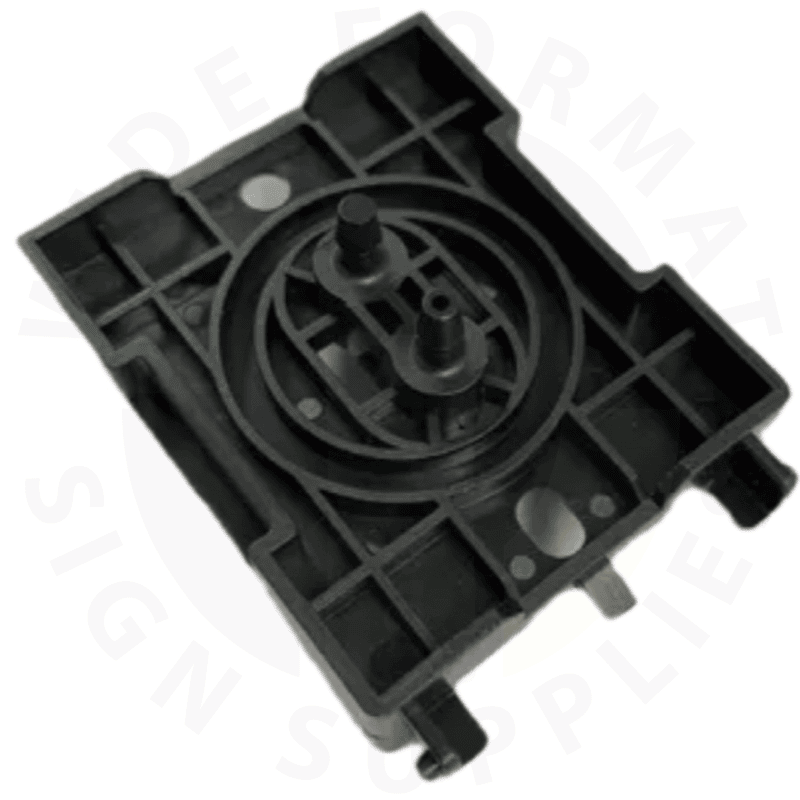

• Name: Cap attachment BR (Bracket)

• Location: Capping station assembly (model-specific position)

• Function: Seats/aligns the cap top; maintains seal to printhead; routes suction to the pump via cap port

• Material: Molded engineering plastic with alignment posts and mounting holes

• Includes: Bracket only (cap top, springs, screws, tubes, and gaskets sold separately unless noted)

• Packaging: Single piece, service-packed

• Compatibility: For Mimaki printers that specify M606020 in the parts list—confirm by model and serial-range exploded view before ordering.

Highlights

• OEM Fit & Seal: Correct geometry keeps the cap top square to the head for leak-free maintenance.

• Nozzle Health: Reliable capping reduces drying, banding, and repeated recovery cleans.

• Service-Friendly: Drop-in replacement using existing hardware; clearly defined alignment features.

• Solvent-Resistant: Built from durable plastic suitable for daily production environments.

Use & Details

• When to Replace: Poor head seal, ink leaks around the cap, weak suction/pump errors, recurring missing nozzles after idle, or visible warping/cracks in the bracket.

• Installation Notes:

  • Power off and park/lock the carriage; observe ESD and ink-handling safety.

  • Support the capping station, remove old bracket, transfer cap top and hardware if reusable.

  • Set cap height/level per service manual; ensure even contact across the head.

  • Reconnect tubes; check for kinks.

• Post-Install Checks: Perform suction/flush test, then a nozzle check. Verify no air leaks and that the head caps cleanly.

• Before Purchase Checklist: Printer model → parts diagram → code M606020 → hardware/cap top reuse needs.

Important: Incorrect cap height or misalignment can damage the printhead or cause persistent nozzle loss. Professional installation and calibration are recommended. Electronics/consumable parts are typically non-returnable once installed—confirm your model and part number first.
