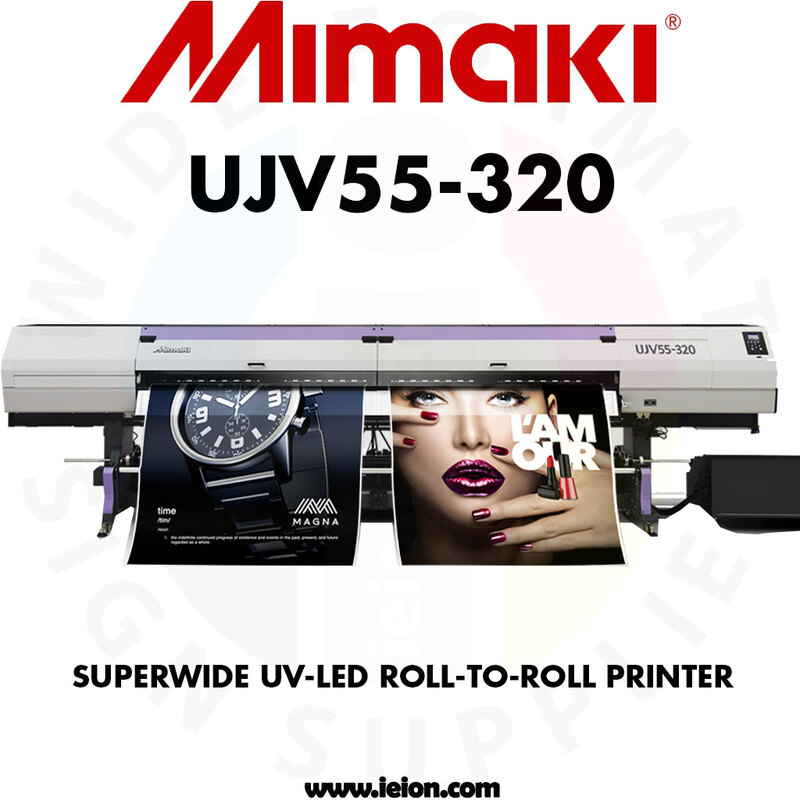

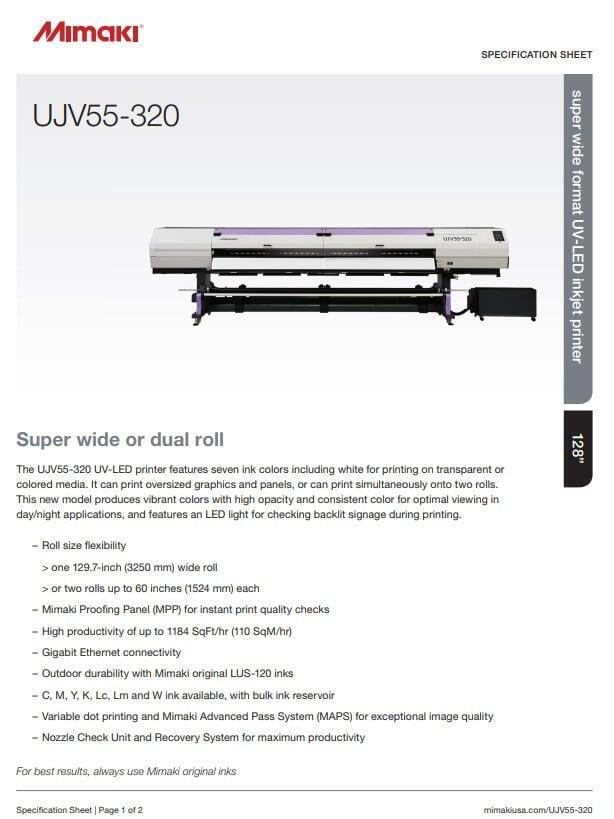

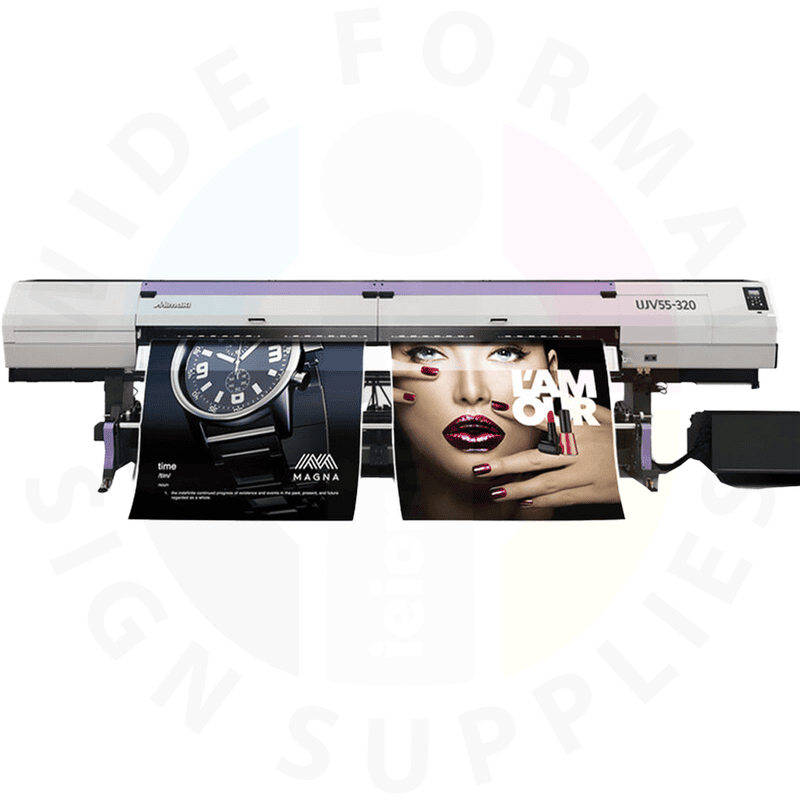

Mimaki Printer UJV55-320 LED UV

Specifications

• Printheads: 2 × On-demand piezo (staggered)

• Max Resolution: 600, 1,200, 1,800 dpi

• Ink Types / Colors: LUS‑170 UV‑LED (C, M, Y, K, Light Cyan, Light Magenta, White, Clear); LUS‑200 UV (C, M, Y, K, White)

• Ink Size / Circulation: 1 L bottles; White ink circulation system

• Max Print Width: 1,320 mm (51.9″)

• Media Width / Capacity: 50 in (1,270 mm)

• Media Roll Diameter: ≤ 250 mm

• Media Roll Weight: ≤ 45 kg

• Interface: Ethernet 1000BASE-T, USB 2.0

• Power: AC100–120 V / 200–240 V ±10%, 50/60 Hz

• Power Consumption: Max 1,500 W

• Operating Environment: 20–30 °C, 35–65% RH

• Certifications: CE, ETL, FCC, VCCI, CB, ENERGY STAR, RCM, KC

Highlights

• LED UV curing enables instant-dry prints and lower energy use

• Supports white and clear inks for underbase, varnish, or texture effects

• High-resolution piezo printheads deliver sharp details and vibrant colors

• Suitable for rigid and flexible media

• Energy-efficient and environmentally friendly operation

• User-friendly interface and automated calibration improve workflow efficiency

Applications

• Signage and display graphics

• Labels and decals

• Interior decoration and architectural panels

• Packaging prototypes and mock-ups

• Specialty graphics on rigid or flexible substrates

Printer Weight and Size

• Weight: 2,006 lb (910 kg)

• Dimensions (W × D × H): 5,410 × 990 × 1,440 mm → ~17.75 ft × 3.25 ft × 4.72 ft

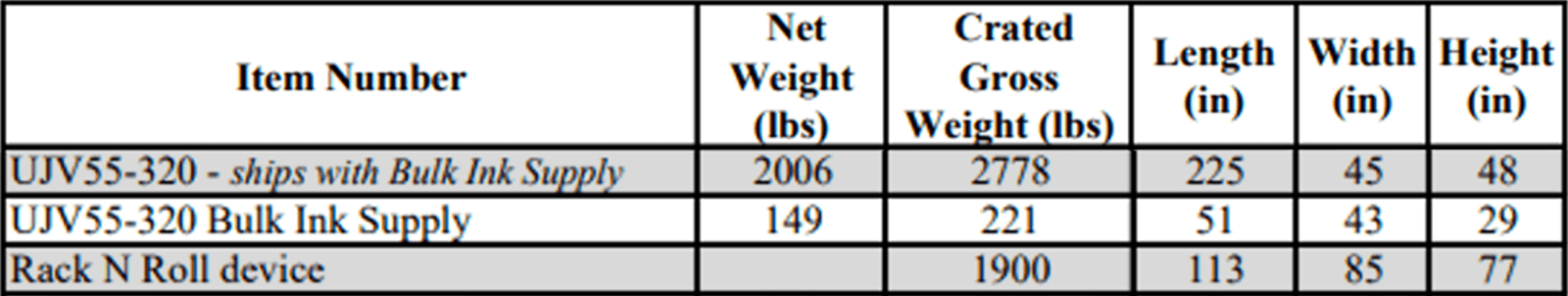

Shipping Information

• Packaged Weight: 2,006 lb (910 kg)

• Packaged Dimensions: ~20 ft × 3.5 ft × 5 ft

Recommended Inks

• Mimaki Ink UV LUS 120 1 L Bottle

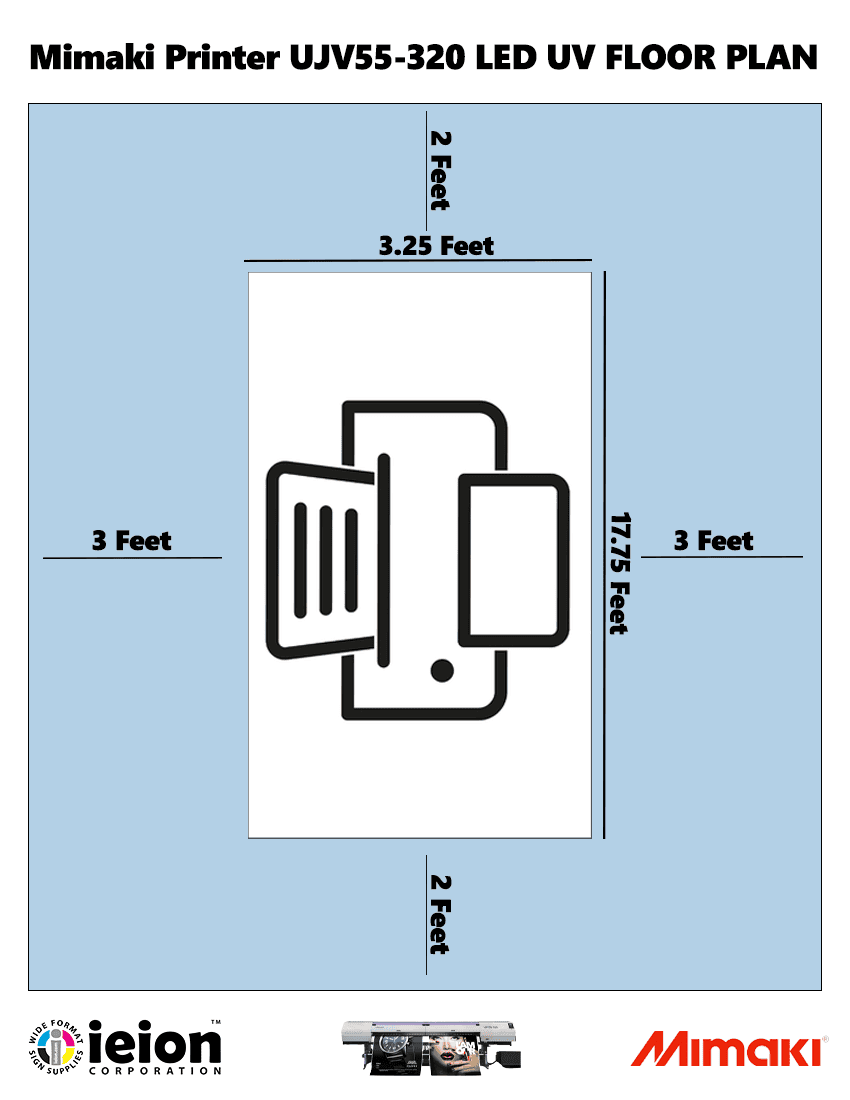

Floor Plan
