Specifications

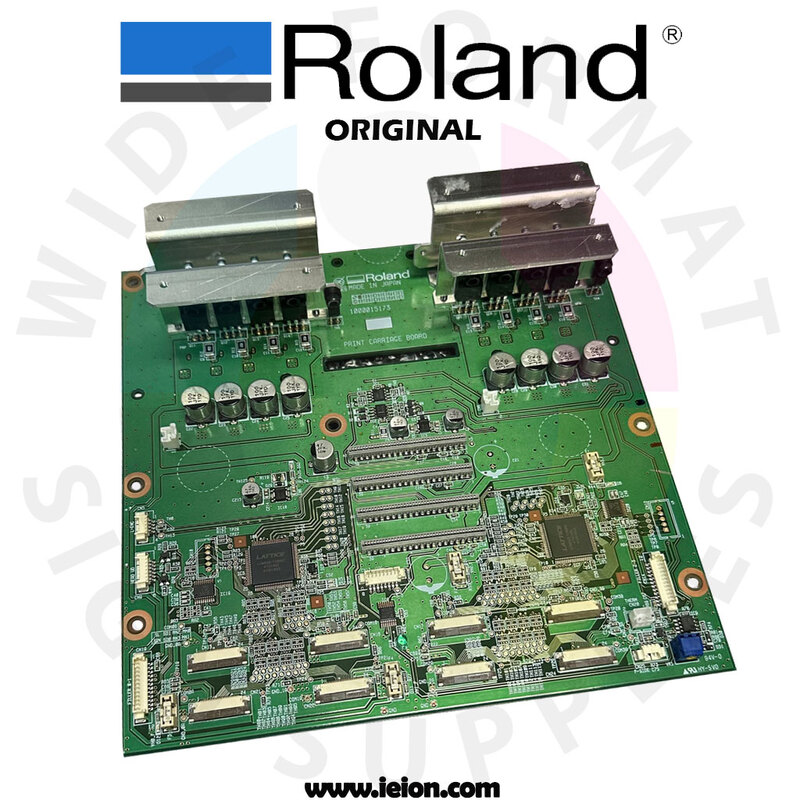

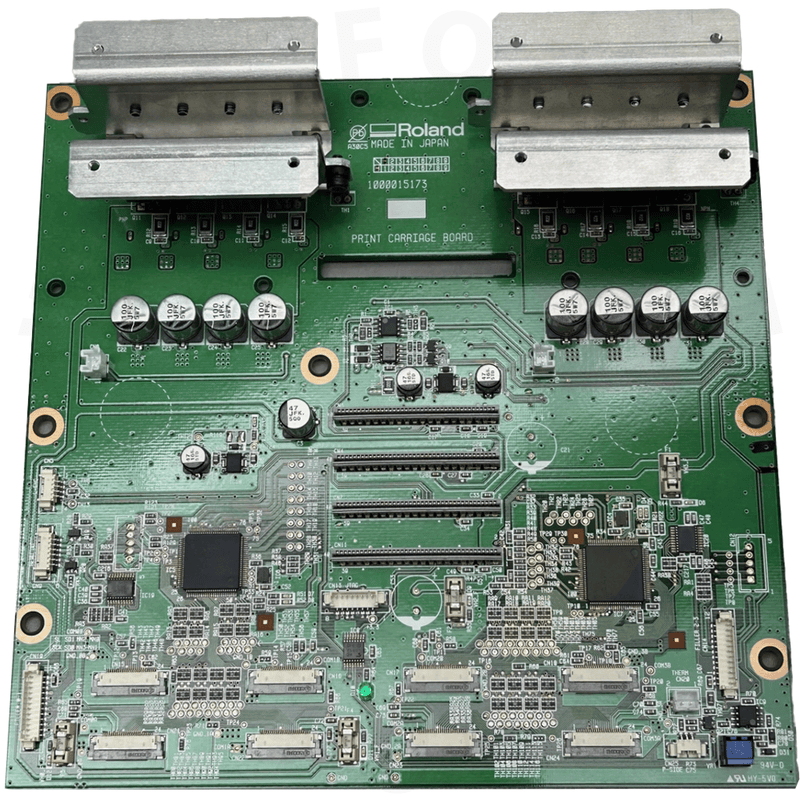

• Model: VG-640_01

• Type: Print cartridge assembly (board printing)

• Compatibility: Roland VG-640 series printers (check your service manual for model-specific fit)

• Ink/Media Interface: Integrated carriage-and-nozzle assembly (cartridge + head interface)

• Materials: Precision-molded housing; high-tolerance nozzle components

• Dimensions: Compact assembly sized for VG-640 carriage (refer to service diagram for exact mm)

• Weight: Lightweight for carriage balance and reduced wear

• Part Number / SKU: VG-640_01

• Packaging: Anti-static protective packaging with installation guide

• Warranty: Manufacturer or supplier limited warranty (varies by vendor)

Highlights

• Drop-in replacement engineered to match OEM fit and function.

• Restores print quality and nozzle reliability for board printing tasks.

• Reduces downtime with straightforward, fast installation.

• Built to maintain precise nozzle alignment and consistent droplet placement.

• Packaged to protect delicate components from contamination and static.

Applications

• Production printing of rigid boards and substrates.

• Sign, display, and POS board fabrication requiring accurate, long-run prints.

• Short-run and on-demand board printing in print shops and manufacturing lines.

• Prototype and sample board production where quick cartridge swaps are needed.

• Environments requiring consistent print quality over extended runs.

Use and details

Installation:

1. Power off the printer and follow the vehicle/service manual’s safety procedures.

2. Open the printer cover and access the carriage assembly.

3. Remove the existing cartridge assembly following the recommended removal steps to avoid damaging connectors or nozzles.

4. Unpack the VG-640_01 from its anti-static packaging—avoid touching nozzles or electrical contacts.

5. Align the cartridge assembly with the carriage rails and seating points; slide gently into place until it clicks or locks.

6. Secure any retaining latches and reconnect any electrical connectors.

7. Run the printer’s alignment and nozzle-check routine to confirm proper installation and print quality.

Maintenance Tips:

• Run regular nozzle checks and cleaning cycles recommended by Roland to prolong life and ensure consistent output.

• Store spare cartridges in a cool, dry place and in anti-static packaging.

• Avoid prolonged exposure of nozzles to dust or direct sunlight to prevent clogging or degradation.

• Use manufacturer-recommended inks and fluids to prevent chemical incompatibilities that can damage the cartridge.

Safety & Compatibility Notes:

• Confirm VG-640_01 compatibility with your specific VG-640 model and firmware version before purchase or installation.

• Follow all manufacturer safety and disposal instructions for used cartridges and ink residues.

• For best results, have installations performed by trained technicians or consult your authorized Roland service provider.
