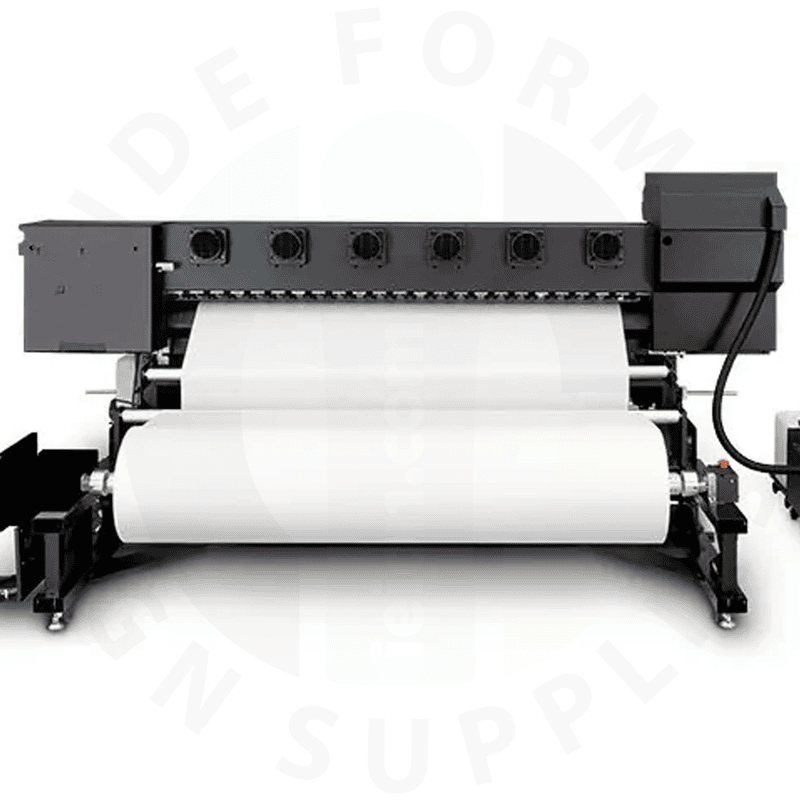

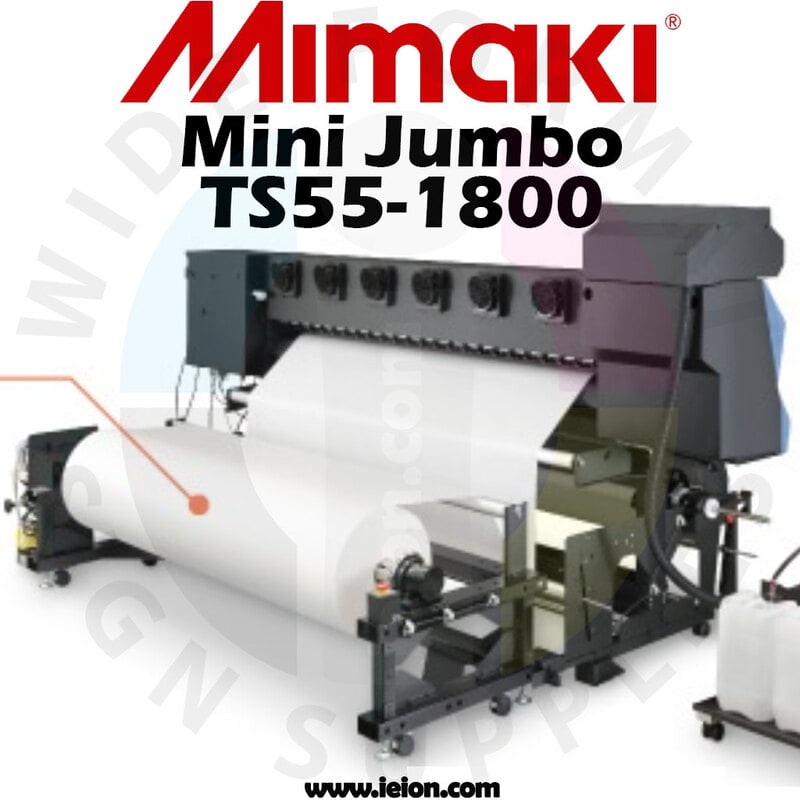

Mimaki Printer Mini Jumbo Roll Unit BOM-SA TS55-1800

Specifications:

• Compatible Printer: Mimaki TS55-1800

• Maximum Roll Width: 1,800 mm (70.9 in / 5.91 ft)

• Maximum Roll Diameter: 250 mm (9.84 in / 0.82 ft)

• Media Core Support: 3 in (76 mm) or 2 in (50 mm) cores

• Load Capacity: Up to 40 kg (88 lbs)

• Operation: Motorized feed and rewind

• Control: Integrated with TS55-1800 printer system

• Media Types: Vinyl, banner material, canvas, and flexible substrates

Highlights:

• Supports larger media rolls for extended printing runs

• Reduces downtime by enabling continuous printing

• Smooth and precise media feeding for consistent print quality

• Motorized feed and rewind for effortless operation

• Compatible with a wide range of flexible materials

• Improves overall production efficiency

Applications:

• Wide-format signage

• Banners and posters

• Vehicle graphics and wraps

• Indoor and outdoor promotional displays

• Any large-format printing project requiring continuous media feed

Printer Weight and Size:

• Dimensions: 1,200 x 500 x 600 mm (47.2 x 19.7 x 23.6 in / 3.93 x 1.64 x 1.97 ft)

• Weight: 55 kg (121 lbs)

Shipping Information:

• Packed Dimensions: 1,300 x 600 x 700 mm (51.2 x 23.6 x 27.6 in / 4.27 x 1.97 x 2.3 ft)

• Shipping Weight: 65 kg (143 lbs)

Recommended Inks:

• Use with the inks compatible with the Mimaki TS55-1800 printer (e.g., TS55-1800 standard inks)

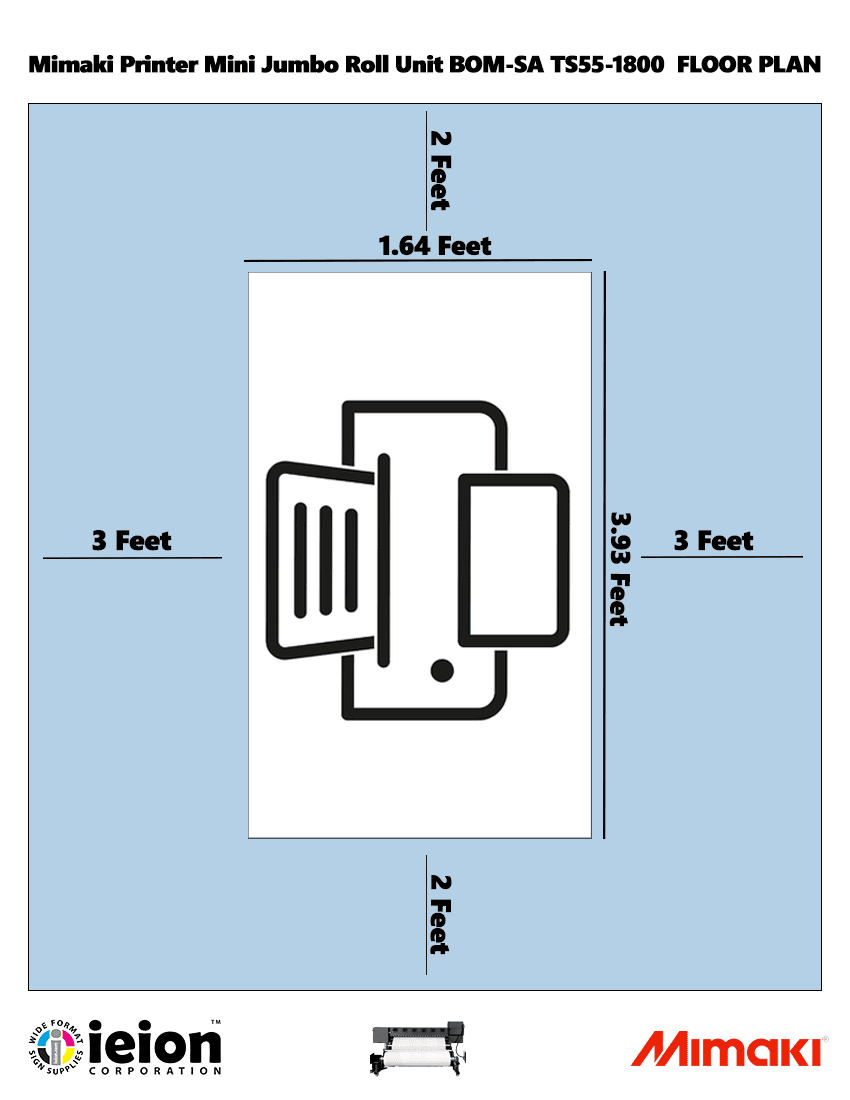

Floor Plan:
