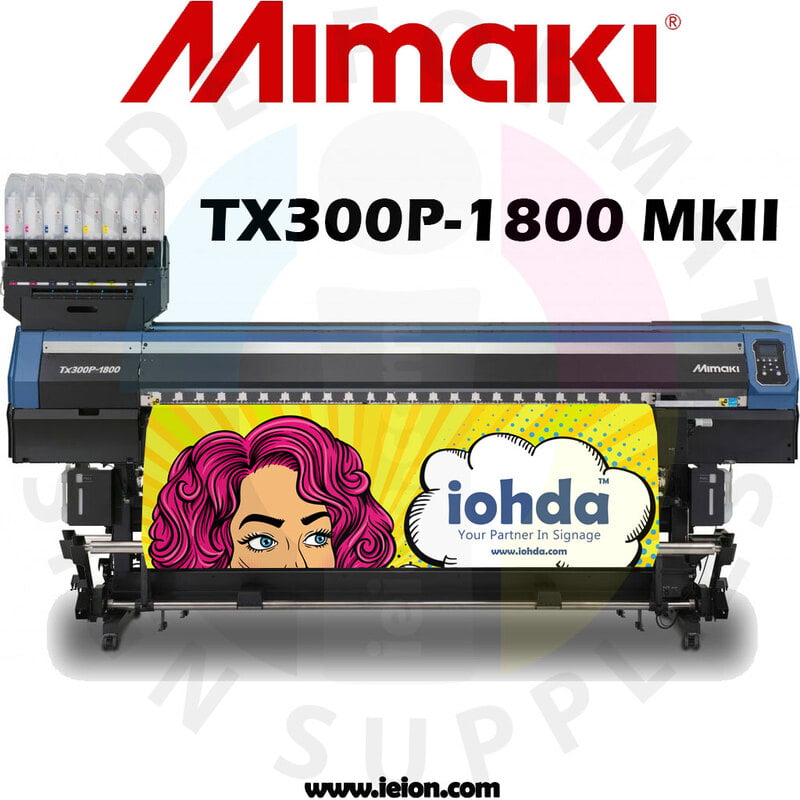

Mimaki Printer MkII TX300P-1800

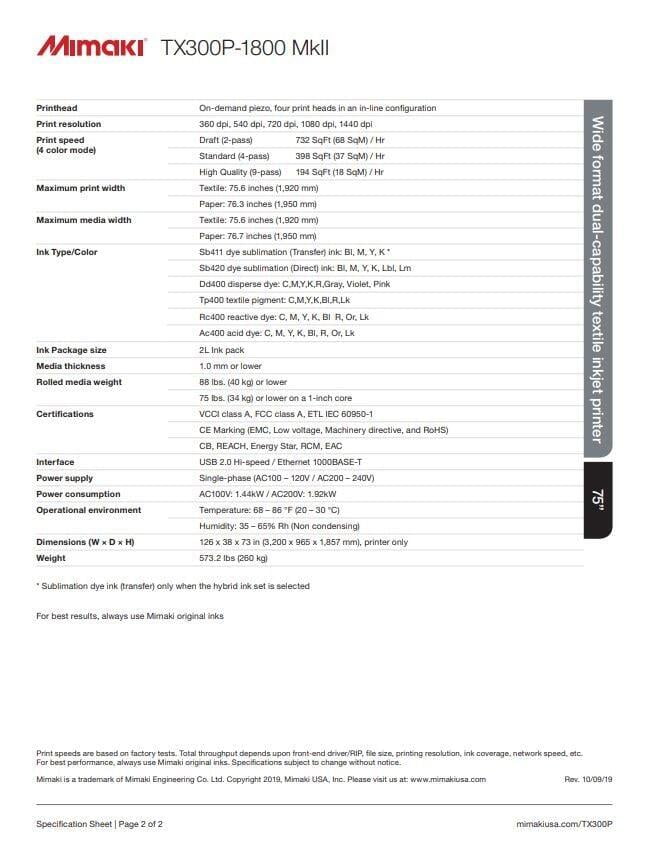

Specifications

• Printhead: On-demand piezo, four print heads in an in-line configuration

• Print Resolutions: 360 dpi, 540 dpi, 720 dpi, 1,080 dpi, 1,440 dpi

• Print Speed (4-Color Mode): Up to 732 ft²/h (68 m²/h) in draft mode

• Maximum Print Width: 75.6″ (1,920 mm)

• Maximum Media Width: 75.6″ (1,920 mm)

• Maximum Media Thickness: Up to 1.0 mm (0.039″)

• Maximum Media Weight: 88.2 lbs (40 kg) per roll

• Ink Types: Textile pigment, dye sublimation, disperse dye, reactive dye, acid dye

• Interface: USB 2.0, Ethernet 1000BASE-T

• Power Supply: Single-phase AC100–120V / AC200–240V

• Power Consumption: 1.44 kW (AC100–120V), 1.92 kW (AC200–240V)

• Operational Environment: 68–86°F (20–30°C), Humidity 35–65% RH (non-condensing)

• Certifications: VCCI Class A, FCC Class A, ETL IEC 60950-1, CE, RoHS, REACH, Energy Star, RCM, EAC

Highlights

• Dual capability: Switchable between direct-to-textile and sublimation transfer printing

• Versatile ink options: Supports multiple ink types for various applications

• High productivity: Up to 732 ft²/h (68 m²/h) in draft mode

• Advanced print technology: Utilizes MAPS4 for smooth gradations and reduced banding

• Nozzle recovery systems: Includes Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS)

• Bulk ink system: Equipped with MBIS3 for long-time continuous printing

• User-friendly operation: Easy-to-replace platens and intuitive controls

Applications

• Fashion: Apparel, textiles

• Interior Décor: Curtains, upholstery

• Soft Signage: Banners, flags

• Exhibitions: Displays, booth graphics

• Sampling: Prototyping, short-run production

Printer Size & Weight

• Dimensions (L × W × H): 126″ × 38″ × 73″

  • Millimeters: 3,200 × 965 × 1,857 mm

  • Feet: 10.5 × 3.2 × 6.1 ft

• Net Weight: 573.2 lbs (260 kg)

Shipping Information

• Packaged Dimensions: Approximately 135″ × 45″ × 80″ (3,429 × 1,143 × 2,032 mm) — includes crate and protective padding

• Shipping Weight: Approximately 650 lbs (295 kg) — accounts for crate and packing materials

• Shipping Requirements: Forklift or pallet jack required for unloading

• Minimum installation floor space: 15′ × 8′ (4.6 m × 2.4 m)

• Clearance required around printer for operation and maintenance: 3′ (0.9 m)

Recommended Inks

• Mimaki SB410 & SB411 2 Liter Bags W/C

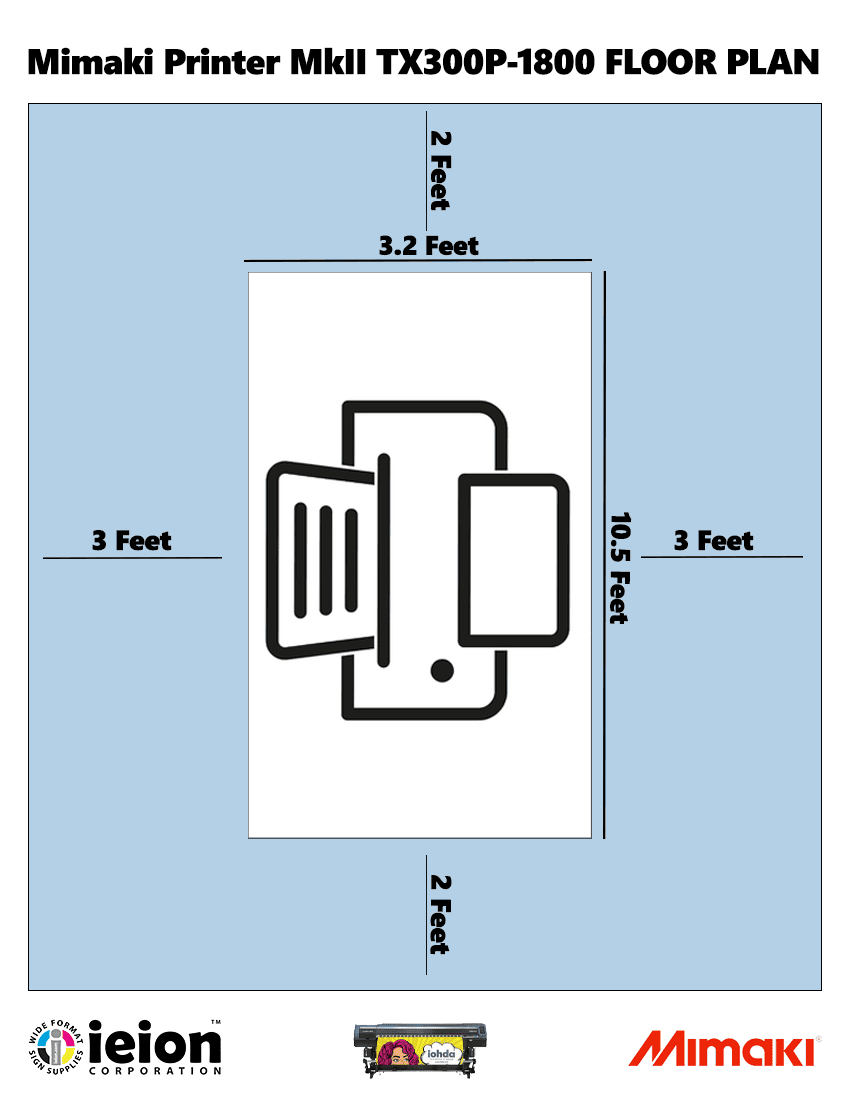

Floor Plan
