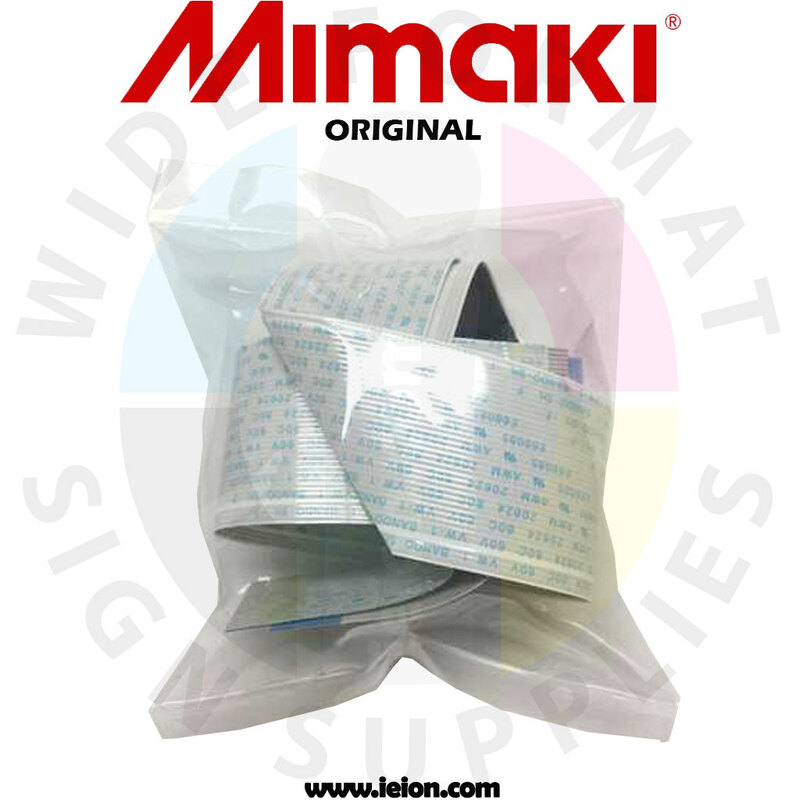

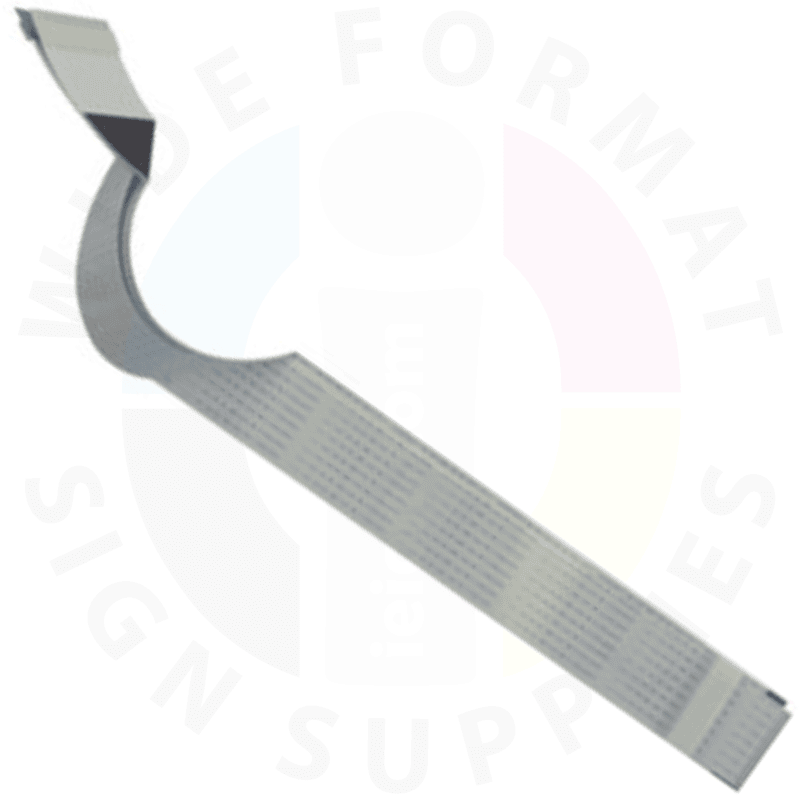

Mimaki Cable FPC ASSY for JV33 Head

Specifications

• Part number: M007622

• Name: Cable FPC ASSY (printhead ribbon cable set)

• Type: Flexible flat cable assembly with pre-applied stiffeners/connectors

• Compatibility: Mimaki JV33 series (JV33-130 / JV33-160 / JV33-260)

• Position: Between the printhead and carriage/control PCB

• Condition: Genuine OEM, new

• Included: Matched FPC cable set for one printhead

Highlights

• OEM signal integrity for consistent nozzle firing and accurate printing

• Plug-and-play fit—correct length, keyed ends, and pre-terminated tabs

• Reliable under movement—designed to flex with the carriage without micro-cracking

• Clean routing with proper stiffness for clamps and guides

Uses and Details

• When to replace:

  • Intermittent nozzle dropouts that change when the carriage moves

  • Visible creases, kinks, burn marks, or ink contamination on the ribbon

  • After a printhead swap or any spill inside the carriage area

• Installation notes:

  • Power off and unplug; observe ESD precautions.

  • Replace the cables as a matched pair; avoid touching copper traces.

  • Route through the original clamps and guides—no sharp bends.

  • After install, run a nozzle check and perform alignment if needed.

• Maintenance tip: Keep the carriage area clean and dry; inspect cable paths periodically to prevent abrasion or pinch points.
