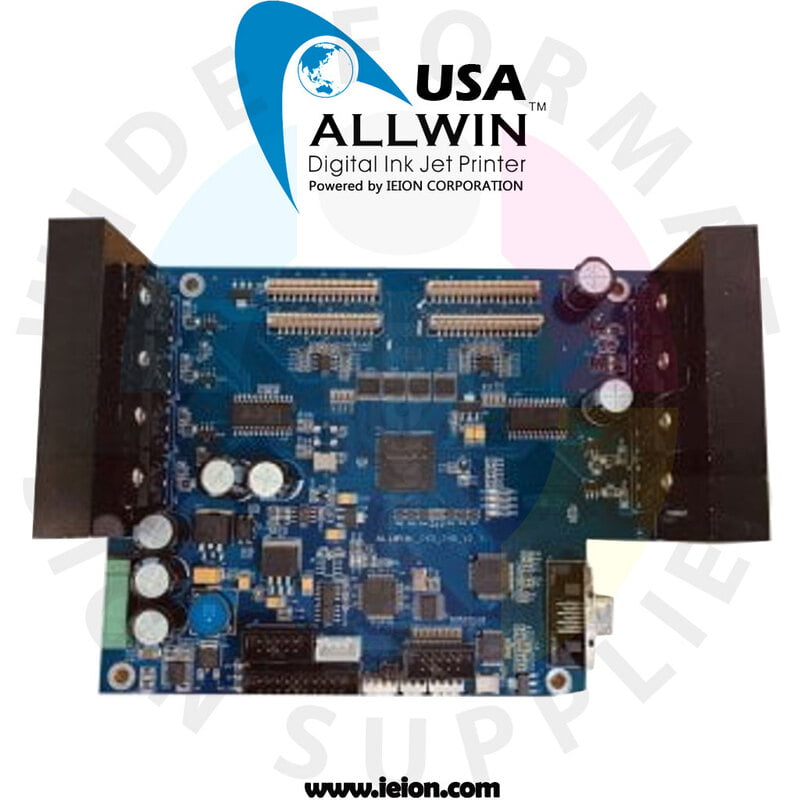

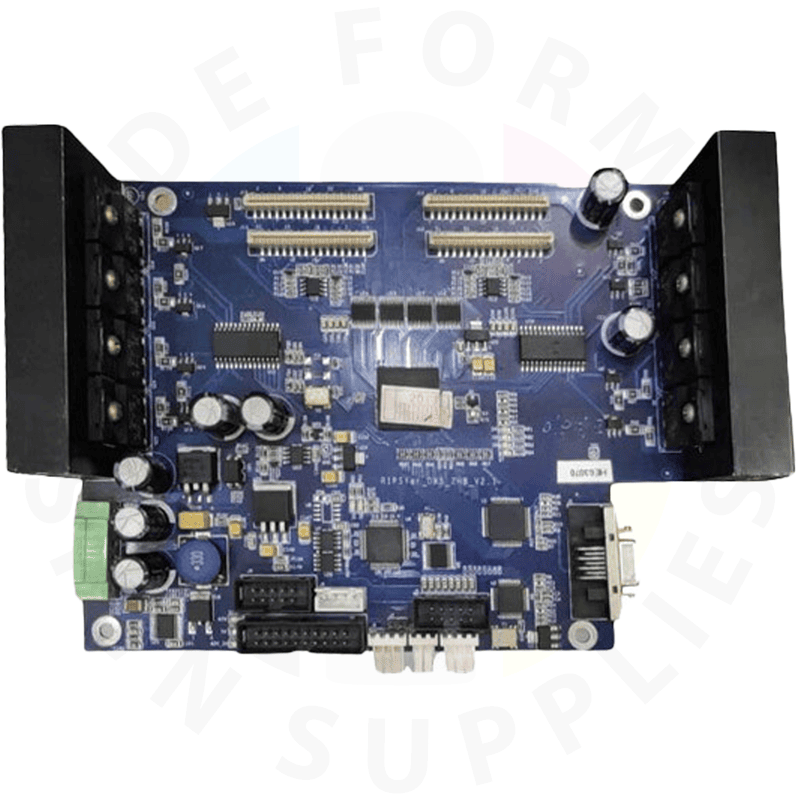

Allwin Board with 2 Epson DX5 Print heads

Specifications

• Print Head: Dual Epson DX5 (Micro Piezo Technology)

• Print Technology: Variable drop size, grayscale

• Ink Type: Eco-solvent or Water-based (as per configuration)

• Max Resolution: Up to 1440 dpi

• Ink Configuration: CMYK (with optional Light Cyan and Light Magenta)

• Max Print Width: 1.6m / 1.8m / 2.0m (model-dependent)

• Print Speed: Up to 30–35 m²/hr

• Supported Media: Flex, Vinyl, Canvas, Photo Paper, PP, Backlit Film

• Media Thickness: Up to 3 mm

• Control Board: Allwin Board (V1.7 or latest compatible version)

• RIP Software: Maintop / Photoprint / Wasatch

• Interface: USB 2.0 / Ethernet

• Power Supply: AC 220V, 50/60Hz

• Operating System: Windows 7/10 (64-bit)

Highlights:

• Dual Epson DX5 heads for increased speed and production efficiency.

• Precise droplet control for sharp text, smooth gradients, and photo-quality prints.

• Stable Allwin mainboard ensures consistent performance and easy maintenance.

• Compatible with a variety of eco-solvent inks for indoor and outdoor durability.

• High-resolution printing suitable for both short-run and continuous production.

• Easy to operate, with reliable media feeding and ink system management.

Applications and Uses:

• Indoor promotional materials: banners, posters, point-of-sale displays.

• Outdoor signage: flex boards, hoardings, one-way vision films.

• Light vehicle graphics and branding decals.

• Fine art and photo reproduction on canvas or coated paper.

• Custom wall graphics, glass films, and decor prints.

• Small-batch packaging and product labeling.
