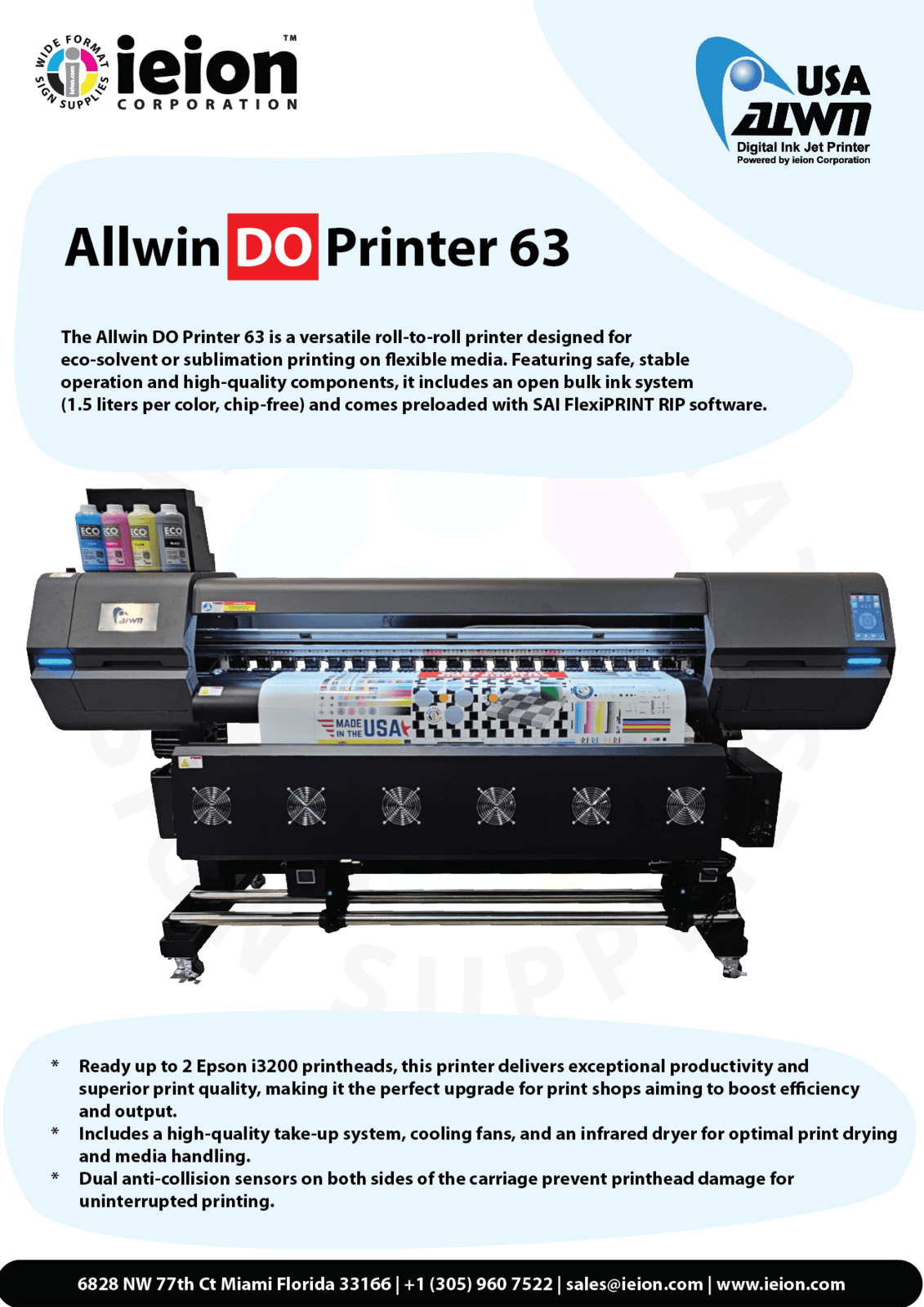

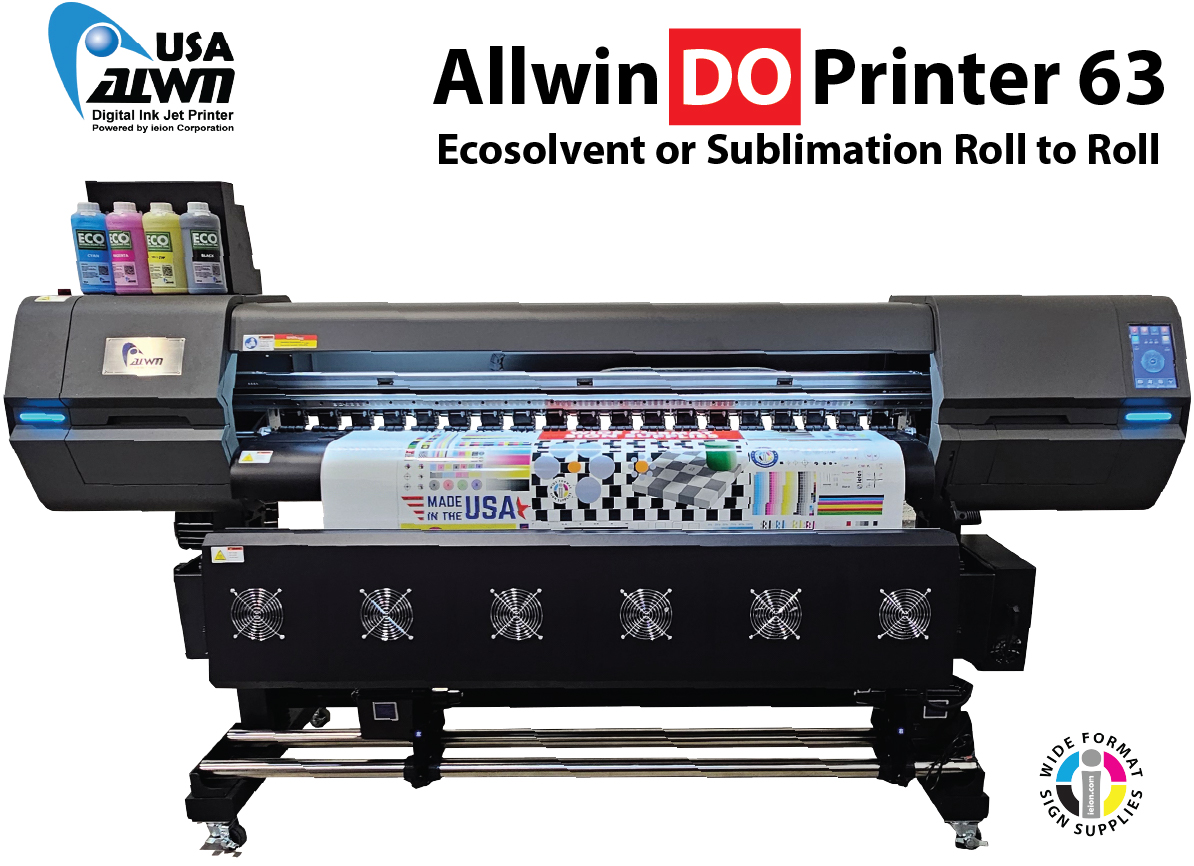

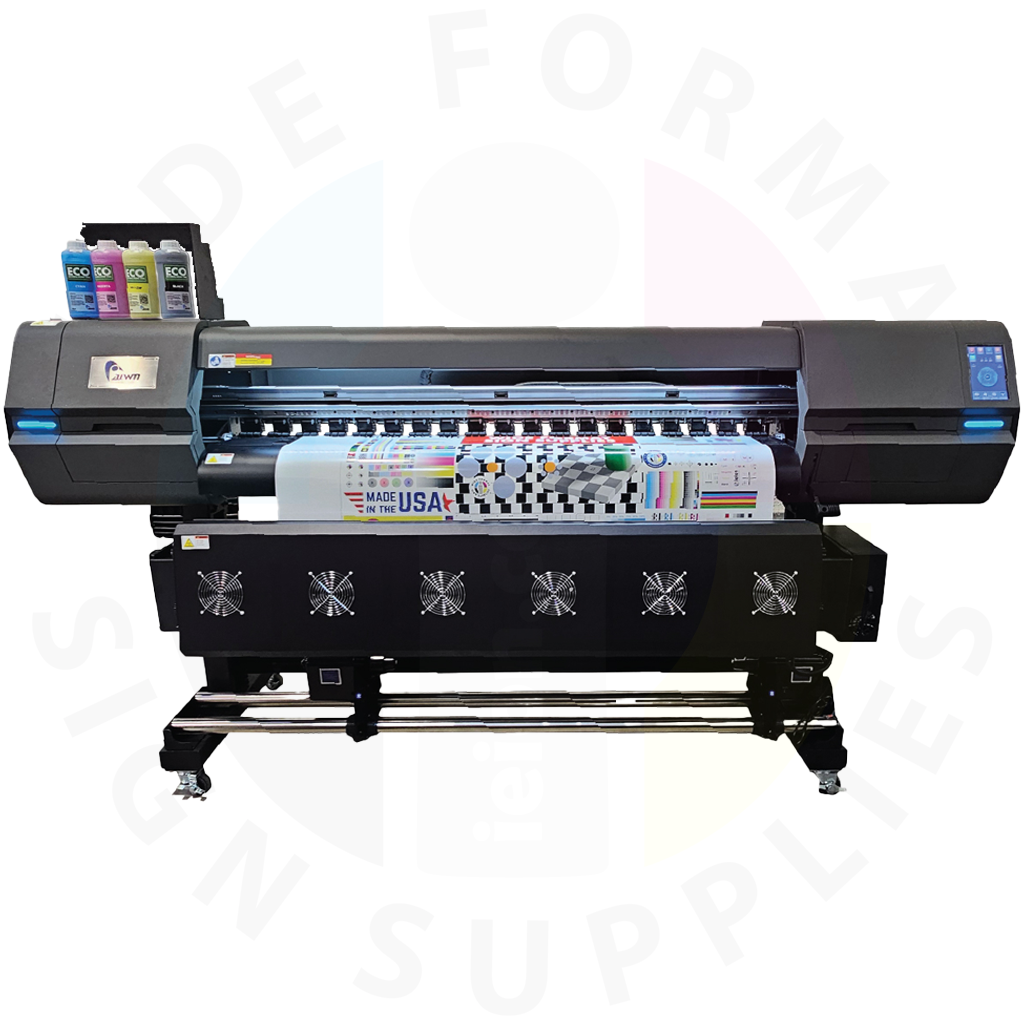

Allwin Printer ECO/SUB DO 63

Specifications:

·       Maximum Print Width: 63 inches (1.6 m)

·       Print Heads: Up to 2 Epson i3200 heads (Heads not included)

·       Ink Type: Eco-solvent or Dye-sublimation

·       Ink System: Open bulk (chip-free), 1.5 L per color

·       Power Supply: 220 V / 3 kVA

·       Technology: Variable dot control, waveform management, nozzle recovery

·       Includes: SAI FlexiPrint RIP software

Highlights:

·       Wide-format output up to 63 inches

·       Dual ink mode for flexible production

·       Chip-free bulk ink system for lower costs

·       Consistent, high-resolution results

·       Durable build with professional-grade components

·       Easy operation and maintenance

Applications and Uses:

·       Large-format signage and display graphics

·       Textile and fabric sublimation printing

·       Vehicle wraps and decals

·       Banners and backlit prints

·       Interior décor and promotional displays

·       High-output commercial printing environments

Printer Size and Weight:

·       Length: 9 ft (108 in / 2.74 m)

·       Width: 3 ft (36 in / 0.91 m)

·       Height: 4 ft (48 in / 1.22 m)

·       Weight: 485 lb (220 kg)

Printer Shipping Information:

·       The Allwin ECO/SUB DO 63 printer measures approximately 9 ft × 3 ft × 4 ft (108 × 36 × 48 in) and weighs 485 lb (220 kg).

·       The fully packaged unit is crated for shipping with dimensions 9 ft 1 in × 2 ft 8 in × 5 ft 5 in (108.8 × 31.9 × 65 in) and a total weight of 772 lb (350 kg).

Recommended Inks:

·       Ecosolvent:
Allwin ECO 1 L Bottle
Bordeaux FUZE MX 1 L Bottle
Bordeaux FUZE MS33 1 L Bottle

·       Sublimation:
Allwin SUB 1 L Bottle
Bordeaux EDEN TX2 1 L Bottle

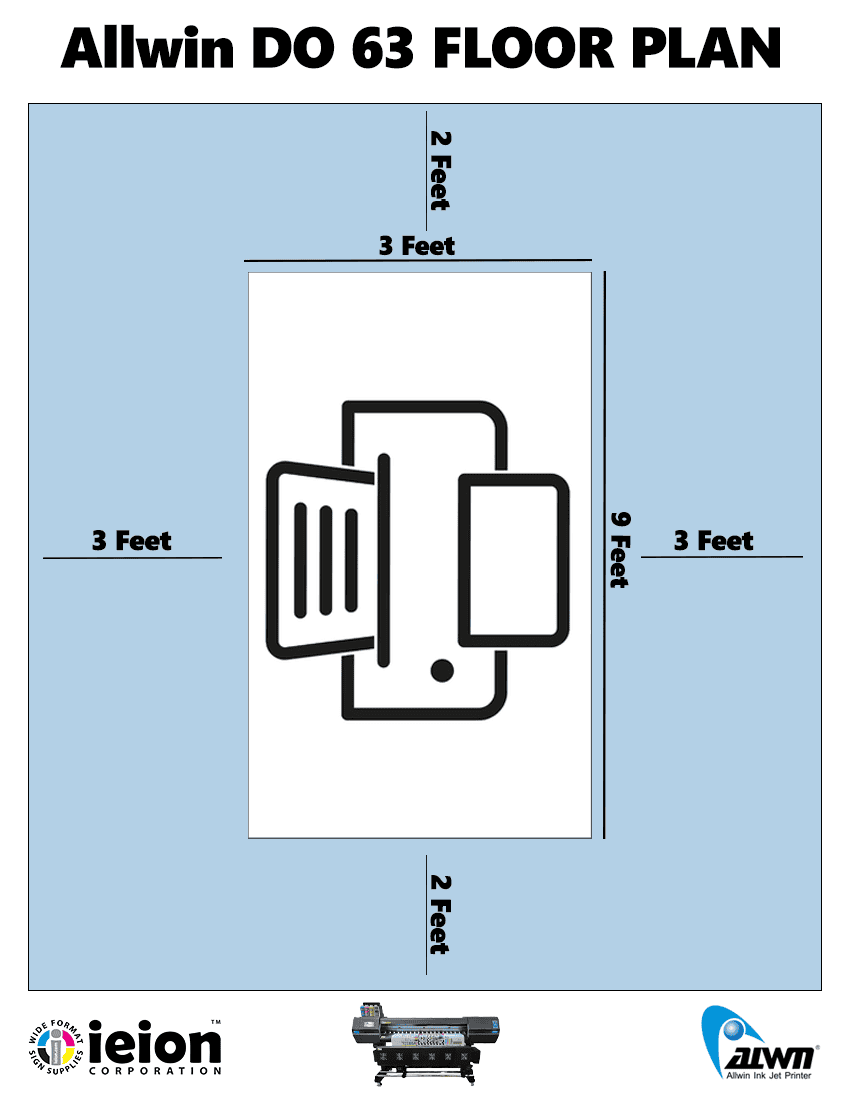

Floor Plan:
