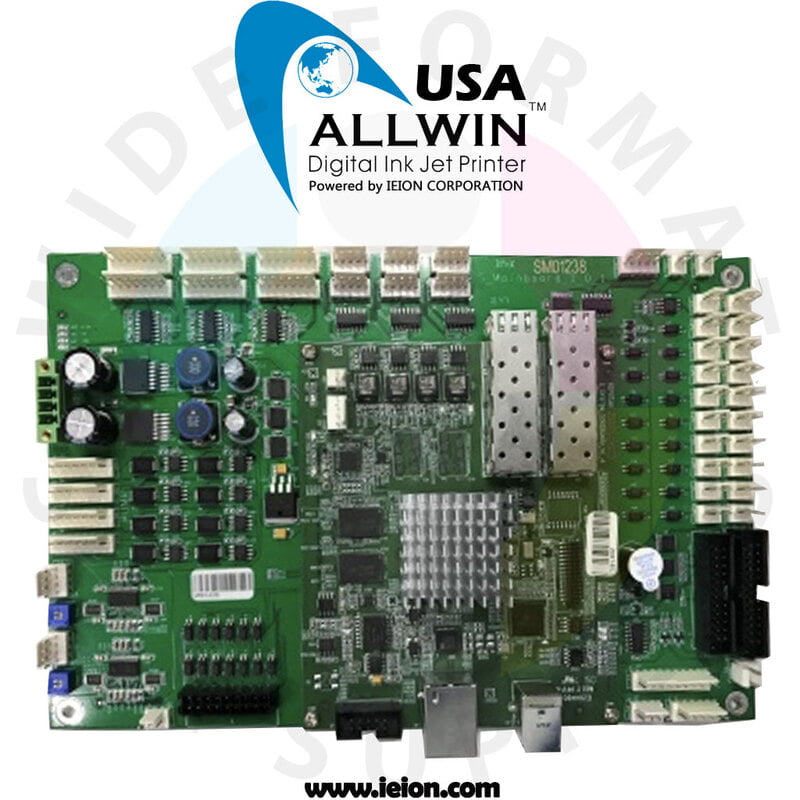

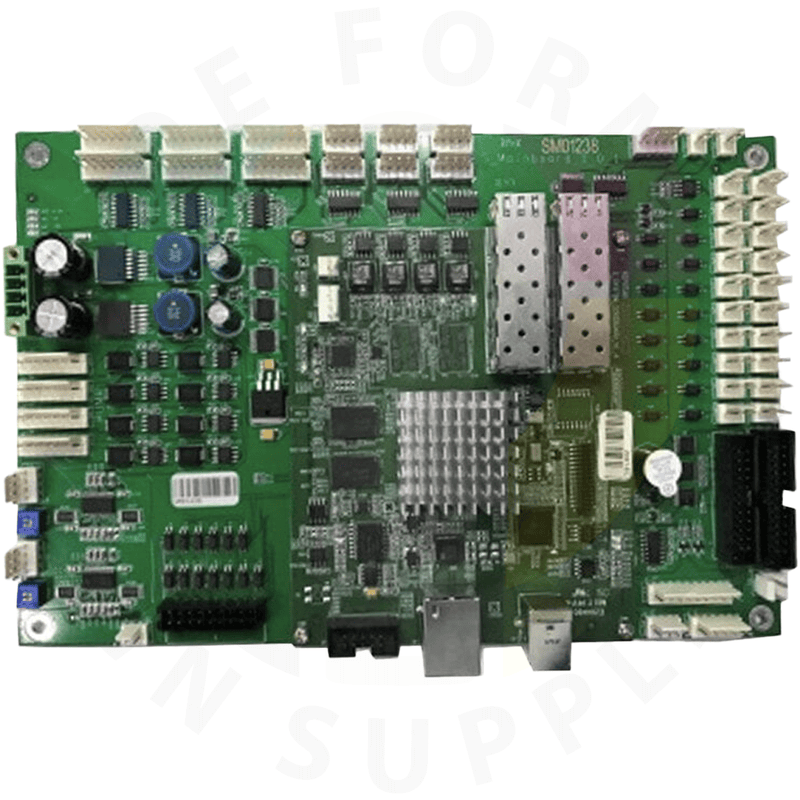

Allwin Board By Epson 4-head 5113 Print head

Specifications

• Compatibility: Epson DX5, DX7, and primarily Epson 5113 (4-head configuration)

• Supported Print Heads: Up to 4 Epson 5113 heads

• Voltage Input: [Insert value, e.g., 24V DC / 36V DC depending on model]

• Communication Interface: High-speed data bus with encoder and motor control integration

• Control Functions: Print timing, head voltage control, nozzle firing control

• Supported Resolutions: Up to 1440 dpi (variable depending on printer software)

• PCB Material: High-quality multi-layer FR-4 board with protective coating

• Firmware: Compatible with Allwin RIP software and print management systems

• Cooling: Integrated heat sink or fan interface for thermal management

• Dimensions: [Insert dimensions if available]

• Compliance: RoHS / CE certified (if applicable)

Highlights

• Optimized for Epson 5113 print head precision and speed

• Supports multi-head synchronous printing without data loss

• Stable ink firing control for consistent image quality

• Easy integration with Allwin printer architecture

• Robust PCB design ensures durability under continuous operation

• Firmware customizable for different ink types and RIP software

Applications and Uses

• Allwin wide-format eco-solvent and solvent printers

• High-speed roll-to-roll banner and vinyl printers

• Textile and sublimation printing systems

• UV flatbed printers (compatible with Epson 5113 heads)

• Multi-color or high-resolution digital printing setups requiring Epson print head control
