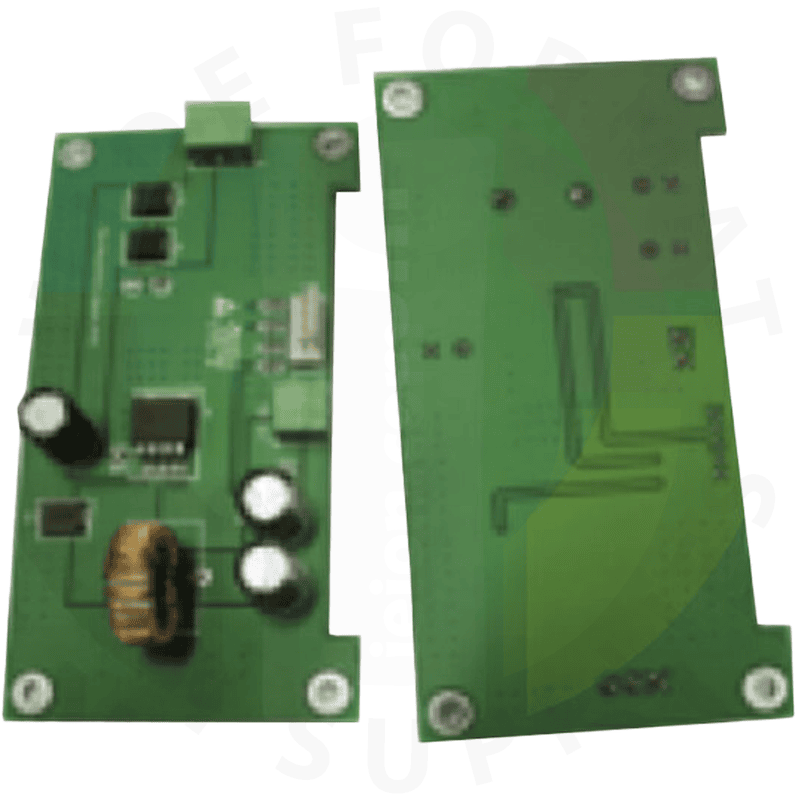

Allwin Board Commonly Used Print head Fan Adjustment V1.0

Specifications:

• Model: Allwin Board V1.0 (with fan adjustment control)

• Supported Print Heads:

  • AW Print Head

  • 4Way DC Print Head

  • Epson DX5 (basic models)

• Fan Control: Adjustable fan speed for print head cooling

• Supported Inks: Solvent / Eco-Solvent

• Color Channels: CMYK (up to 8 channels depending on configuration)

• Max Resolution: Up to 1440 dpi

• Interface: USB 2.0 / Ethernet

• RIP Compatibility: Maintop, Photoprint, Wasatch

• Power Supply: 24V / 36V (external PSU module)

• Operating Voltage (Fan): 12V / 24V fan output with speed regulation

• Control Panel Support: Compatible with Allwin Panel Key

Highlights:

• Built-in print head fan speed adjustment for thermal stability

• Helps prevent ink drying and nozzle clogging during long print runs

• Provides stable control signals for AW and 4Way DC print heads

• Smooth data transfer and ink firing, even at higher speeds

• Ideal for custom-built or budget printers with thermal management needs

• Compatible with industry-standard RIP software

• Simple integration with existing Allwin-based printer systems

Applications & Uses:

• Solvent/eco-solvent printers using AW or 4Way DC heads

• Custom-built printers requiring adjustable head cooling

• Print environments with high ambient temperature or long print cycles

• Entry-level and OEM large-format printers

• Outdoor media production: flex banners, vinyl stickers, mesh, and backlit film

• Maintenance-friendly systems designed for continuous operation
