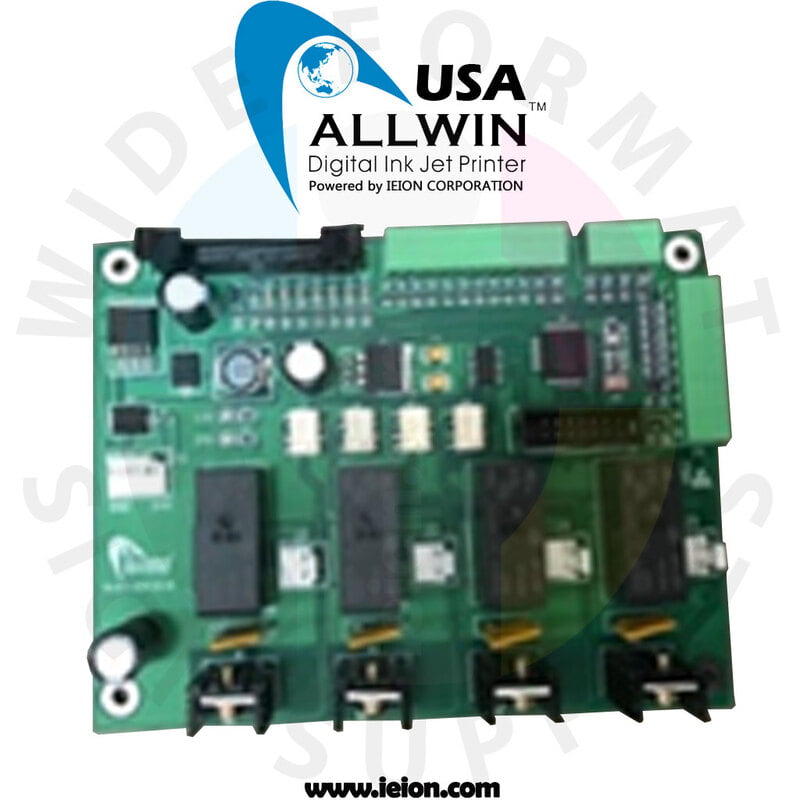

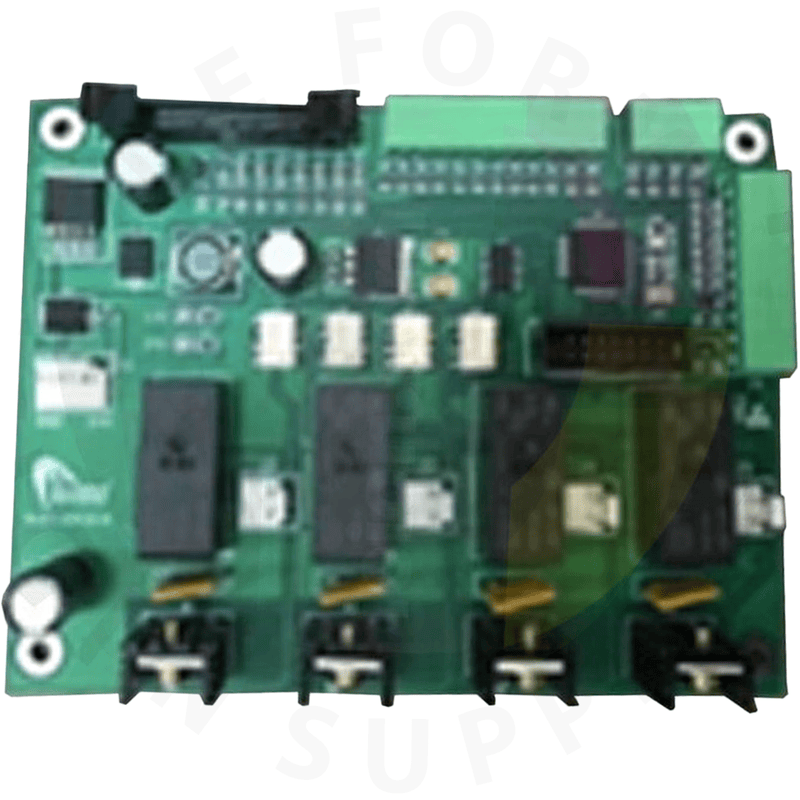

Allwin Board Commonly Used by 4Way DC Print head

Specifications:

• Mainboard Type: Allwin Board (V1.5 / V1.6 / V1.7 series – DC-compatible)

• Print Head Compatibility: 4Way DC print heads (commonly used in Chinese solvent printers)

• Supported Ink Types: Solvent / Eco-solvent

• Print Resolution: Up to 1440 dpi (dependent on head and RIP)

• Color Support: CMYK (4/6/8 color channels based on system setup)

• Interface: USB 2.0 / Ethernet

• Supported Software: Maintop / Photoprint / Wasatch

• Power Supply: 24V / 36V (via external power modules)

• Data Control: High-speed signal processing for multi-head synchronization

• Head Voltage Control: Adjustable via control board settings

Highlights:

• Fully compatible with 4Way DC print heads used in many budget and mid-range solvent printers

• Stable performance in continuous, high-speed printing environments

• Smooth ink firing control and accurate timing signals for better print output

• Supports single or dual-head configurations with scalable setup

• Easy integration with Allwin Panel Key and standard RIP software

• Cost-effective and widely available with reliable aftermarket support

• Supports media types from flex and vinyl to backlit film and mesh

Applications & Uses:

• Solvent and Eco-Solvent Printing Systems

• Entry-Level and Mid-Range Large Format Printers

• Flex Banners, Vinyl Stickers, and Backlit Films

• OEM and Assembled Printers Using 4Way DC Heads

• Print Shops Needing Affordable and Reliable Electronics
