The Allwin BASE 63 is 63 inches (1.6 m) wide eco-solvent or sublimation printer with a 4-color CMYK system, delivering sharp, vibrant prints for vinyl, banners, and other wide-format applications including paper for sublimation. The Epson i3200 print head is not included and must be purchased separately. It comes with the SAI FlexiPrint RIP software.
Available Offer
Specifications
Printhead: 1 Epson-based printhead
Ink Type: Eco-Solvent CMYK (4-Color)
Maximum Print Width: 1.6 m (63 in)
Maximum Media Thickness: Up to 1 mm
Printing Resolution: High-definition variable droplet technology
Interface: USB / Ethernet connection
Power Supply: AC 110–220V, 50/60 Hz
Operation Environment: 20–30 °C / 35–65 % RH
Media Type: Vinyl, banner, photo paper, film, and other coated media
Highlights
High-precision 1-head system with smooth color output
Reliable performance with low maintenance cost
Compact and efficient for small-to-medium print shops
Eco-solvent ink provides vibrant and durable prints
User-friendly control panel and stable feeding system
Supports various media for indoor and outdoor printing
Applications
Banners and signage
Vehicle decals and wraps
Posters and displays
Wall graphics and wallpapers
Promotional materials
Custom labels and stickers
Printer Size & Weight
Dimensions (L × W × H): 2660 × 710 × 1520 mm
≈ 104.7 × 28 × 59.8 inches (8.7 ft × 2.3 ft × 5 ft)Net Weight: 280 kg (≈ 617 lbs)
Shipping Information
Packaged Dimensions (L × W × H): 2710 × 760 × 1600 mm
≈ 106.7 × 29.9 × 63 inchesShipping Weight: 340 kg (≈ 750 lbs)
Notes: Securely crated for transport; forklift or pallet jack recommended for safe unloading and placement.
Recommended Inks

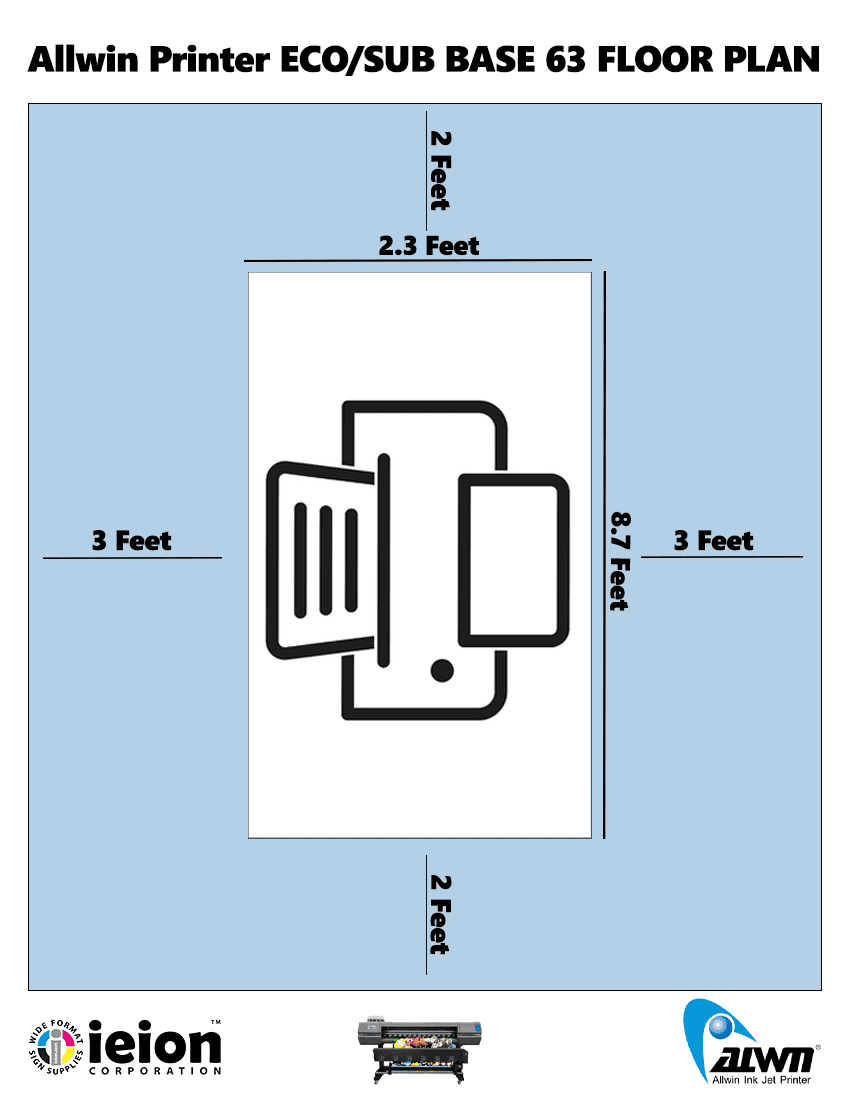

Floor Plan
Printers Specifications
- Printheads:Epson i3200
- Base System:Roll to Roll
- Main feature:Print
- Printing Size:64 in
- Rip Software:SAI Flexi
- Computer Included:No
- Max Media Thickness:1mm
- Max Media Weight:110 lbs
- Ink System:Open
- Power Supply:220v
- Power Consumption:3kVA
- Interface:Ethernet
- Vacuum Table Zones:2
- Adjustable Layout Pins:No
- Waveform control:Yes
- Variable Dot Technology:Yes
- Fine Difussion:Yes
- Ink Circulation:No
- Nozzle Recovery System:Yes
- Printer Ink Base:Solvent
