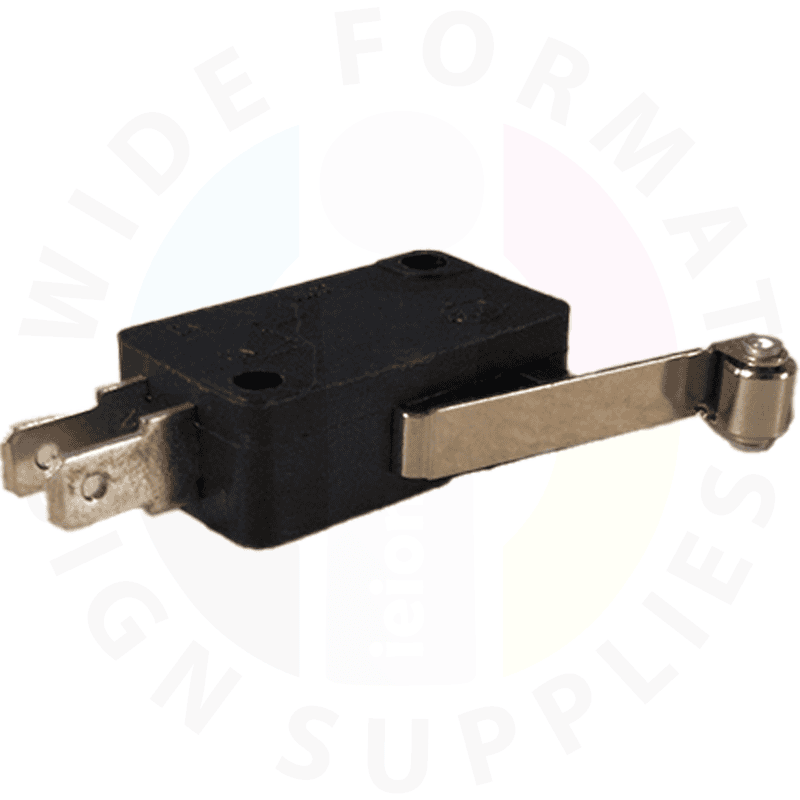

Allwin Sensor Travel Switch

Specifications

• Type: Mechanical limit switch (travel switch)

• Compatibility: Allwin wide-format printers (e.g., DO63)

• Function: Detects the position of moving components to ensure accurate alignment

• Mounting Style: Panel or PCB mount, depending on printer configuration

• Actuation: Mechanical contact-based, activated by movement of printer parts

• Durability: Designed for high-cycle use in industrial printing environments

• Electrical Rating: Suitable for standard printer control circuits (voltage and current ratings vary by model)

• Housing Material: Typically durable plastic or metal housing for protection and longevity

• Operating Temperature Range: Designed to operate within the typical environmental conditions of printing facilities

Highlights

• Ensures precise detection of moving parts for accurate print registration

• Durable construction withstands the rigors of continuous printing operations

• Easy to install and replace, minimizing printer downtime

• Compatible with various Allwin printer models, ensuring versatility

• Helps maintain consistent print quality by ensuring proper alignment

Applications & Uses

• Used in Allwin wide-format printers to detect the position of moving components

• Essential for maintaining accurate print registration and alignment

• Ideal for print shops and service centers performing maintenance or repairs

• Helps reduce print defects caused by misalignment or incorrect positioning

• Suitable for high-volume printing environments where precision is critical
