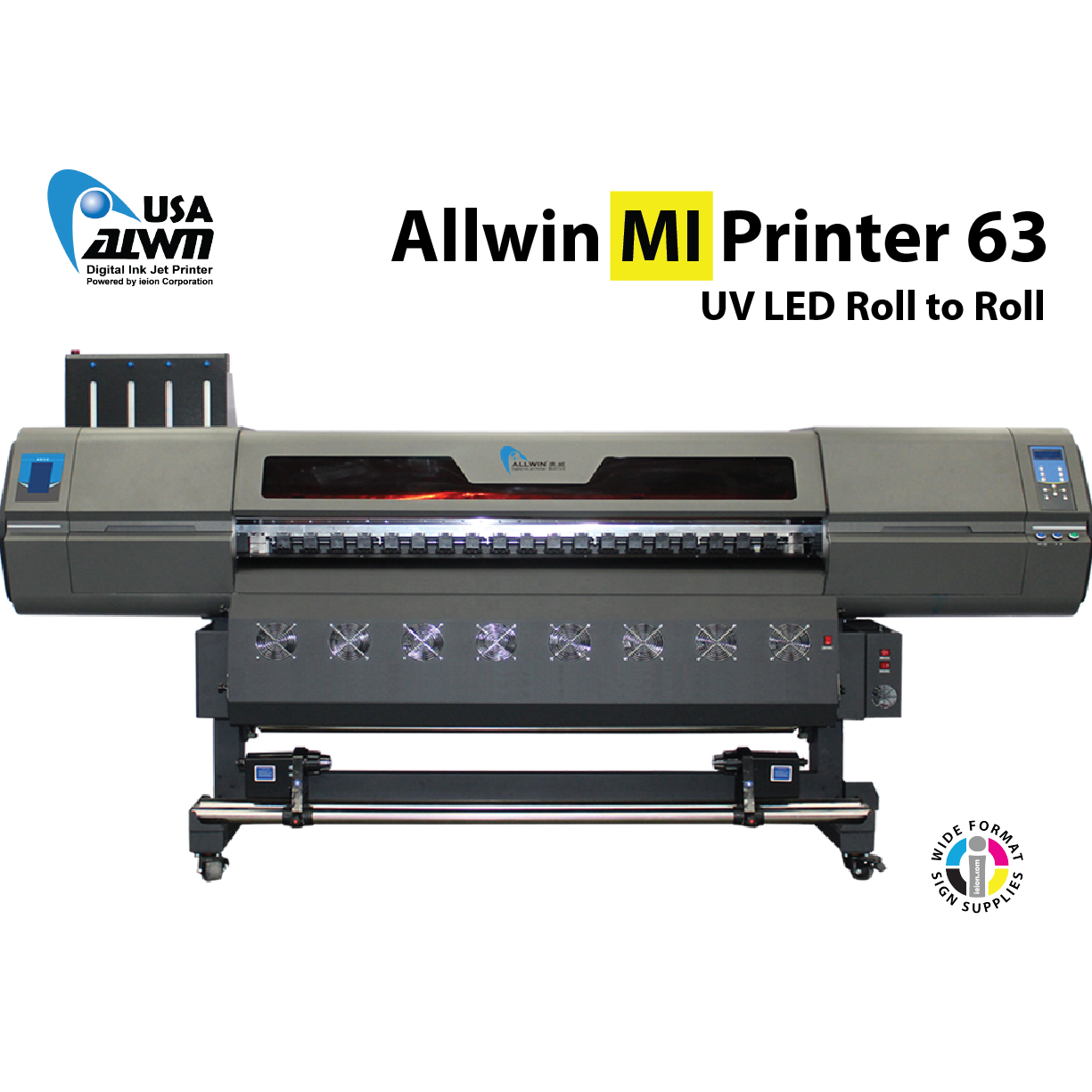

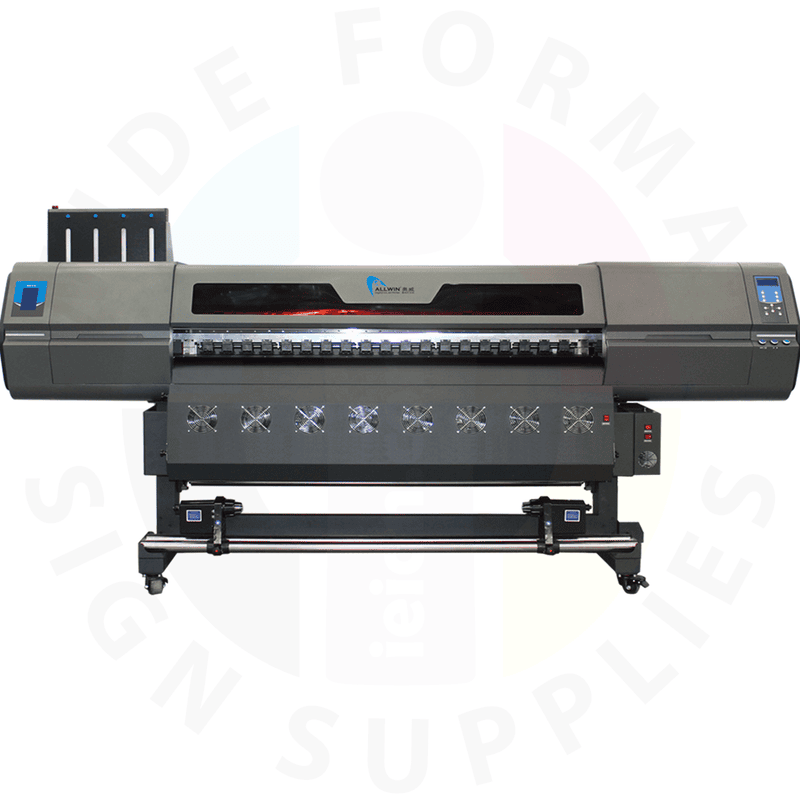

Allwin Printer UV MI 63

Print Head Configuration:

This printer supports up to 4 Epson i3200 print heads (not included), each dedicated to a specific function:

• Print Head A: White

• Print Head B: CMYK

• Print Head C: Optional Varnish

• Print Head D: Optional additional CMYK/White

Note: Print heads are sold separately.

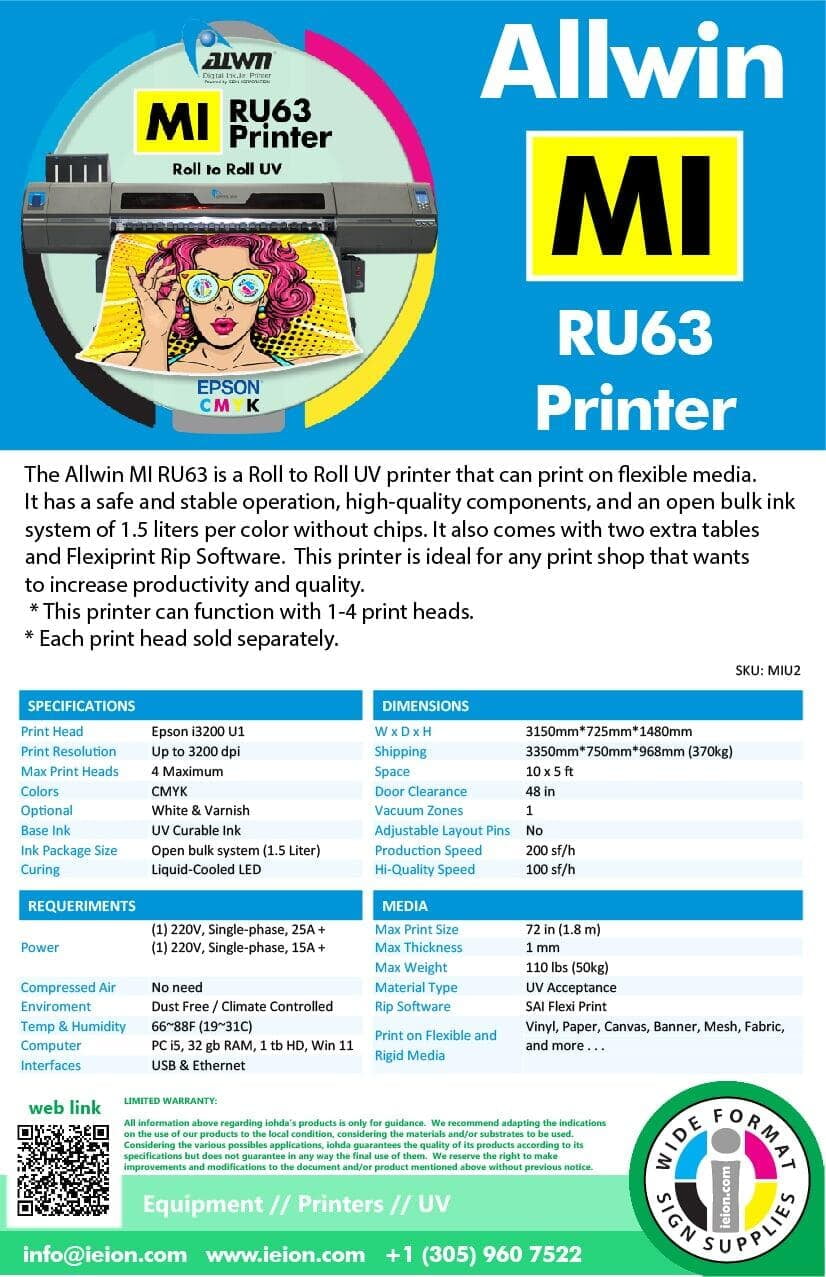

Specifications:

• Print Technology: UV Roll-to-Roll

• Print Width: Up to 63 inches

• Print Heads: Supports 1–4 Epson i3200 (not included)

• Ink System: Open bulk (chip-free), 1.5 L per color

• Media Type: Flexible roll media

• Component Quality: High-quality components throughout

• Power Supply: 220V / 5kVA

• Power Protection: Voltage stabilizer recommended

Highlights:

• Flexible UV printing on roll media with high-quality output

• Open bulk ink system with no chip restrictions

• 1.5 L ink tanks per color for extended production runs

• Scalable print head setup: start with one, expand to four

• High-quality components ensure reliability and long-term performance

Applications and Uses:

• Signage and display graphics

• Banners and backlit prints

• Vehicle wraps and decals

• Interior décor and commercial applications

• Promotional items and custom merchandise

• High-output commercial printing environments

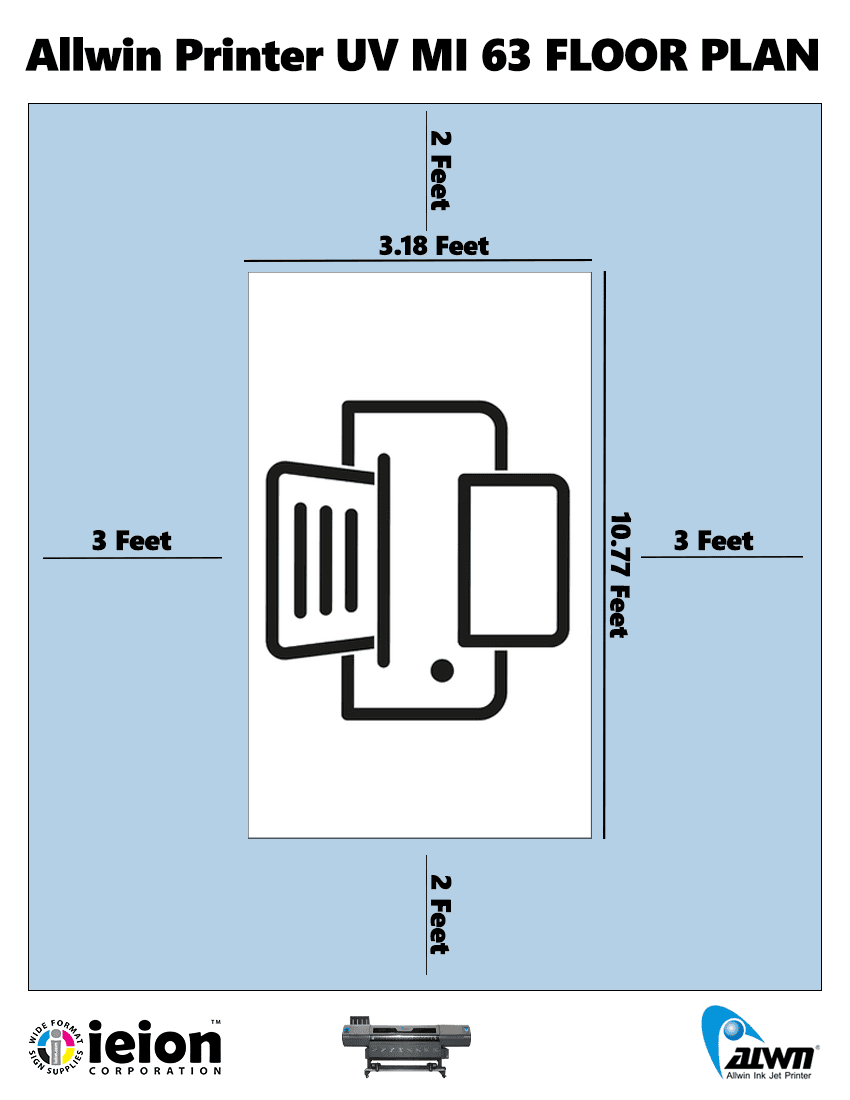

Printer Size and Weight:

• Length: 10.77 ft (3286 mm / 129.4 in / 3.286 m)

• Width: 3.18 ft (970 mm / 38.2 in / 0.97 m)

• Height: 5.66 ft (1725 mm / 67.9 in / 1.725 m)

• Weight: 926 lb (420 kg)

Shipping Information:

• Package Dimensions: 11.48 ft × 3.44 ft × 6.00 ft (3500 × 1050 × 1830 mm / 3.5 × 1.05 × 1.83 m)

• Total Weight: 1080 lb (490 kg)

Recommended Inks:

• Allwin Ink UVE 1 L Bottle
