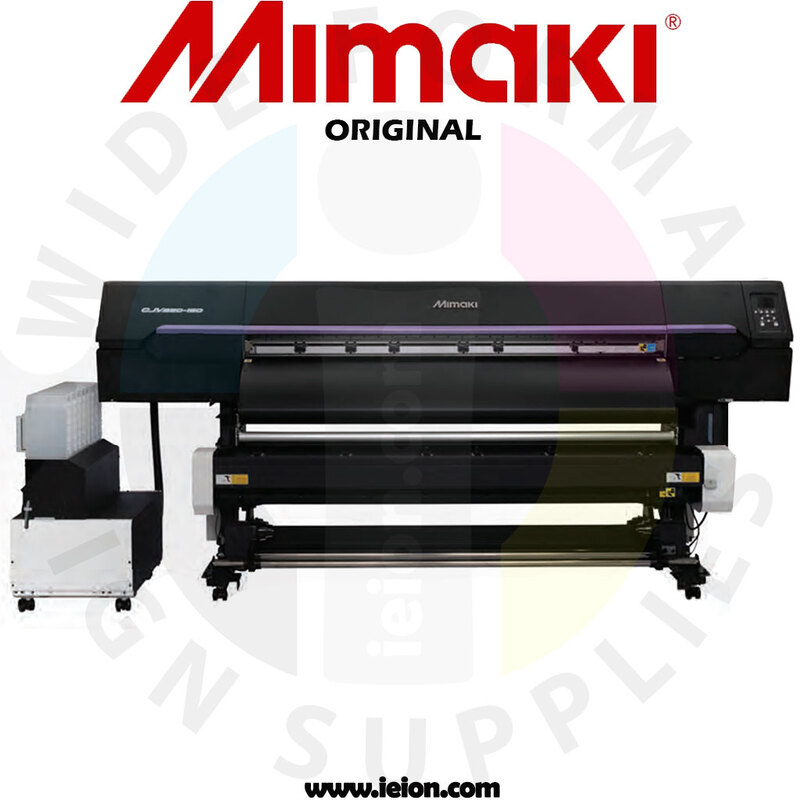

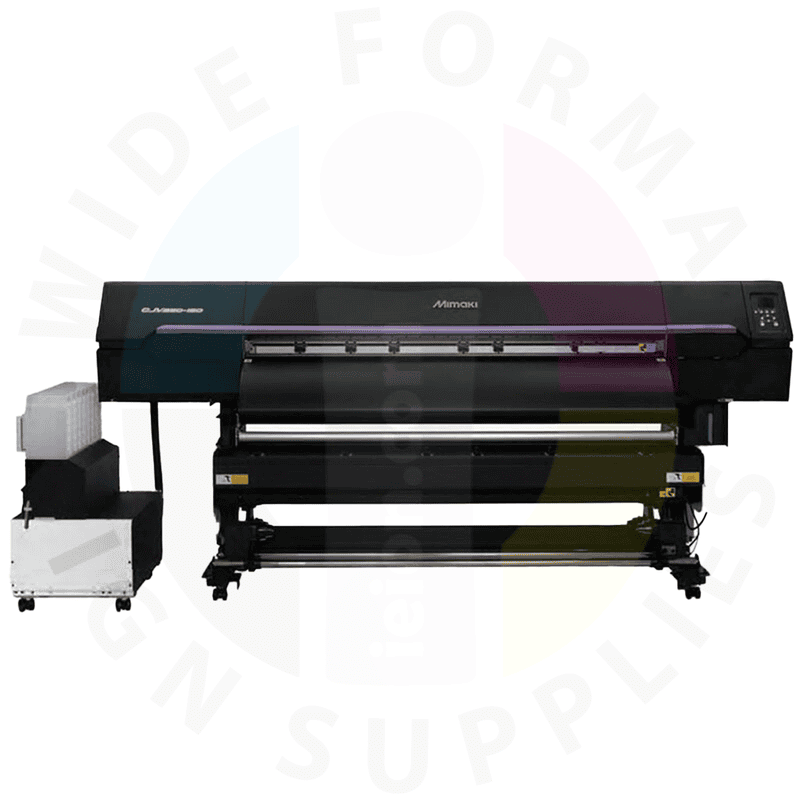

Mimaki Printer and Cutter CJV330-160

Specifications

• Printheads: 2 × On-demand piezo (staggered, 6,400 nozzles)

• Print Resolutions: 600, 800, 900, 1,200 dpi

• Print Speed (4-color Mode): Up to 1,076.4 ft²/h (100 m²/h)

• Maximum Print Area: 53.5″ (1,360 mm) | 63.4″ (1,610 mm)

• Maximum Media Width: 53.9″ (1,370 mm) | 63.8″ (1,620 mm)

• Maximum Media Thickness: Up to 0.04″ (1 mm)

• Maximum Media Weight: One roll: 45 kg (99 lb); Three rolls: 90 kg (198 lb)

• Ink Type: Eco-solvent SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W)

• Interface: Ethernet 1000BASE-T / USB 2.0 Hi-Speed

• Power Supply: AC 100–120 V / 200–240 V ±10％, 50/60 Hz ×2

• Power Consumption: Max. 1,440 W ×2 / Min. 4.5 W (Sleep mode)

• Operational Environment: 20–30 °C, 35–65% RH (non-condensing)

• Recommended Temperature: 20–25 °C

• Certifications: VCCI Class A, FCC Class A, ETL IEC 62368-1, CE, CB, REACH, Energy Star, RCM, EAC, KC, UKCA

• Cutting Speed: Max. 300 mm/s

Highlights

• Integrated printer and cutter for streamlined workflow

• Multiple media roll handling with automated tension and feeding

• XY slitter and V-shaped cutting functions for precise finishing

• On-machine lighting and Mimaki Remote Access for operational convenience

• Two staggered print heads with 6,400 nozzles for high-density printing

• Commercial-grade eco-solvent output for indoor and outdoor applications

• High productivity with print speeds up to 100 m²/h (1,076 ft²/h)

• Advanced Mimaki technologies ensure color consistency and reliability

Applications

• Banners, posters, and signage (indoor and outdoor)

• Vehicle wraps and fleet graphics

• Decals, labels, and stickers

• POP and retail display graphics

• Exhibition and event graphics

• Heat-transfer print-and-cut media

• Short-run packaging and promotional materials

Printer Weight & Size

• Dimensions: 2,920 × 1,215 × 1,305 mm → ~9.58 ft × 3.98 ft × 4.28 ft

• Alternative Size (larger roll config): 3,170 × 1,215 × 1,305 mm → ~10.4 ft × 3.98 ft × 4.28 ft

• Weight: 363–373 kg (~800–822 lb)

• Recommended Clearance: ~11–12 ft width × ~6 ft depth for media handling and operator access

Shipping Information

• Packaged Weight: Slightly higher than operational weight due to crating (~820–840 lb)

• Packaged Dimensions: Estimated 11 ft × 4 ft × 5 ft

Recommended Inks

• Mimaki Ink ECO SS21 440 mL Cartridge

• Mimaki Ink ECO SS21 2 L Bag
• Mimaki SS22 440 mL Cartridges
• Mimaki Ink ECO BS4 600 mL Bag
• Mimaki Ink ECO BS4 2 L Bag

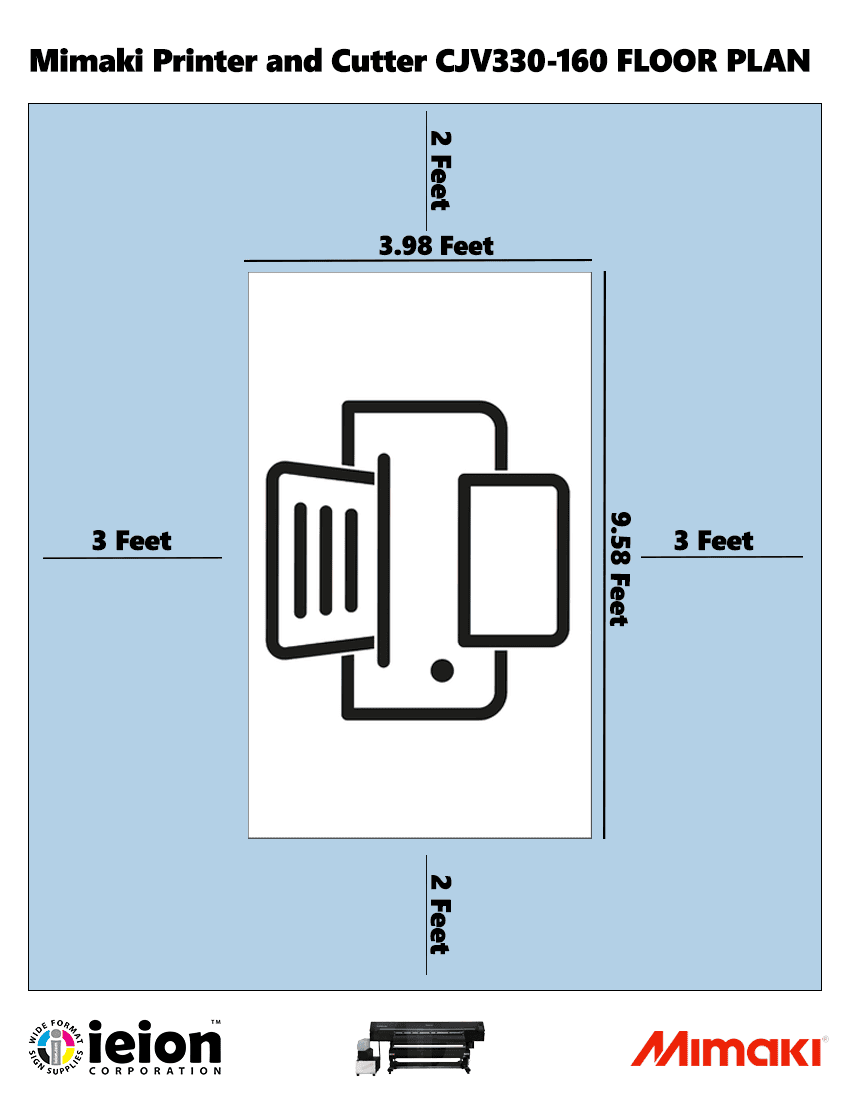

Floor Plan
