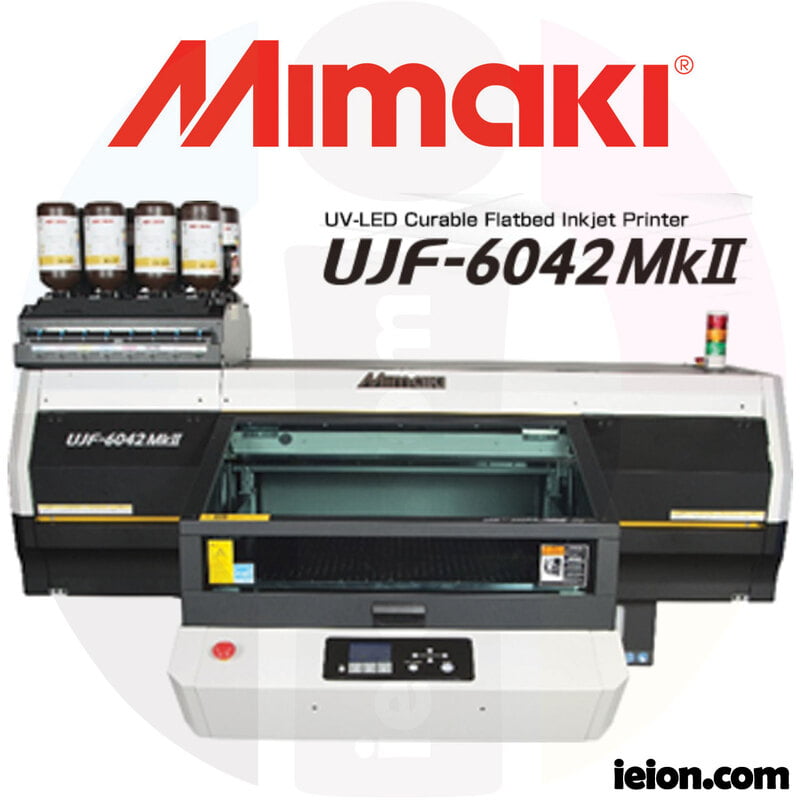

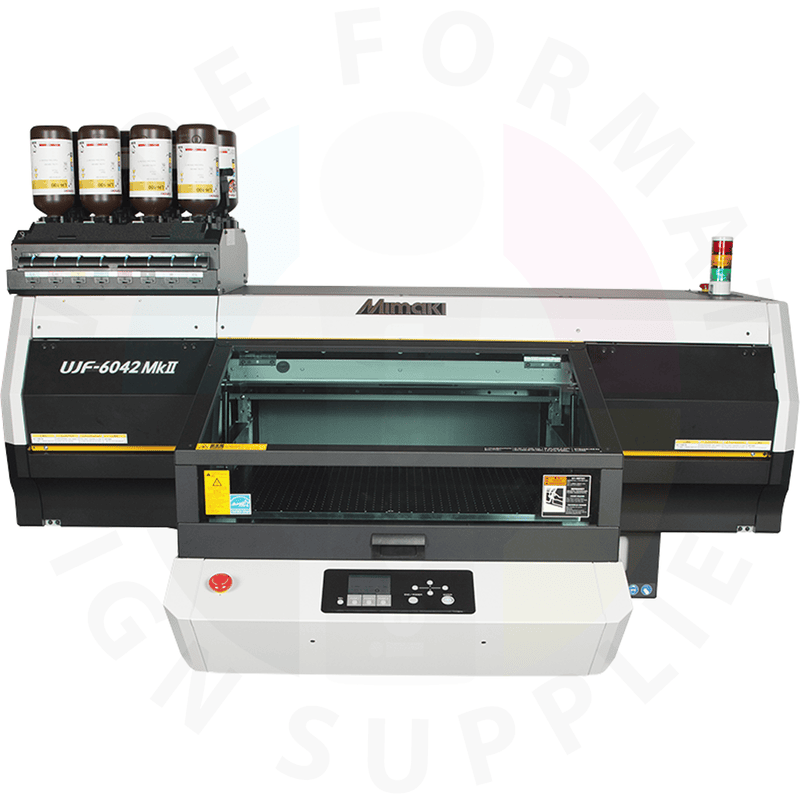

UJF-6042MkII is advanced flatbed UV-curable inkjet printer that create high-value-added product, achieve superior productivity and print quality, and have a greater ability to accommodate a wide range of application.
Available Offer
have a greater ability to accommodate a wide range of application.
- Approximately 20% faster print speed than with conventional models.
The best-in-class productivity delivers effective on-demand print production. - Advanced mechanical structure improves value-added print products
- High-performance inks expand the range of applications
- Clear ink print to represent the texture and to enhance design
- Glossy finish, Matt effect, Embossed print
- 129 types of texture library are ready - Mimaki's unique print-quality management enhances color representation
- Maintenance functions ensure worry-free print operation
Specifications
Printhead Four on-demand piezo heads in a staggered array
Print Resolutions Maximum: 1200 x 1200 dpi
Print Speed (4 Color Mode) up to 7.1 min / bed SqFt/Hr (7.1 min / bed m2/h)
Maximum Print Area 23.6″ x 16.5″ (600 x 420 mm)
Maximum media width 24″ (610 mm)
Maximum Media Thickness up to 6.02″ (153 mm)
Maximum Media Weight 17.1″ (8.0 kg)
Ink Type U.S. & Canada- LH-100, LUS-120, LUS-150 | Mexico, Central & South America- LH-100, LUS-120, LUS-150
Interface Ethernet 1000BASE-T USB2.0 Hi-speed
Power Supply Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
Power Consumption AC100V: 1,000W or less
Operational Environment Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H) 65.6″ x 50.8″ x 33.7″ (166.6 x 129 x 85.6 cm)
Weight 330.7 lbs. (150 kg)
Certifications VCCI class A / FCC class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1
UV curable ink (LH-100) Cyan Magenta Yellow Black White Light Cyan Light Magenta Clear 250ml Bottle I-LH100-C-B2-1 I-LH100-M-B2-1 I-LH100-Y-B2-1 I-LH100-K-B2-1 I-LH100-W-B2-1 I-LH100-LC-B2-1 I-LH100-LM-B2-1 I-LH100-CL-B2-1 1L Bottle LH100-C-BA LH100-M-BA LH100-Y-BA LH100-K-BA LH100-W-BA LH100-LC-BA LH100-LM-BA LH100-CL-BA
UV curable ink (LUS-120) Cyan Magenta Yellow Black White Light Cyan Light Magenta Clear 250ml Bottle I-LUS12-C-B2-1 I-LUS12-M-B2-1 I-LUS12-Y-B2-1 I-LUS12-K-B2-1 I-LUS12-W-B2-1 I-LUS12-LC-B2-1 I-LUS12-LM-B2-1 I-LUS12-CL-B2-1 1L Bottle LUS12-C-BA LUS12-M-BA LUS12-Y-BA LUS12-K-BA LUS12-W-BA LUS12-LC-BA LUS12-LM-BA LUS12-CL-BA
UV curable ink (LUS-150) Cyan Magenta Yellow Black White 1L Bottle LUS15-C-BA LUS15-M-BA LUS15-Y-BA LUS15-K-BA LUS15-W-BA
UV Primer (PR-200) Primer 250ml Bottle PR200-Z-BA 1L Bottle PR200-Z-BA

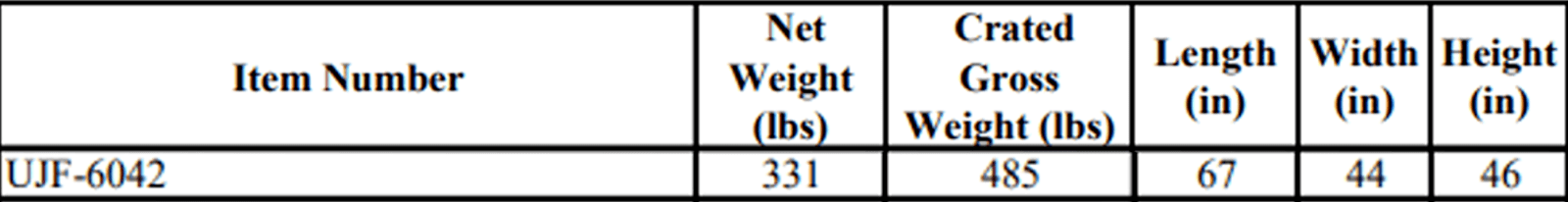

Mimaki UJF-6042 Sizes and Weight
| Printhead | Four on-demand piezo heads in a staggered array |
| Print Resolutions | Maximum: 1200 x 1200 dpi |
| Print Speed (4 Color Mode) | up to 7.1 min / bed SqFt/Hr (7.1 min / bed m2/h) |
| Maximum Print Area | 23.6″ x 16.5″ (600 x 420 mm) |
| Maximum media width | 24″ (610 mm) |
| Maximum Media Thickness | up to 6.02″ (153 mm) |
| Maximum Media Weight | 17.1″ (8.0 kg) |
| Ink Type | U.S. & Canada- LH-100, LUS-120, LUS-150 | Mexico, Central & South America- LH-100, LUS-120, LUS-150 |
| Interface | Ethernet 1000BASE-T USB2.0 Hi-speed |
| Power Supply | Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz |
| Power Consumption | AC100V: 1,000W or less |
| Operational Environment | Temperature 68° – 86° F (20-30° C) |
| Dimensions (W × D × H) | 65.6″ x 50.8″ x 33.7″ (166.6 x 129 x 85.6 cm) |
| Weight | 330.7 lbs. (150 kg) |
| Certifications | VCCI class A / FCC class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1 |
| UV curable ink (LH-100) | Cyan | Magenta | Yellow | Black | White | Light Cyan | Light Magenta | Clear | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | I-LH100-C-B2-1 | I-LH100-M-B2-1 | I-LH100-Y-B2-1 | I-LH100-K-B2-1 | I-LH100-W-B2-1 | I-LH100-LC-B2-1 | I-LH100-LM-B2-1 | I-LH100-CL-B2-1 | ||
| 1L Bottle | LH100-C-BA | LH100-M-BA | LH100-Y-BA | LH100-K-BA | LH100-W-BA | LH100-LC-BA | LH100-LM-BA | LH100-CL-BA |
| UV curable ink (LUS-120) | Cyan | Magenta | Yellow | Black | White | Light Cyan | Light Magenta | Clear | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | I-LUS12-C-B2-1 | I-LUS12-M-B2-1 | I-LUS12-Y-B2-1 | I-LUS12-K-B2-1 | I-LUS12-W-B2-1 | I-LUS12-LC-B2-1 | I-LUS12-LM-B2-1 | I-LUS12-CL-B2-1 | ||
| 1L Bottle | LUS12-C-BA | LUS12-M-BA | LUS12-Y-BA | LUS12-K-BA | LUS12-W-BA | LUS12-LC-BA | LUS12-LM-BA | LUS12-CL-BA |
| UV curable ink (LUS-150) | Cyan | Magenta | Yellow | Black | White | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1L Bottle | LUS15-C-BA | LUS15-M-BA | LUS15-Y-BA | LUS15-K-BA | LUS15-W-BA |
| UV Primer (PR-200) | Primer | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | PR200-Z-BA | |||||||||
| 1L Bottle | PR200-Z-BA |
Equipment Type
- Equipment Type:Printers
Printers Specifications
- Printheads:Ricoh Gen5
- Base System:Flatbed
- Main feature:Print
- Printing Size:2x1.4
- Rip Software:Rasterlink
- Computer Included:No
- Max Media Weight:110 lbs
- Ink System:Fix with Chips
- Power Supply:220v
- Power Consumption:3kVA
- Interface:USB 3.0
- Vacuum Table Zones:1
- Adjustable Layout Pins:No
- Waveform control:Yes
- Variable Dot Technology:Yes
- Fine Difussion:Yes
- Ink Circulation:Yes
- Nozzle Recovery System:Yes
- Printer Ink Base:UV
