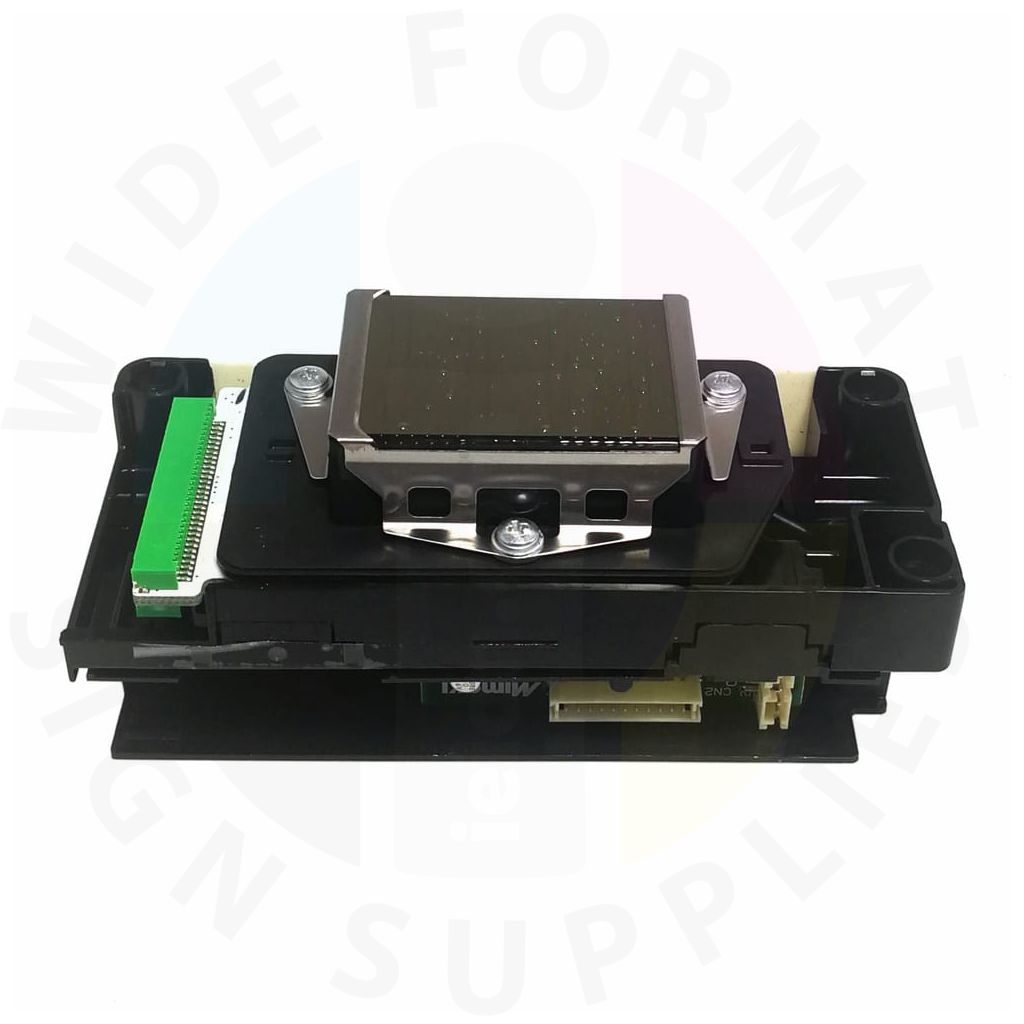

Mimaki Print head DX5 Assy

The Mimaki JV33/JV5 printhead has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line.

The printhead is either used in 4-colors or 6-colors and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz.

This product is a new generation printhead that allows for faster speed, high resolution printing with eco-solvent and mild solvent inks. The original and complete Mimaki JV33/JV5 printhead is delivered in a sealed Mimaki package, with the Head ID and the Head Memory Board.

The Mimaki part number for this print head is M007947.

Product Specifications

• Technology: Micro-Piezo

• Native resolution: 1440 dpi

• Min. Droplet Size: 1.5 pico litre

• Max. Droplet Size: 21 pico litre

• Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)

• Firing Frequency: 8 kHz

• Ink Compatibility: eco-solvent and mild solvent

It is highly recommended to replace the head cables together with a new printhead.

Printer Compatibility:

CJV30-100 CJV30-100BS CJV30-130 CJV30-130BS CJV30-160 CJV30-160BS CJV30-60 CJV30-60BS JV33-130 JV33-130BS JV33-160 JV33-160BS JV33-260 JV33-260BS JV5-130S JV5-160S JV5-260S JV5-320DS JV5-320S

The heads are original and tested by the factory prior to shipment. They do not have a guarantee due to the large number of variables that may affect them during the installation.
