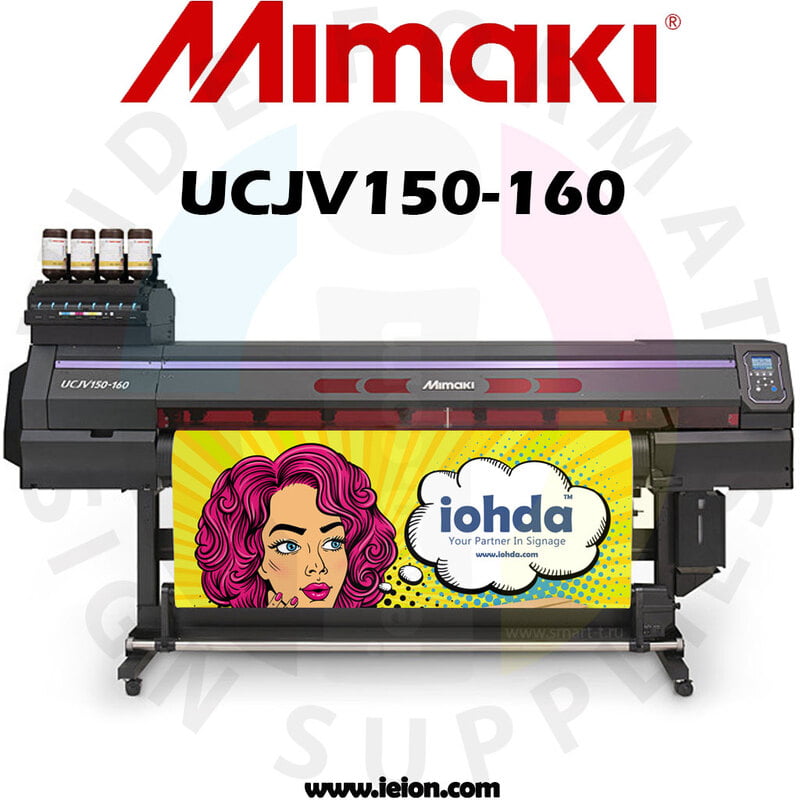

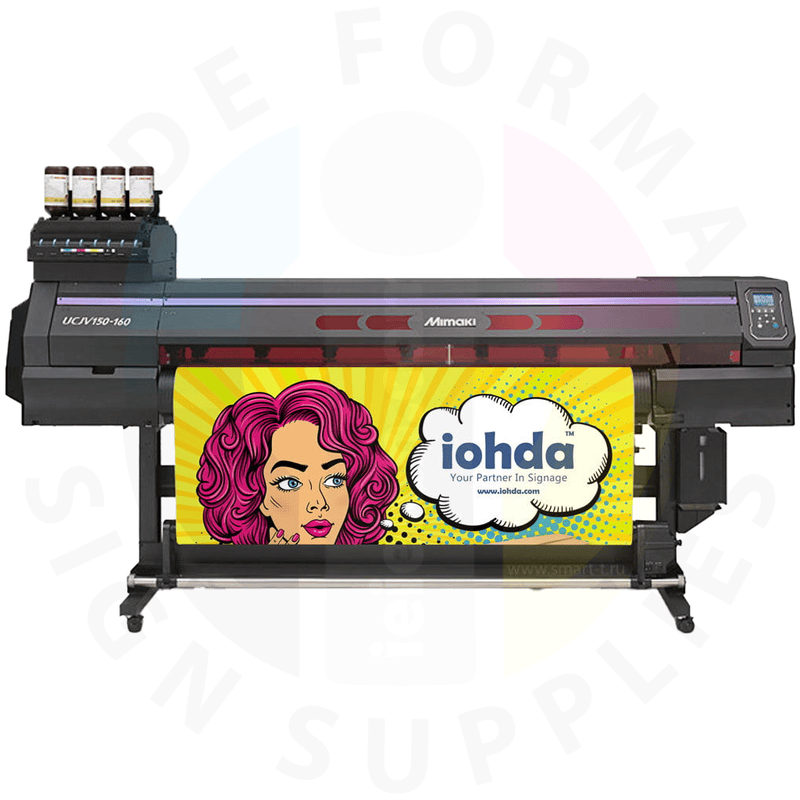

Mimaki Printer and Cutter UCJV150-160 LED UV

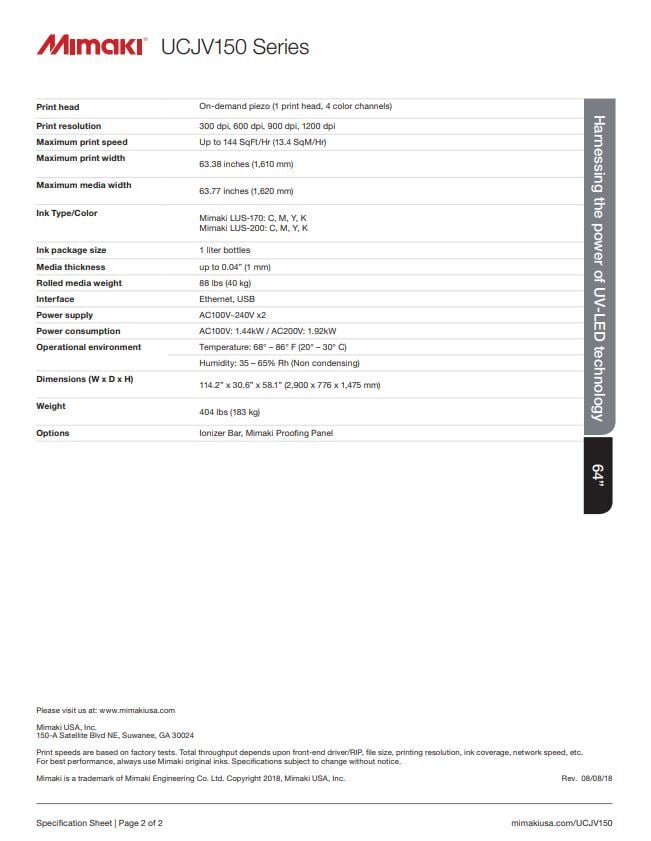

Specifications

• Print Technology: UV-LED curing

• Print & Cut Function: Integrated print-and-cut system

• Print Width: Up to 63 in (1,610 mm)

• Printhead Type: Piezoelectric drop-on-demand

• Maximum Resolution: Up to 1200 dpi

• Ink Type: UV-LED (CMYK + White optional)

• Cutting Method: Drag-knife contour cutting

• Max Media Thickness: Up to 1.0 mm

• Interface: USB / Ethernet

• Power Supply: AC 100–240V, 50/60Hz

• Operating Environment: 20–30°C / 35–65% RH

Highlights

• Instant UV-LED curing for fast and efficient output

• Integrated printing and cutting in one device

• White ink expands versatility for clear or colored media

• Low-heat LED curing reduces material limitations

• Long-lasting, scratch-resistant UV prints

• Sharp details and strong color reproduction

• Energy-efficient, low-maintenance system

Applications

• Stickers and labels

• Window graphics

• Backlit and frontlit displays

• Packaging prototypes

• POP and retail signage

• Custom decals and contour-cut graphics

• Indoor & outdoor promotional prints

Printer Size & Weight

• Dimensions (L × W × H): 2900 × 776 × 1475 mm
  ≈ 114.2 × 30.5 × 58.1 inches
  ≈ 9.5 ft × 2.5 ft × 4.8 ft

• Net Weight: 404 lbs
  ≈ 183 kg

Shipping Information

• Packaged Dimensions: Approx. 3000 × 900 × 1650 mm
  ≈ 118 × 35 × 65 inches

• Shipping Weight: Approx. 500–540 lbs
  (accounts for crate, padding, and reinforcement)

• Securely crated for forklift or pallet-jack handling

Recommended Inks

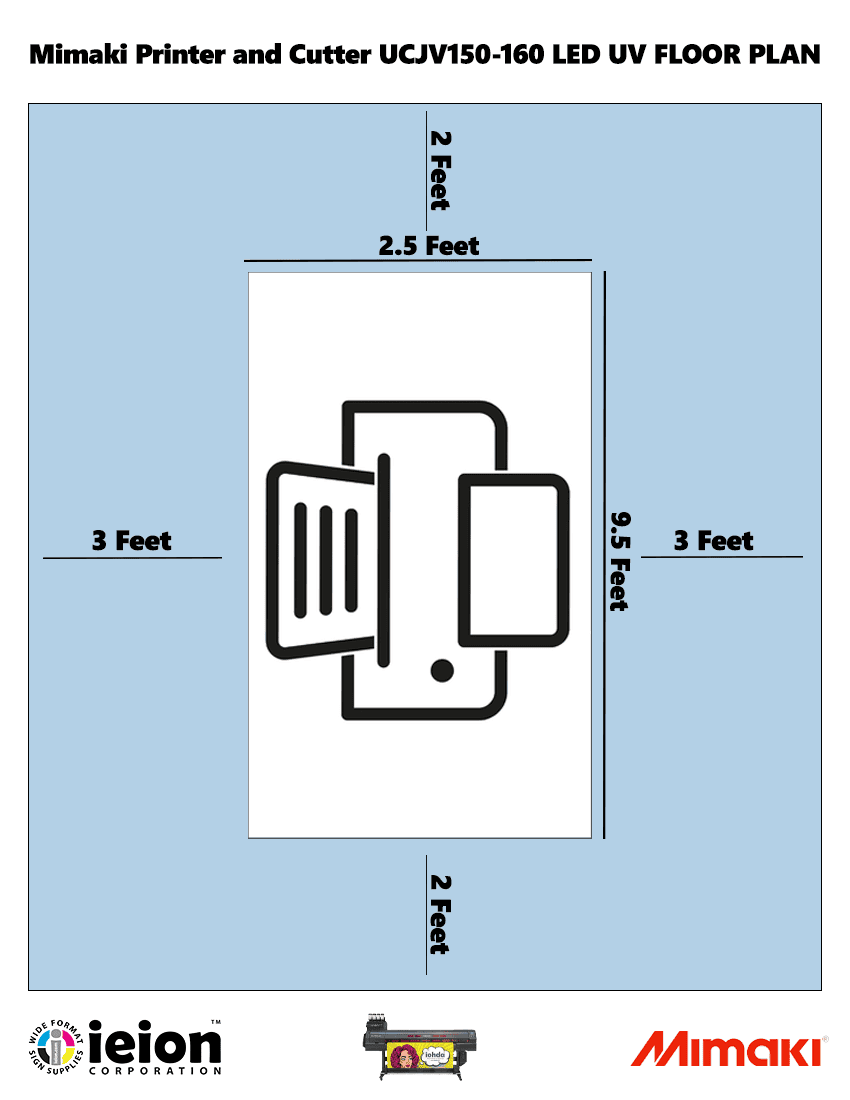

Floor Plan
