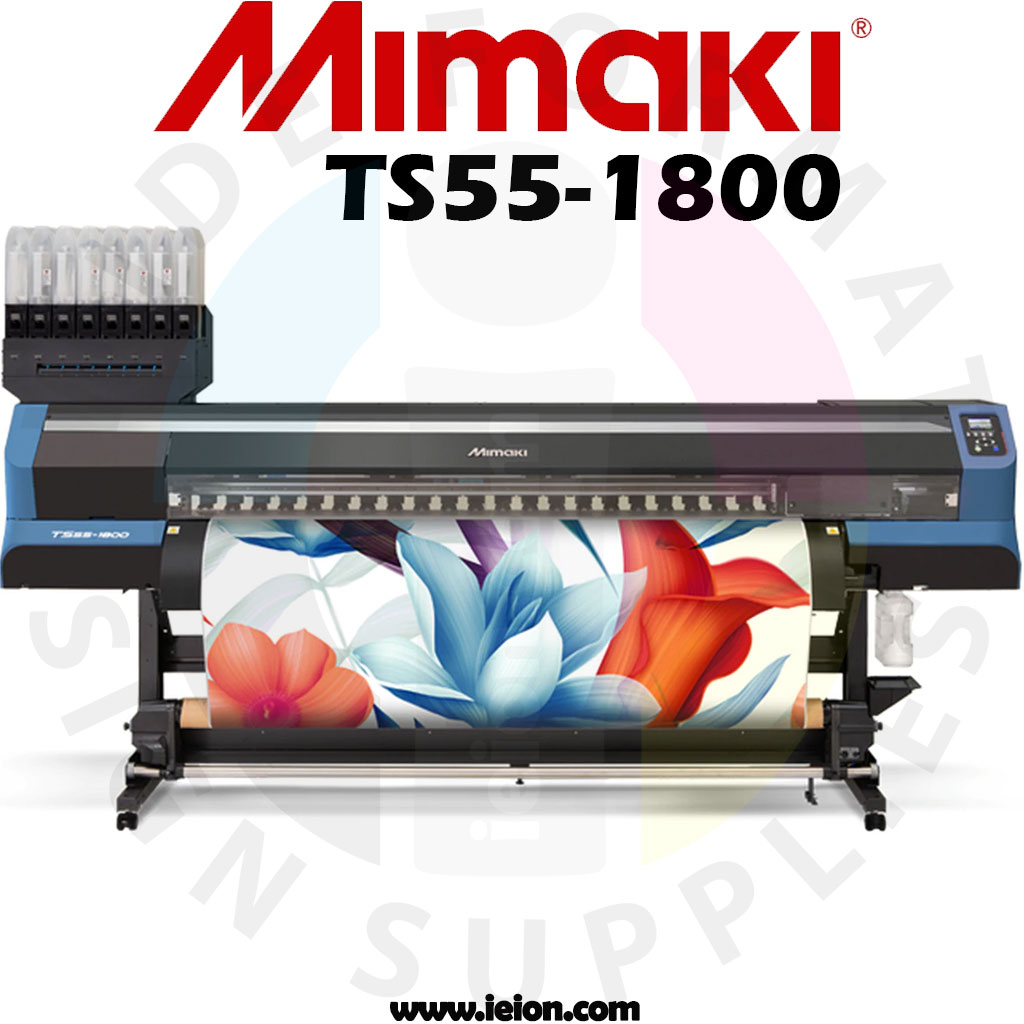

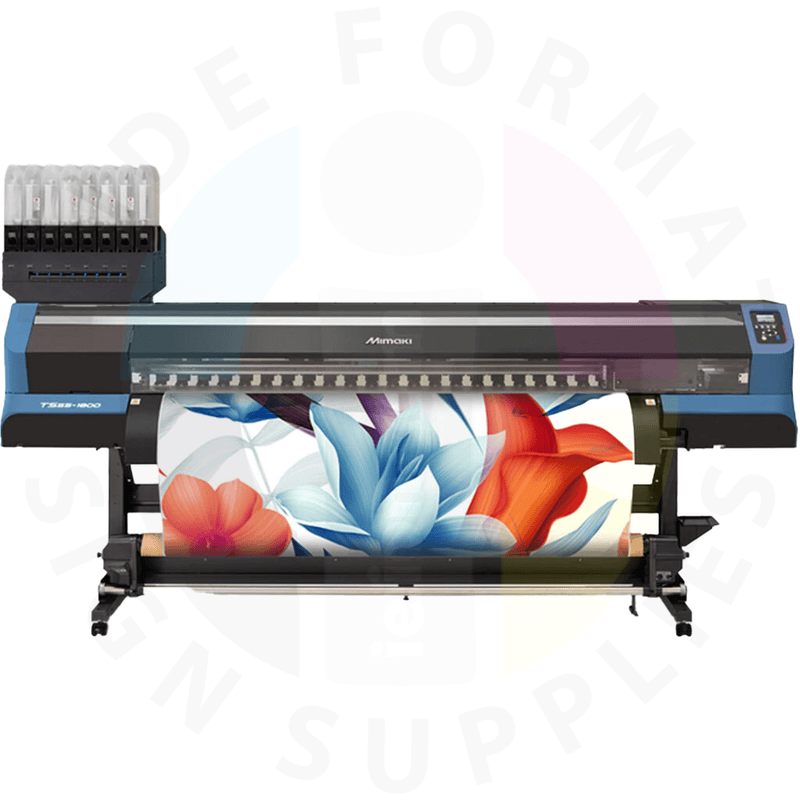

Mimaki Printer TS55-1800-SA-STD-WO

Specifications

• Print Technology: Dye-sublimation transfer

• Print Width: 1,940 mm (76.4 in)

• Max Media Width: 1,950 mm (76.8 in)

• Print Resolutions: 480 / 600 / 1,200 dpi

• Ink Type: Sb610 dye-sublimation ink

• Ink Configuration: Up to 8 colors

• Ink Capacity: 2 L packs (optional 10 kg bulk system)

• Max Roll Weight: 45 kg

• Interface: Ethernet and USB

• Power Requirements: Single phase 100–120 V or 200–240 V

• Power Consumption: Up to approx. 1.9 kW

• Operating Environment: 68–86°F (20–30°C), 35–65% RH

Highlights

• High-speed industrial production capability

• MAPS technology minimizes banding

• Optional Mini Jumbo Roll Unit for extended print runs

• Optional 10 kg bulk ink supply for reduced cost per print

• Stable feeding system for heavy transfer rolls

• Optimized for continuous, high-volume output

Applications

• Apparel and sportswear

• Fashion textile printing

• Interior décor fabrics

• Curtains, upholstery, and tapestries

• Flags and soft signage

• Roll-to-roll textile production

Printer Weight & Size

• Dimensions (W × D × H): 3,240 × 713 × 1,857 mm

• Dimensions (Inches): 127.5″ × 28.0″ × 73.1″

• Dimensions (Feet): 10.63 ft × 2.33 ft × 6.09 ft

• Weight: 202 kg / 445 lbs

Shipping Information

• Weight: Approximately 600–700 lbs

• Size: Approximately 12–13 ft (W) × 3–4 ft (D) × 6–7 ft (H)

Recommended Inks

• Mimaki Ink SUB SB610 1 L Bottle

• Mimaki SB610 2 Liter Bags W/C

• Mimaki SB610 10 Liter Bottle W/C

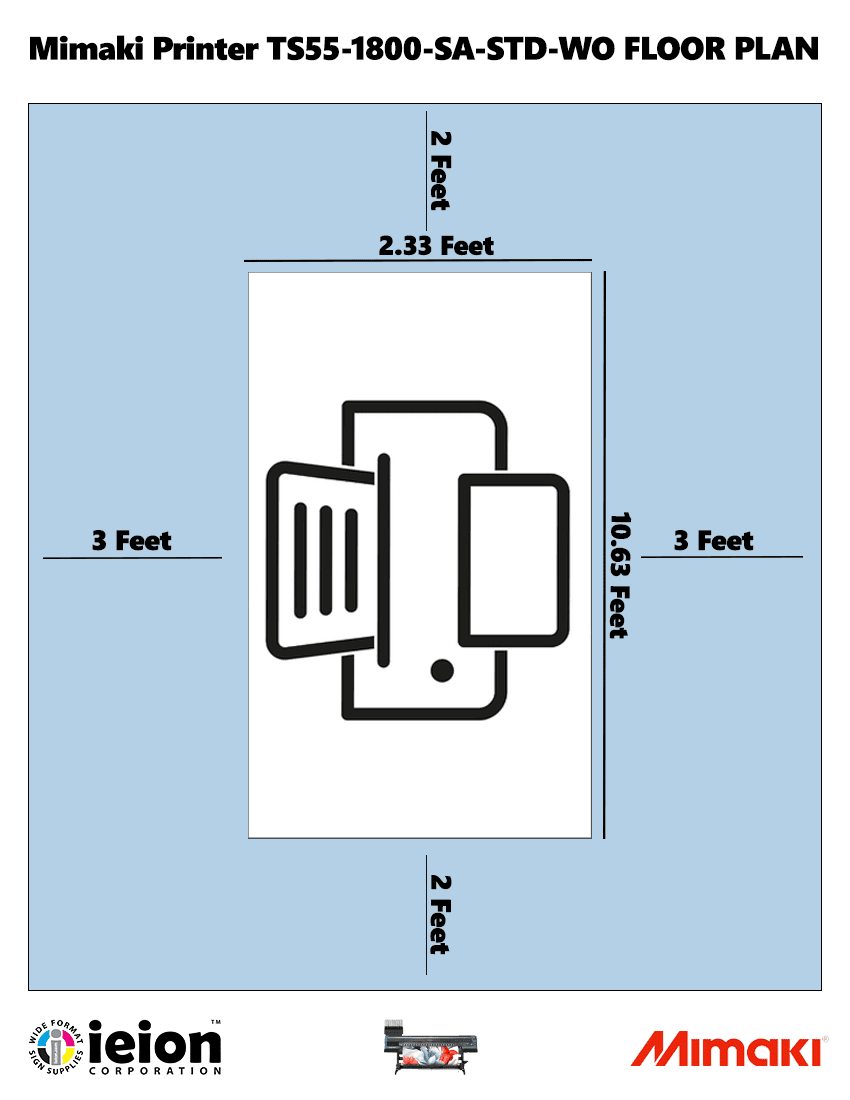

Floor Plan
