Mimaki Sensors Paper Width JV5

Specifications

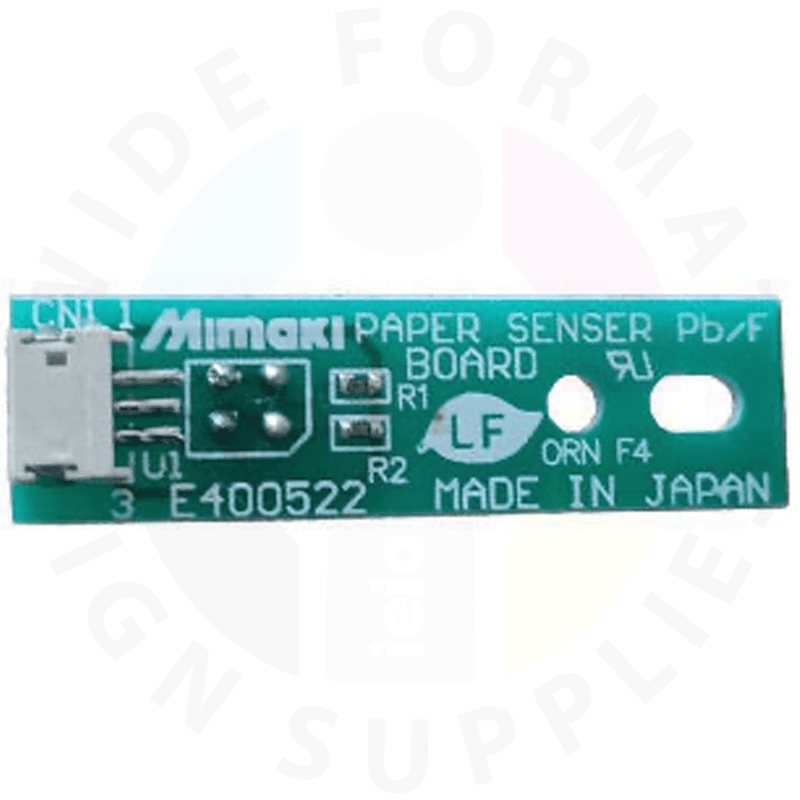

• Product Name: Paper Width Sensor PCB

• Type: Printed Circuit Board (Sensor)

• Function: Detects media width and assists in feed alignment

• Compatibility:

  • Mimaki JV5 Series: JV5-130S, JV5-160S, JV5-260S, JV5-320DS, JV5-320S

  • TS5-1600AMF

Highlights

• OEM Quality providing precise fit and dependable performance

• Accurate Media Detection ensures correct width measurements for optimal print registration

• Easy Replacement—ideal part for maintenance when feed errors or misalignment issues occur

• Versatile Compatibility across multiple JV5 and TS5 models

Applications & Uses

• Media Width Detection: Positioned at the printer's roll feed to measure media width and guide alignment systems

• Automatic Feed Adjustment: Enables printer to adjust feed and prevent skew or misalignment

• Troubleshooting & Maintenance: Replaces faulty sensors responsible for media width errors or misfeeds

• Critical in Regular Operations: Ideal for service technicians ensuring consistent and accurate feeding in high-volume print shops
