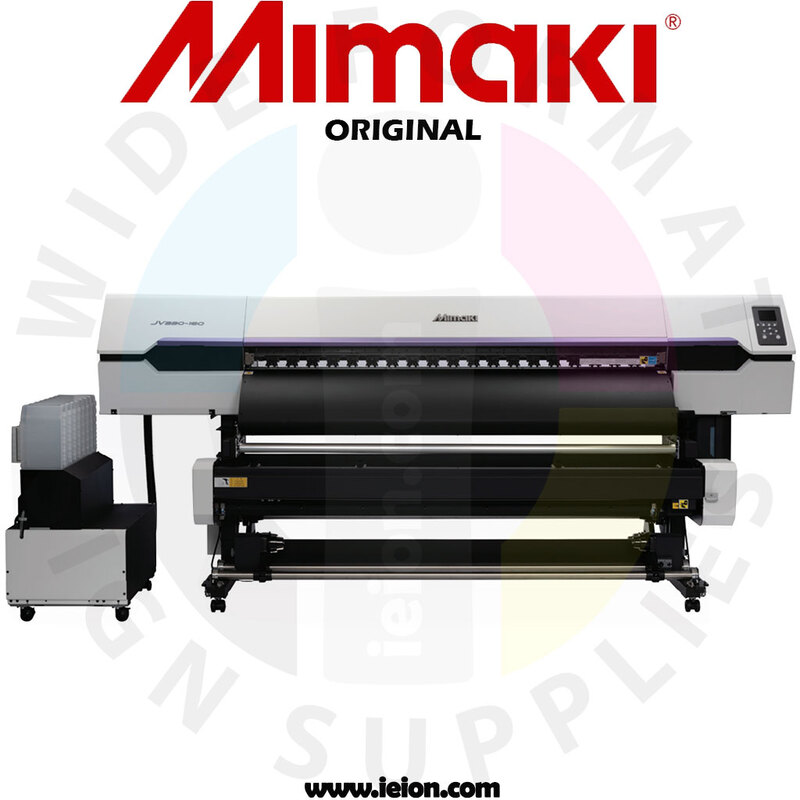

Mimaki Printer JV330-130

Specifications

• Printheads: 2 × On-demand piezo (staggered, 6,400 nozzles)

• Print Resolutions: 600, 800, 900, 1,200 dpi

• Print Speed (4-Color Mode): Up to 1,076.4 ft²/h (100 m²/h)

• Maximum Print Area: 53.5″ (1,360 mm) | 63.4″ (1,610 mm)

• Maximum Media Width: 53.9″ (1,370 mm) | 63.8″ (1,620 mm)

• Maximum Media Thickness: Up to 0.04″ (1 mm)

• Maximum Media Weight: One roll: max 45 kg (99.2 lb); Three rolls: total max 90 kg (198.4 lb)

• Ink Type:

  • SS21 Eco-Solvent: C, M, Y, K, Lc, Lm, Lk, Or, W

  • BS4 Eco-Solvent: C, M, Y, K

• Interface: Ethernet 1000BASE-T / USB 2.0 Hi-Speed

• Power Supply: Single-phase AC100–120V / 200–240V ±10％, 50/60Hz ×2

• Power Consumption: Max 1,440 W ×2; Sleep 4.5 W

• Operational Environment: 20–30 °C, 35–65% RH (non-condensing); Recommended 20–25 °C; general office dust levels

• Certifications: VCCI Class A, FCC Class A, ETL IEC 62368‑1, CE (EMC/Low voltage/Machinery directive/RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA, GREENGUARD Gold No. 6

Highlights

• Multiple media roll handling unit for continuous production

• Integrated XY slitter for precise cutting of multiple rolls

• In-machine lighting for better visibility during operation

• V-shaped cutting function for consistent contour cuts

• Mimaki Remote Access for remote diagnostics and workflow management

• Dual staggered heads (6,400 nozzles) for high-density, precise output

• Fast production speed up to 1,076 ft²/h (100 m²/h)

• Eco-solvent inks compatible with SS21 and BS4 for indoor/outdoor durability

Applications

• Durable banners, posters, and indoor/outdoor signage

• Stickers, labels, and decals

• Vehicle graphics and fleet wraps

• POP and retail display graphics

• Exhibition and event signage

• Short-run packaging and custom promotional materials

Printer Weight & Size

• Dimensions: 2,920 × 1,215 × 1,305 mm → ~9.58 ft × 3.98 ft × 4.28 ft

• Alternative Roll Configuration: 3,170 × 1,215 × 1,305 mm → ~10.4 ft × 3.98 ft × 4.28 ft

• Weight: 358 kg (~789 lb)

• Recommended Clearance: ~12 ft width × ~6 ft depth for media handling and operator access

Shipping Information

• Packaged Weight: Slightly heavier than operational weight due to crating (~800–820 lb)

• Packaged Dimensions: Estimated 12 ft × 4 ft × 5 ft including protective crate

Recommended Inks

• Mimaki Ink ECO SS21 440 mL Cartridge

• Mimaki Ink ECO SS21 2 L Bag

• Mimaki SS22 440 mL Cartridges

• Mimaki Ink ECO BS4 600 mL Bag

• Mimaki Ink ECO BS4 2 L Bag

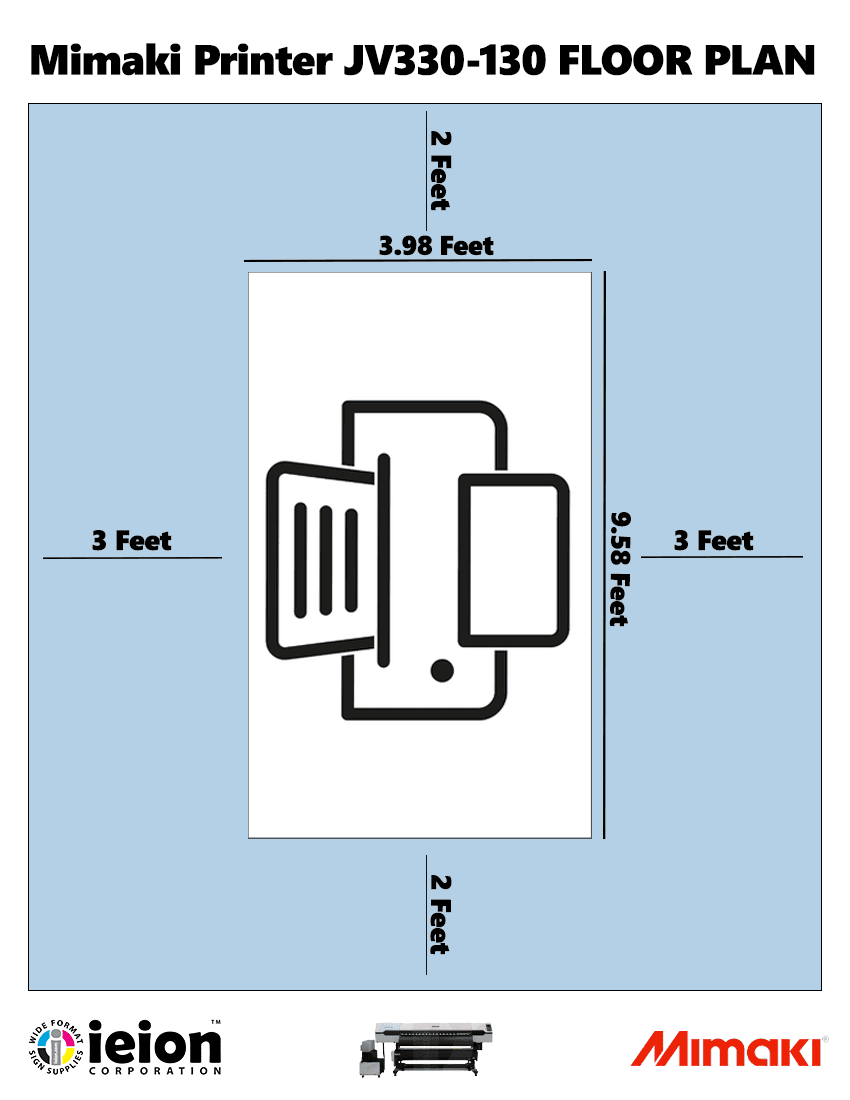

Floor Plan
