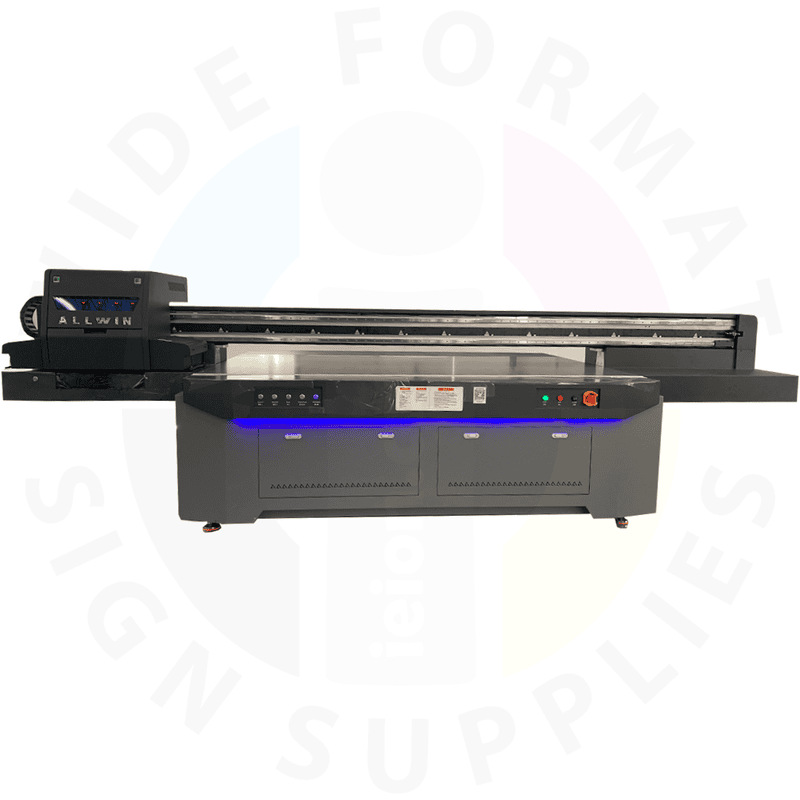

The Allwin Printer UV LA 4x8 Four is a high-performance flatbed UV LED printer designed for printing on rigid media up to 4 x 8 feet. Engineered for safe and stable operation, this model features four rows of print heads, allowing up to 16 Konica 1024i heads for maximum speed and productivity.
Built with premium components, it includes an open bulk ink system (chip-free) with 1.5-liter tanks per color, and comes bundled with SAI FlexiPrint RIP software for professional color control and workflow optimization.
$45,668.00 $54,617.00
Available Offer
Product Details
🔧 Print Head Configuration Options
This printer supports a scalable setup with up to 16 Konica 1024i print heads, arranged in 4 rows (up to 4 heads per row):
Option A: 4 Print Heads
Option B: 5 Print Heads
Option C: 6 Print Heads
Option D: 8 Print Heads
Option E: 10 Print Heads
Option F: 12 Print Heads
Option G: 14 Print Heads
Option H: 16 Print Heads
⚠️ Note:Print heads are sold separately. Please view the recommended products below.
🔹 Highlights
Flatbed UV LED printing for rigid media up to 4x8 ft.
Four-row head layout for ultra-fast production.
Open bulk ink system with 1.5L tanks per color – no chips required.
Konica 1024i print heads offer durability and precision.
Color configuration: CMYK + Optional White.
SAI FlexiPrint RIP software included for advanced color control.
Scalable print head setup – start with 4 and expand up to 16.
Ideal for wide-format applications in acrylic, wood, glass, PVC board, foam board, and more.
📋 Technical Specifications
Feature
Description
Model
Allwin Printer UV LA 4x8 Two XL
Print Technology
Flatbed UV LED
Print Area
Up to 4 x 8 ft (Rigid Media)
Print Heads
Supports 4 to 16 Konica 1024i (not included)
Head Layout
4 Rows – Up to 4 heads per row
Ink System
Open bulk system (chip-free), 1.5L per color
Ink Colors
CMYK + Optional White
Software Included
SAI FlexiPrint RIP
Component Quality
High-quality components throughout
Power Supply
220V / 5kVA
Power Protection
Voltage stabilizer recommended
Specifications
Printers Specifications
Printheads
:
Konica 1024i 6pl
Base System
:
Flatbed
Main feature
:
Print
Printing Size
:
4x8
Rip Software
:
SAI Flexi
Computer Included
:
No
Max Media Thickness
:
4 in
Max Media Weight
:
220 lbs
Ink System
:
Open
Power Supply
:
220v
Power Consumption
:
5kVA
Interface
:
Ethernet
Vacuum Table Zones
:
6
Adjustable Layout Pins
:
Yes
Waveform control
:
Yes
Variable Dot Technology
:
No
Fine Difussion
:
Yes
Ink Circulation
:
Yes
Nozzle Recovery System
:
Yes
Printer Ink Base
:
UV
