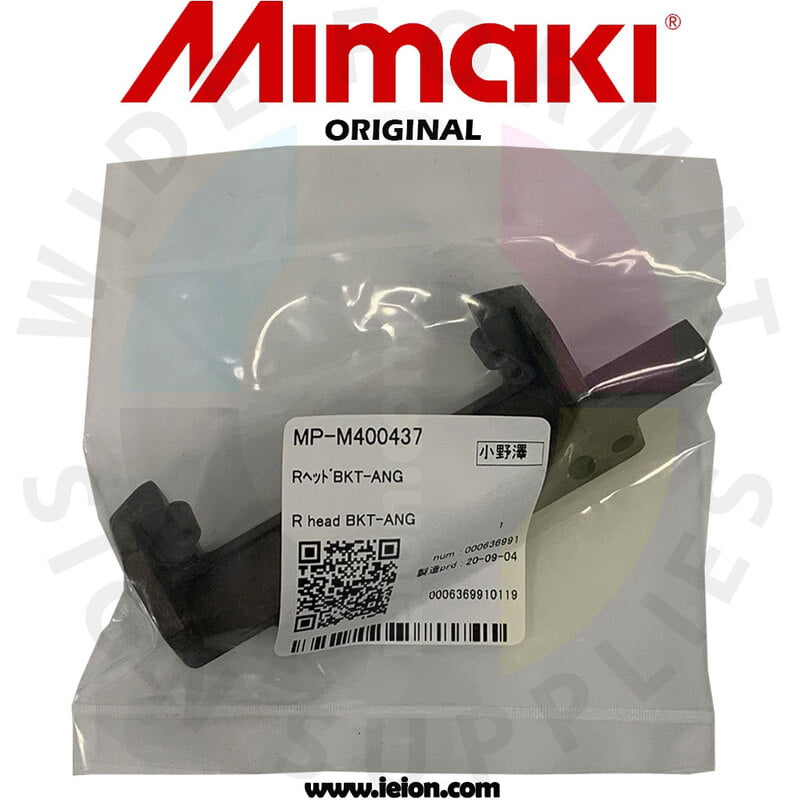

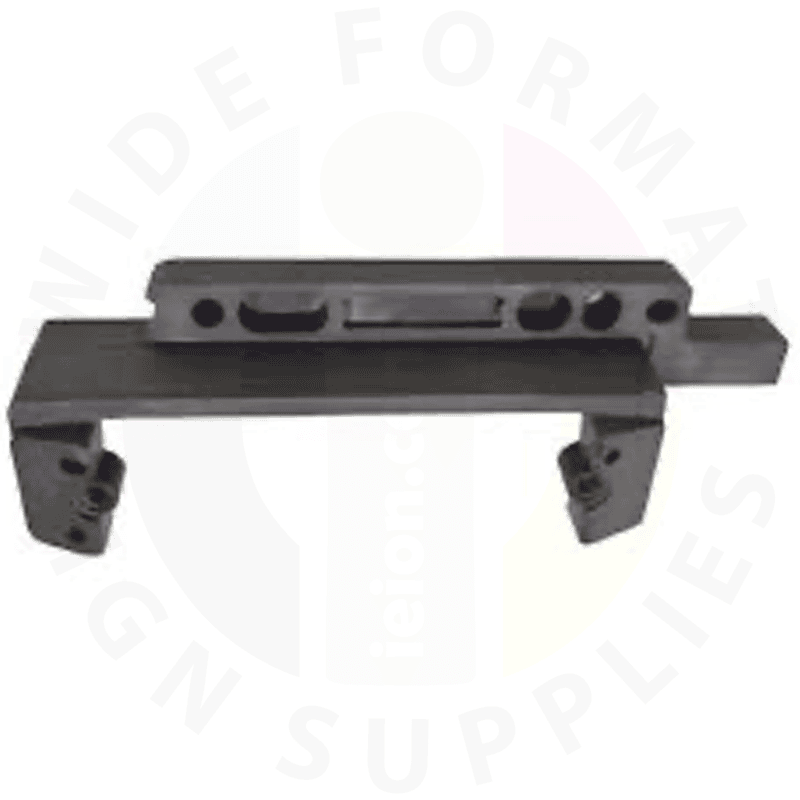

Mimaki Adapter R-Head BKT-ANG
Mimaki Adapter R‑Head BKT‑ANG – Genuine adapter bracket (angle) designed for the R-head print module in Mimaki UJF-3042, UJF-3042FX, UJF-3042HG and UJF-6042 series printers. Ensures precise alignment and secure mounting to maintain optimal print quality and head performance.
Available Offer
Share :
Specifications
Manufactured to OEM compatibility, ensuring exact alignment and fit for the printhead module.
Material: High-quality metal alloy (bracket frame) with precision machined holes/slots and mounting points to attach the R-head securely at the correct angle.
Finish: Protective coating or anodisation to resist corrosion, wear and maintain rigidity over time.
Dimensions & mounting interface: Specifically engineered to align the printhead at the correct orientation (“ANG” stands for angled bracket) to ensure optimal print alignment and stability.
Installation: Designed to be a direct replacement part used in servicing or retrofitting R-head assemblies.
Compatibility: Suited for Mimaki models that require this “angle” adapter bracket when mounting the R-head print module.
Highlights
Precision Fit – Being a dedicated adapter bracket for Mimaki’s R-head system ensures correct alignment of the printhead, which is critical for print quality and consistency.
Durable Construction – The use of robust metal and appropriate finish means the bracket can withstand the stresses from head carriage motion, vibrations, and repeated servicing.
OEM Quality Replacement – Allows for easy servicing of the printer with factory-compatible parts, reducing risk of misalignment or compatibility issues.
Installation Friendly – Designed to drop-in (or bolt-in) with minimal modification, enabling faster turnaround during maintenance or printhead replacement.
Essential for Print Quality – Because the bracket sets the angle and position of the printhead module, the correct one helps maintain sharp output, consistent bi-directional printing, and minimise banding or skew.
Applications & Uses
Printhead Servicing & Replacement – When replacing or adjusting the R-head print module in a Mimaki UJF-3042 (or compatible) flatbed printer, this adapter bracket ensures proper mounting.
Printer Alignment/Calibration – Used during recalibration following head replacement or when upgrading components to ensure the head is mounted at the correct angle and position.
High-Precision Flatbed/UV Printing – In environments where print accuracy matters (e.g., signage, small batch custom production, promotional items) mounting precision is key—this bracket contributes to that.
Preventative Maintenance – Including replacement of the bracket when wear or misalignment is detected helps avoid print defects, downtime, and costly rework.
Retrofitting or Upgrades – For printers being upgraded to a new R-head configuration or being refurbished, the correct bracket ensures compatibility and performance.
Parts Type
- Parts Type:Adapters
