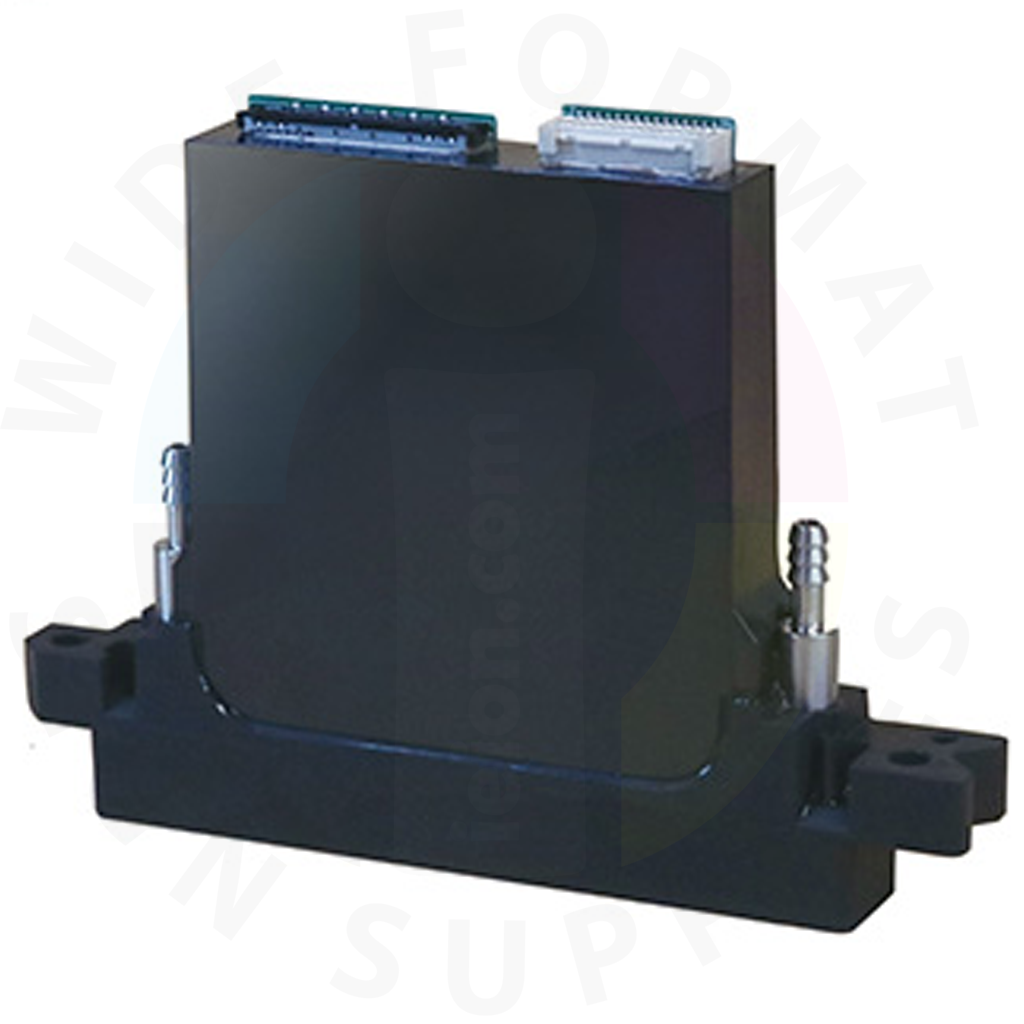

Konica Print Head 1024i 6pl with cables
Non-returnable
Tags:
The heads are original and tested by the factory prior to shipment. They do not have a guarantee due to the large number of variables that may affect them during the installation.
Choose Quantity
$3,157.00
Product Details
Specifications
KM1024i Series Printheads are:
- High speed, high productivity printheads with ‘independent’ firing technology – not limited by the low speeds of older ‘shared wall’ technology.
- Proven in a wide range of single-pass systems, providing print up to 80 meters per minute from a single row of heads.
- Simple to integrate, tough and reliable with good fluid compatibility
- Available in 6, 14 and 30pl drop sizes. Variants are available for solvent oil, UV and water-based inks. These heads may be operated in a wide range of different orientations and suitable for use with recirculating ink systems.
- Printheads can be used in binary or greyscale (3bit) models.
Technology
Independent channel, on-demand piezo
Number of nozzles
1024 (256 x 4 rows)
Channel resolution
70.5um pitch (360dpi: 4 rows x 90dpi)
Dimensions
Height 94 mm x Width 18 mm x Length 131 mm
Number of nozzles
1024 (256 x 4 rows)
Channel resolution
70.5um pitch (360dpi: 4 rows x 90dpi)
Dimensions
Height 94 mm x Width 18 mm x Length 131 mm
Printing width
72.12 mm
Overall row spacing
2.82 mm
Drop velocity
6.0 m/sec
Weight
Less than 150 gm
72.12 mm
Overall row spacing
2.82 mm
Drop velocity
6.0 m/sec
Weight
Less than 150 gm
Parts Type
- Parts TypePrint heads
