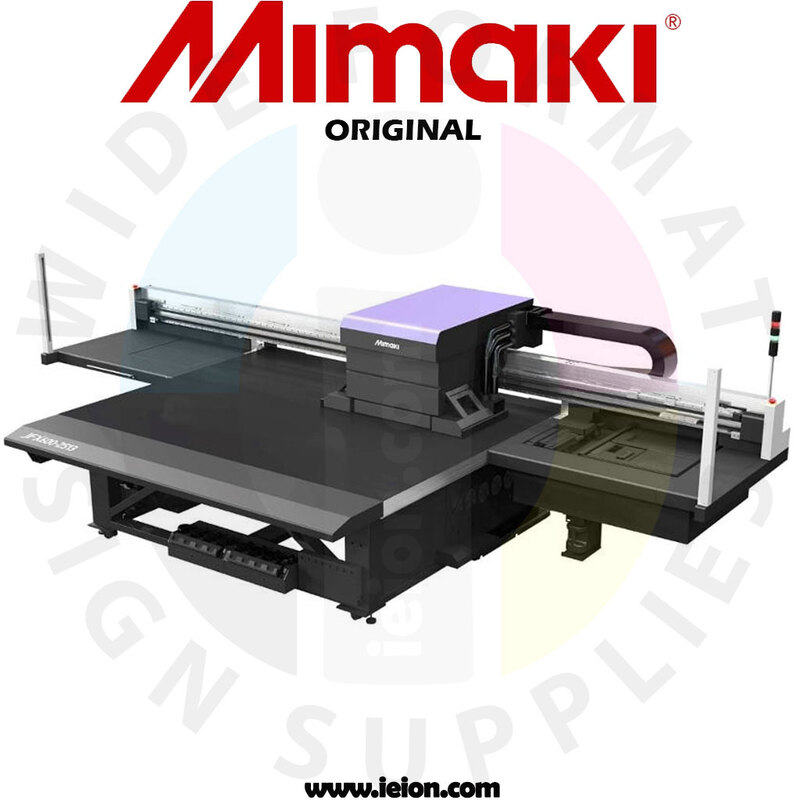

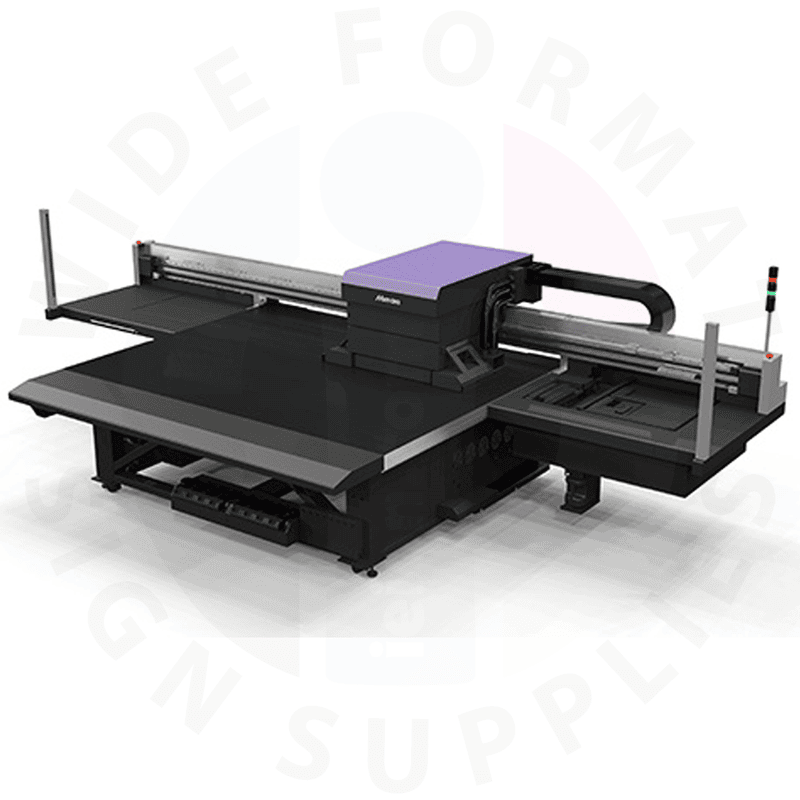

Mimaki Printer Flatbed UV-LED

Specifications

• Print Technology: UV-LED flatbed inkjet

• Number of Print Heads: 16 (in staggered configuration)

• Maximum Print Area: 2,500 mm × 1,300 mm (98.425” × 51.181”)

• Maximum Media Thickness: 60 mm (2.362”)

• Maximum Print Speed: Up to 200 m²/h (2,152 ft²/h)

• Equivalent Output: Up to 67 boards per hour

• Print Resolution: Up to 1,200 dpi

• Ink Type: UV-curable (CMYK, White, Clear, Primer options)

• Curing System: Energy-efficient UV-LED lamp

• Interface: Ethernet, USB

• Control System: On-machine job and maintenance control via Mimaki Print Controller (MPC)

• MDL Support: Compatible for automated production workflow integration

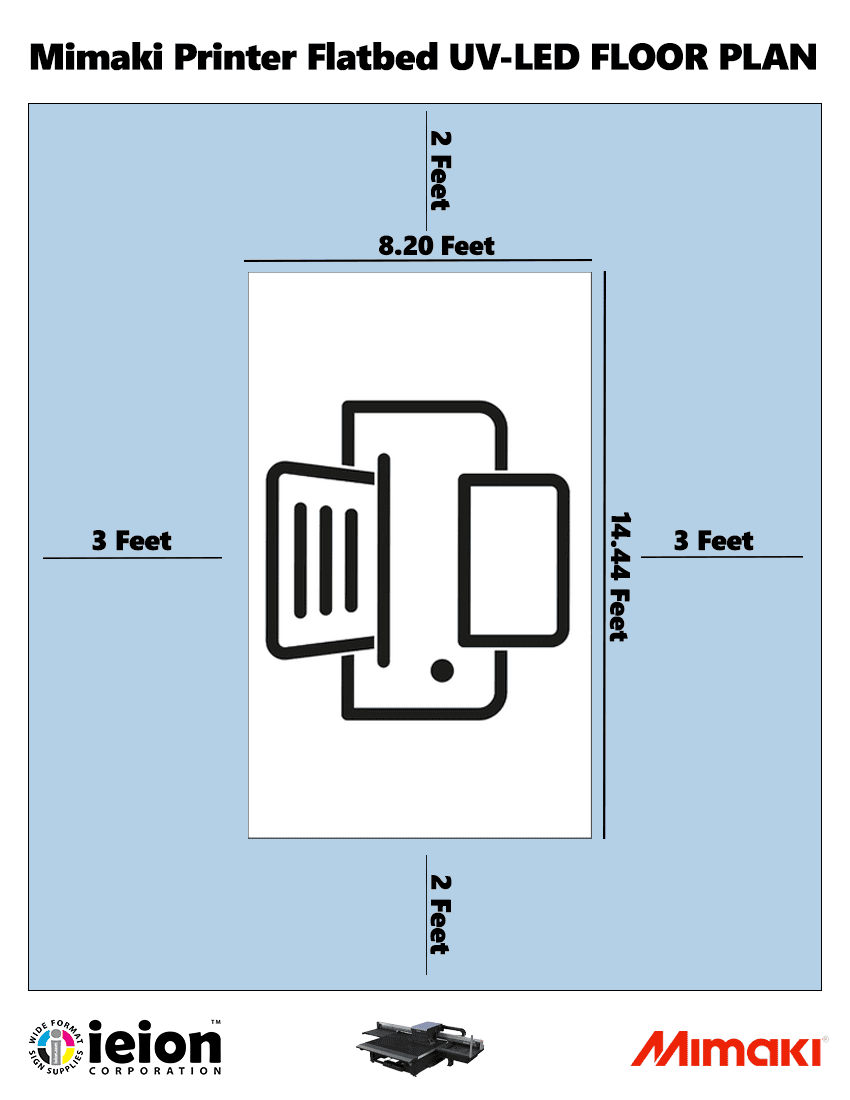

• Dimensions (W × D × H): Approx. 4,400 × 2,500 × 1,400 mm

• Weight: Approx. 1,200 kg

Highlights

• Fastest model in the Mimaki JFX Series

• 16 print heads for ultra-high productivity

• Print speeds up to 2,152 sq. ft./h (67 boards/h)

• Exceptional image quality with resolutions up to 1,200 dpi

• Advanced Mimaki Core Technologies for reliability and precision

• On-board Mimaki Print Controller (MPC) for easy operation and maintenance

• Production workflow ready with MDL support

• Eco-friendly, low-VOC GREENGUARD Gold certified UV-LED inks

• Compact design fits seamlessly into any production space

• Energy-efficient UV-LED curing with low heat output

Applications and Uses

• Indoor and outdoor signage

• Retail and POP (Point-of-Purchase) displays

• Exhibition and event graphics

• Custom décor, furniture, and architectural panels

• Packaging prototypes and short-run production

• Industrial component printing

• Printing on acrylic, glass, metal, wood, PVC, and more
