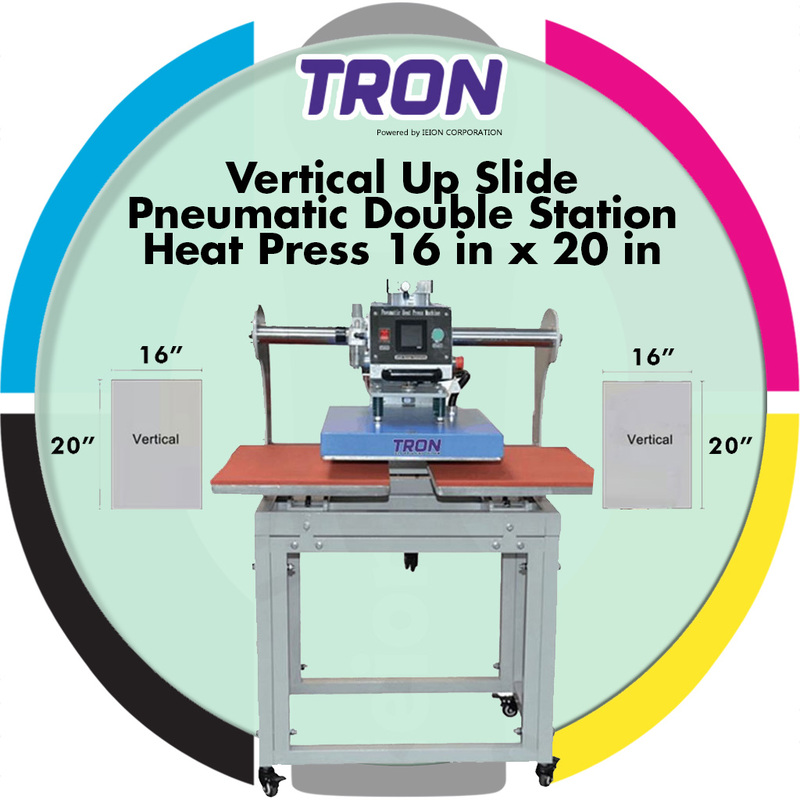

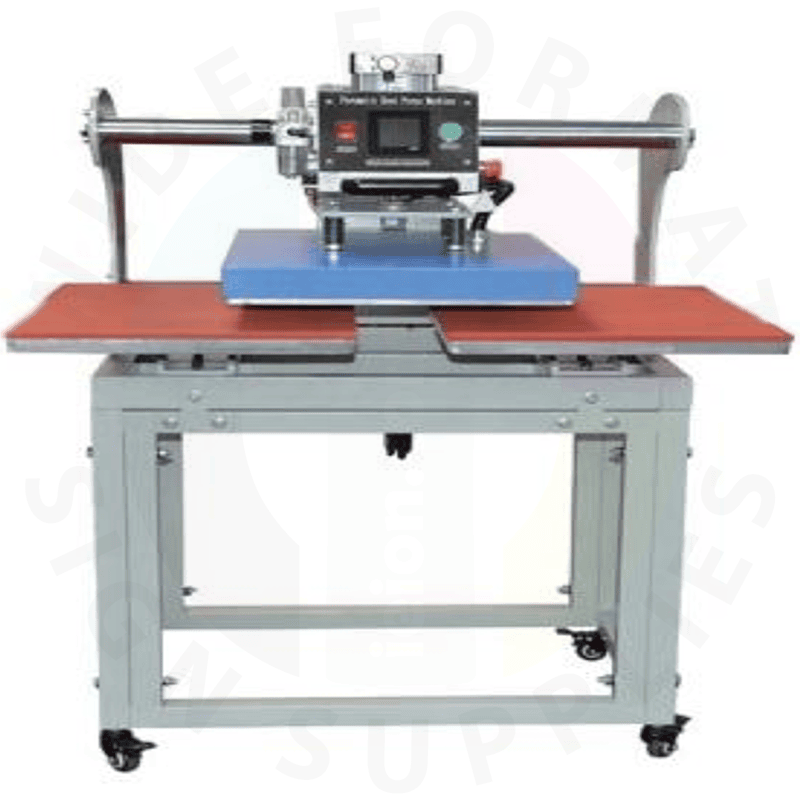

Tron Heat Press Pneumatic Double Station 16 x 20 in
A production-grade, dual-station heat press built for speed, consistency, and safety. The pneumatic actuator delivers uniform pressure across two 16 × 20 in platens, so you can load the next job while the other station is pressing—ideal for DTF transfers, HTV, and sublimation in high-throughput shops.

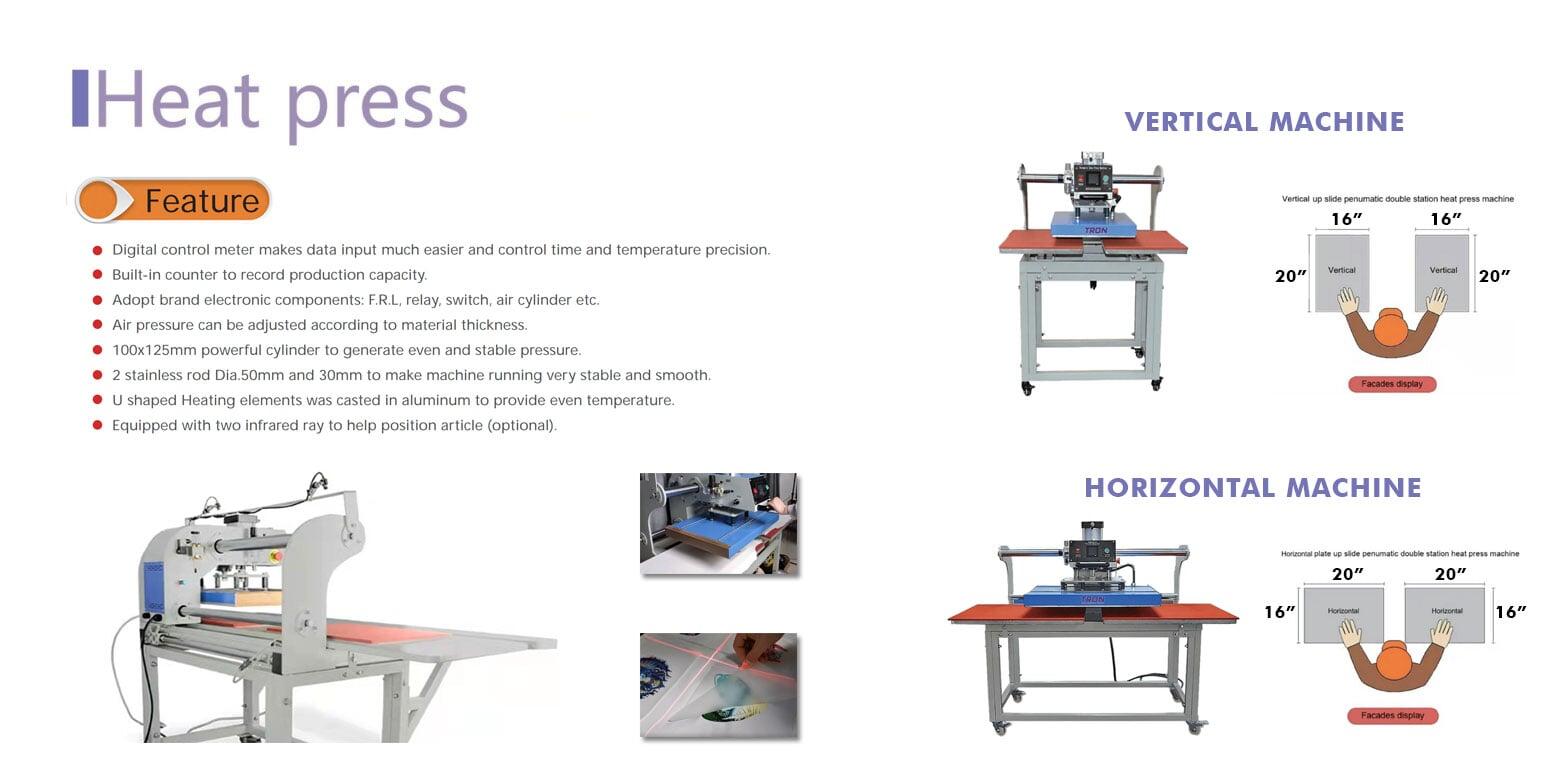

Platen Size: 16 × 20 in (40 × 50 cm) — image also shows a 40 × 60 cm / 16 × 24 in option
Stations: 2 (left/right shuttle)
Power: 3.8 kW
Voltage: 220–240 V, 50/60 Hz, single-phase (options may vary)
Controls: Digital temperature & time controller; adjustable pneumatic pressure
Frame: Heavy-duty stand with casters; silicone rubber pads on each platen
Packaging Size: 103 × 90 × 78 cm
Gross Weight: 170 kg
Air Supply: External compressor required (clean, dry air; regulator/filter recommended)
Highlights
Throughput Booster: Dual stations let you press on one side while prepping the next on the other.
Consistent Results: Pneumatic pressure helps ensure even, repeatable transfers across the full platen.
Even Heating: Rigid top platen design promotes uniform temperature for edge-to-edge quality.
Operator Friendly: Up-slide motion reduces fatigue; digital controls simplify setup and repeat jobs.
Shop Ready: Steel frame on casters for stable operation and easy positioning.
Use & Details
Applications: DTF transfers (A/B film), heat-transfer vinyl (HTV), and sublimation on compatible blanks/fabrics.
Basic Workflow:
Set temperature, time, and pressure for your media.
Pre-press garment/substrate to remove moisture and wrinkles.
Place transfer, align, and press.
Follow the transfer’s peel instructions (hot/warm/cold).
Best Practices: Keep platens clean; use Teflon or parchment sheets to protect graphics; verify pressure balance across corners; test settings per fabric.
Air & Maintenance: Use a dryer/filter on the compressor line; inspect hoses and fittings; replace silicone pads as needed; periodically verify temperature with a contact thermometer.
Note: Listing is for the 16 × 20 in model. A 16 × 24 in (40 × 60 cm) configuration is commonly available
