Mimaki Printer & Cutter ECO CJV200-75

Specifications

• Print Resolution: 600 / 900 / 1,200 dpi

• Print Gap: Manually adjustable (1.5 mm or 2.0 mm)

• Ink Type / Colors: Eco-solvent (SS22 or SS21) — Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Orange

• Ink Capacity:

  • SS22: 440 ml cartridge / 1 L ink pack

  • SS21: 440 ml cartridge / 2 L ink pack

• Maximum Print Width: 800 mm (31.5″)

• Maximum Media Width: 810 mm (31.9″)

• Maximum Media Thickness: ≤1.0 mm

• Roll Diameter: Max φ180 mm

• Maximum Roll Weight: 25 kg (55 lb) (up to 45 kg with optional support)

• Roll Core Diameter: 2-inch and 3-inch cores

• Cutting Function:

  • Cutting speed: up to 300 mm/s

  • Cutting acceleration: up to 0.5G

  • Cutting pressure range: 10 – 450 gf

  • Cutter repeatability: ±0.2 mm

• Interface: Ethernet 1000BASE-T and USB 2.0

• Power Supply: Single-phase AC 100–120 V or 200–240 V

• Power Consumption: Max 1,320 W × 2, Sleep mode ~4.5 W

• Operating Environment: 20–30 °C (68–86 °F), 35–65% RH

• Certifications: CE, Energy Star, RCM, KC, VCCI Class A, CB

• Dimensions (W × D × H): 1,960 × 748 × 1,370 mm

• Dimensions (inches): 77.2″ × 29.4″ × 53.9″

• Dimensions (feet): 6.43 ft × 2.45 ft × 4.49 ft

• Weight: 105 kg / 231 lb

Highlights

• Integrated print-and-cut workflow increases efficiency

• Uses eco-solvent inks for durable, weather-resistant graphics

• High-resolution output up to 1,200 dpi for sharp, detailed prints

• Versatile ink options for different production needs

• Cutting speed up to 300 mm/s with precise contour cutting

• Compact footprint for smaller shops

Applications

• Signage: banners, posters, wall graphics

• Decals and vehicle graphics / wraps

• Labels, stickers, and custom vinyl graphics

• Window graphics and POP displays

• Indoor and outdoor signs

Printer Weight & Size

• Dimensions: 1,960 × 748 × 1,370 mm (77.2″ × 29.4″ × 53.9″ / 6.43 ft × 2.45 ft × 4.49 ft)

• Weight: 105 kg / 231 lb

Shipping Information

• Estimated shipped weight: ~115–140 lb

• Crate dimensions (approximate): ~88″ × 32″ × 60″ (~7.33 ft × 2.67 ft × 5 ft)

• Allow clearance for packing and protection

Recommended Inks

• Mimaki Ink ECO SS21 440 mL Cartridge

• Mimaki Ink ECO SS21 2 L Bag
• Mimaki SS22 440 mL Cartridges
• Mimaki Ink ECO BS4 600 mL Bag

• Mimaki Ink ECO BS4 2 L Bag

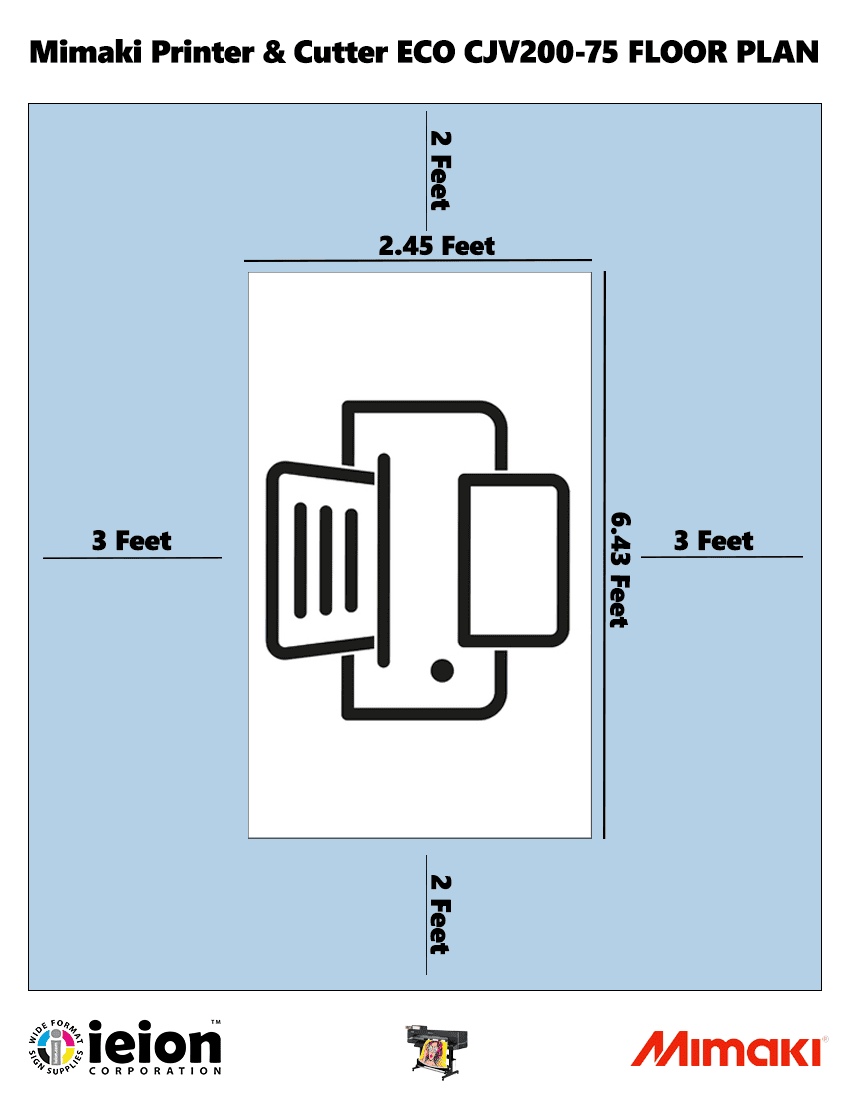

Floor Plan
