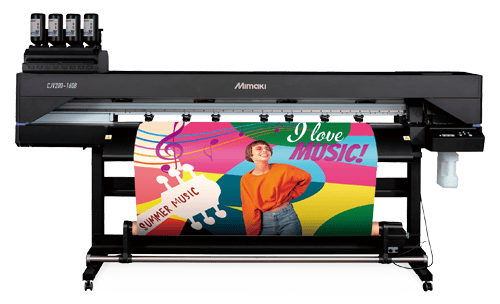

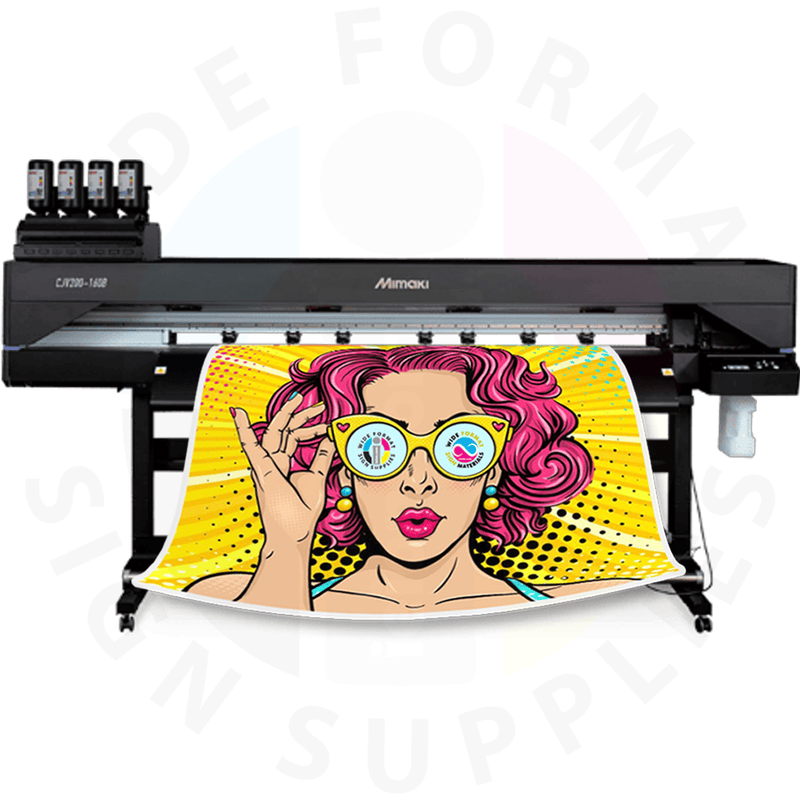

The Mimaki ECO CJV200-160 is a 64-inch eco-solvent printer-cutter built for reliable, high-quality production. It combines vibrant color printing with precise contour cutting, making it ideal for producing decals, wraps, signage, and full-color graphics in a single, streamlined workflow.
Available Offer

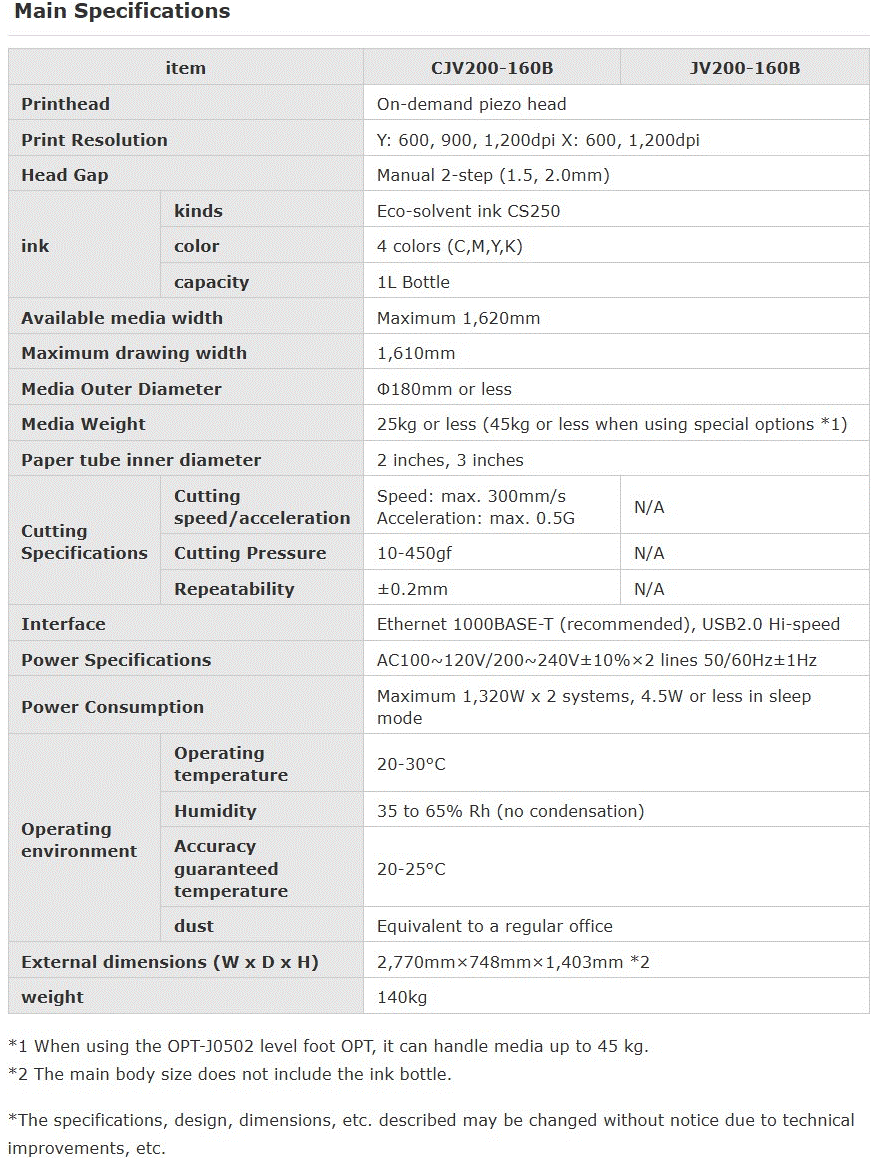

Specifications
Print Technology: Eco-solvent inkjet
Integrated System: Printer + cutter in one machine
Maximum Media Width: 64 in (1,610 mm)
Maximum Print Resolution: Up to 1,440 dpi
Ink Technology: Eco-solvent (CMYK, compatible with Mimaki SS21 inks)
Cutting Features: Continuous contour cutting, crop-mark reading, and automated media compensation
Feeding System: Roll-to-roll media handling with stable tension control
Interface: USB / Ethernet
RIP Compatibility: Mimaki RasterLink and third-party RIPs
Power: AC100–120V or AC200–240V depending on region
Highlights
Print and cut functionality in one machine
High-definition eco-solvent output with long-term outdoor durability
Smooth gradients and vibrant color reproduction
Efficient workflow for producing decals, labels, wraps, and signs
Mimaki technologies for accuracy: Waveform Control, Nozzle Check Unit, Nozzle Recovery System
Reliable and easy to operate in continuous production
Handles a wide range of media types for versatile applications
Applications
Stickers and decals
Labels and product markings
Vehicle wraps and fleet graphics
Indoor/outdoor signage
Posters and banners
Window and wall graphics
Print-and-cut heat transfer graphics
Printer Weight & Size
Dimensions: 2,770 mm × 748 mm × 1,403 mm × 2
Dimensions in Feet: approx. 9.08 ft × 2.45 ft × 4.60 ft × 2
Weight: 140 kg (approx. 308 lbs)
Shipping Information
Packaged Weight: Heavier than operational weight due to crate/pallet
Packaged Size: Based on full machine footprint plus protective crating (dimensions vary by shipment)
Recommended Inks

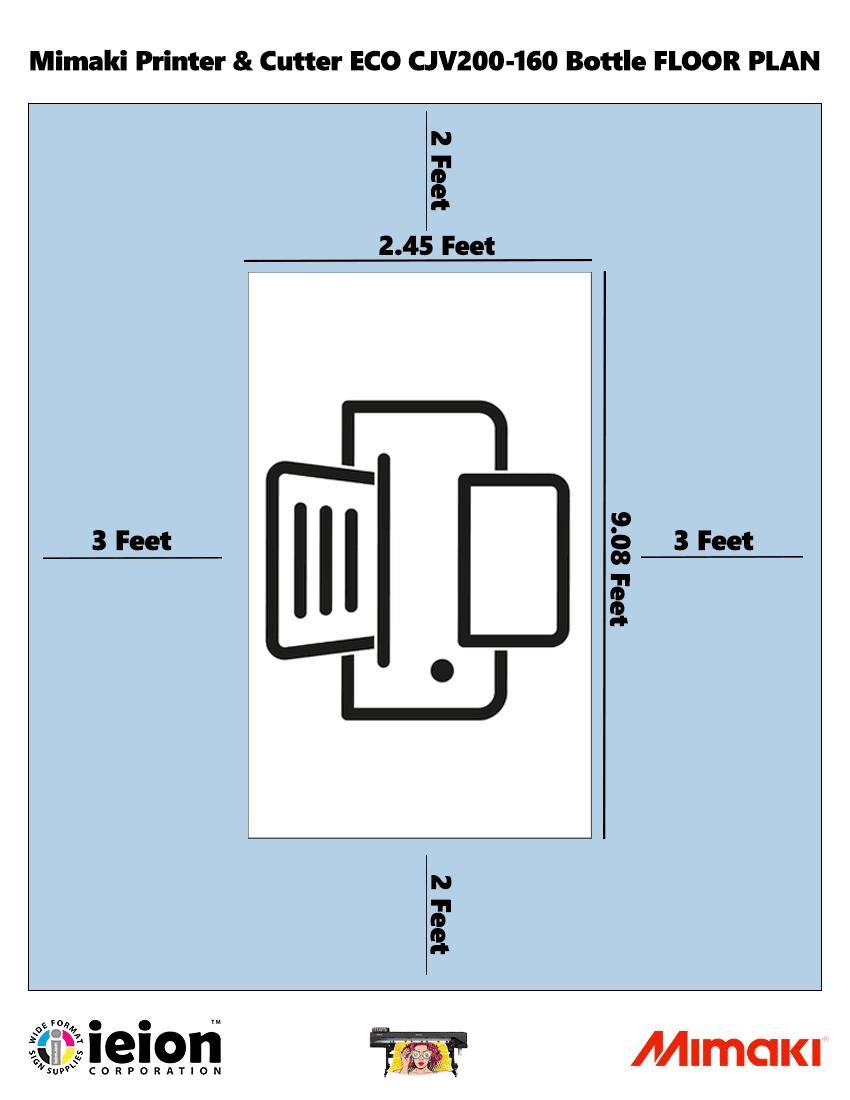

Floor Plan
Equipment Type
- Equipment Type:Printers
Printers Specifications
- Printheads:Epson i3200
- Base System:Roll to Roll
- Main feature:Print & Cut
- Printing Size:64 in
- Rip Software:Rasterlink
- Computer Included:No
- Max Media Thickness:1mm
- Max Media Weight:110 lbs
- Ink System:Fix with Chips
- Power Supply:220v
- Power Consumption:3kVA
- Interface:Ethernet
- Vacuum Table Zones:1
- Adjustable Layout Pins:No
- Waveform control:Yes
- Variable Dot Technology:Yes
- Fine Difussion:Yes
- Ink Circulation:No
- Nozzle Recovery System:Yes
- Printer Ink Base:Solvent
