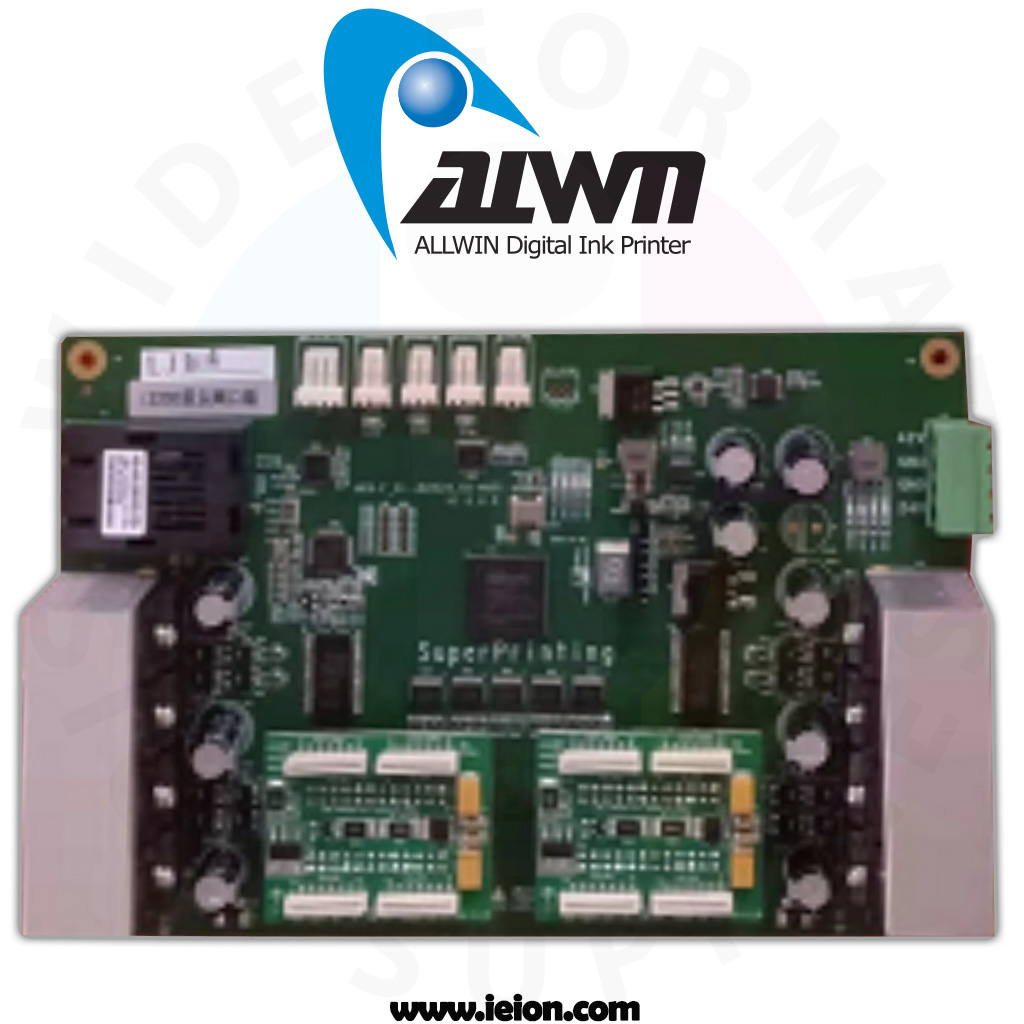

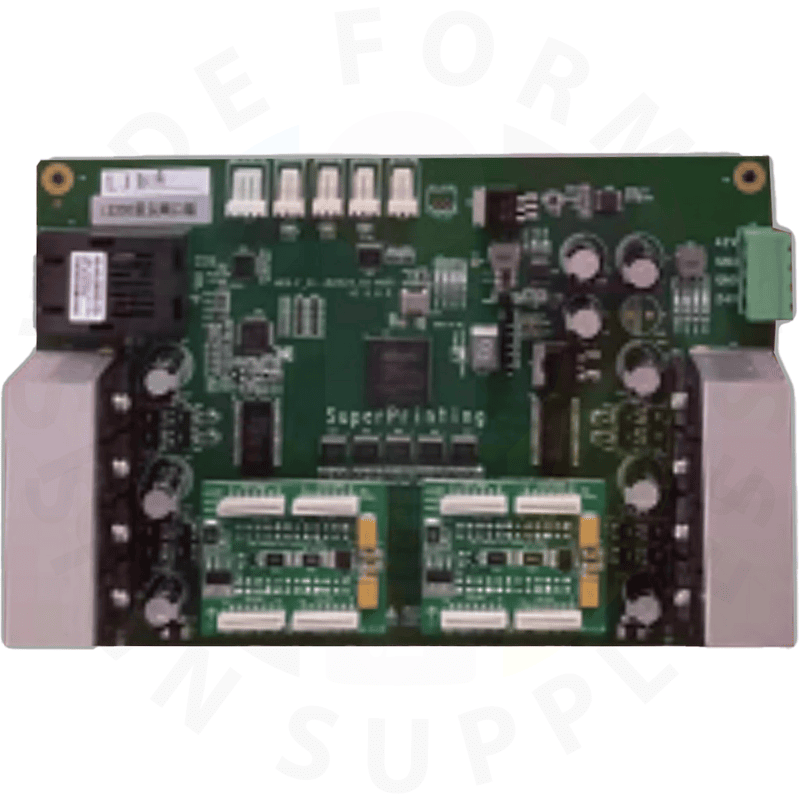

The Allwin SP 3200 is a high-performance carriage board designed for large-format printers. It ensures stable control of printhead operations, supports multiple head configurations, and is ideal for use in eco-solvent, UV, or solvent-based printing systems. Built for durability and precision, it’s perfect for both repairs and custom printer builds.
$1,707.00
Available Offer
Share :
Product Details
Specifications
Type: Carriage / printhead driver board
Print Head Compatibility: Likely supports Epson‑ or compatible print heads (single or multiple)
Channels / Heads Supported: May support 1 to several heads (depending on board version)
Power / Voltage Inputs: Logic voltage (e.g. 5 V) + head heating / drive voltage (e.g. 12 V, 24 V or more)
Interface / Connectors: Ribbon flex cables, board‑to‑board connectors, signal lines for sensors (thermistors, encoders)
Mounting / Form Factor: PCB designed for carriage movement; alignment holes and fixtures
Thermal / Current Design: Power traces sized for heater spikes, thermal stability under motion
Highlights
Stable and precise control of printhead operations
Designed for a moving carriage environment (vibration, acceleration)
Good signal integrity and electrical isolation between logic and heater circuits
Compatible with multiple head modules for flexibility
Robust construction suitable for long-term use and repair
Applications & Uses
Replacement / spare part in large-format / eco-solvent / UV / wide-format printers
Retrofit or upgrade of existing printer systems
Use in custom or experimental printing hardware projects
Repair and maintenance of print shops’ printers
Prototype printing or printed electronics research
