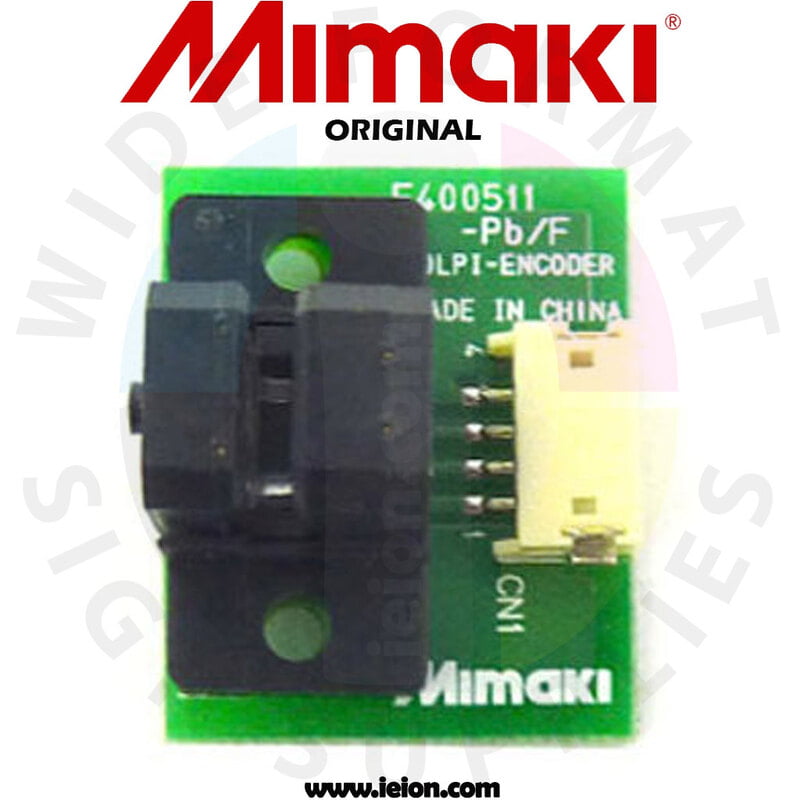

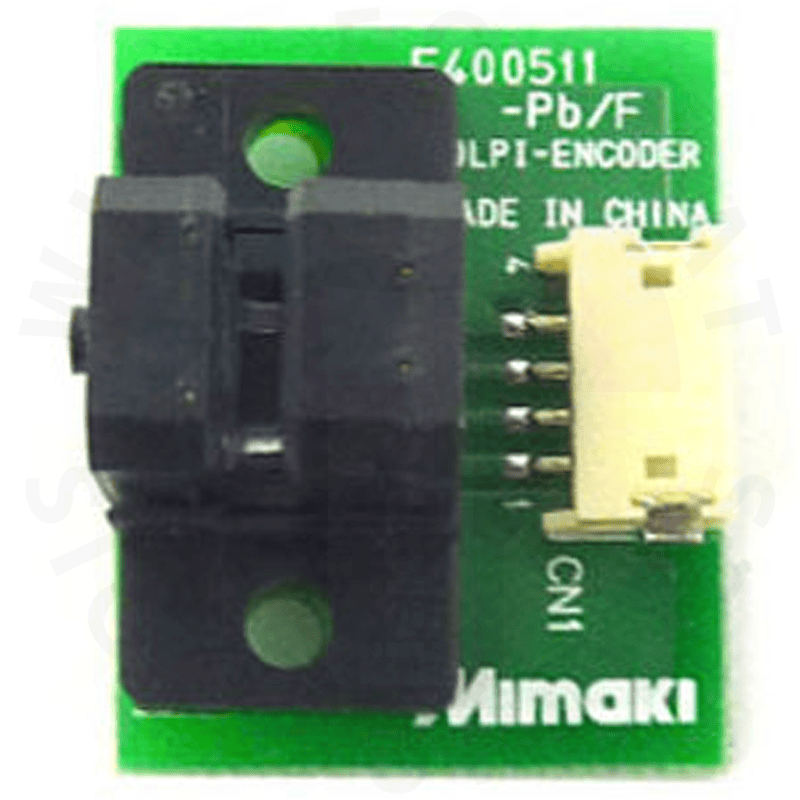

Mimaki Sensor 150 LPI ENCODER PCB ASSY

Specifications

• Product Name:Mimaki 150 LPI Encoder PCB Assembly

• Replaces: Previous compatible encoder PCB versions

• Resolution: 150 LPI

• Weight: Approx. 0.1 kg

• Dimensions: 5 × 5 × 5 cm (packaged)

• Origin: Japan

• Warranty: 3 months (electronic components only)

• Packaging: Anti-static bag + shockproof protective box

• Manufacturer: Mimaki Engineering Co., Ltd.

Highlights

• ✅ Laser-Calibrated Accuracy – ±0.01 mm carriage positioning precision
• 🔧 Plug-and-Play Integration – Auto-recognized by printer BIOS, no recalibration needed
• 🛡️ Industrial Durability – IP52-rated enclosure, reinforced heat sinks for 35% better cooling
• 💡 Smart Firmware – Preloaded with v5.3, backward-compatible to v5.1
• 💰 Cost-Efficient – Up to 50% cheaper than direct Mimaki pricing

Compatible Printers

• Mimaki TS500 Series
• Mimaki UCJV300 Series
• Mimaki JFX200 Series
• Mimaki 3DUJ Series
• Mimaki JF-1610 / JF-1631 / JFX-1615 / JFX-1631 / JFX500-2131
• Mimaki JV400 Series
• Mimaki TX400 / TX500 Series
• Mimaki UJF-605 / UJF-706 / UJF-7151 / UJV500-160

Uses

• Replacement of faulty or worn encoder sensor boards
• Restoration of accurate carriage movement and print alignment
• Preventive maintenance to avoid signal drift and error codes (e.g., E7-240x)

Details

This encoder PCB assembly is essential for reading the encoder strip and translating its data into precise carriage movement. It ensures that the print head follows exact paths during high-speed printing. A damaged or misaligned sensor can cause print defects, misregistration, or mechanical errors.
