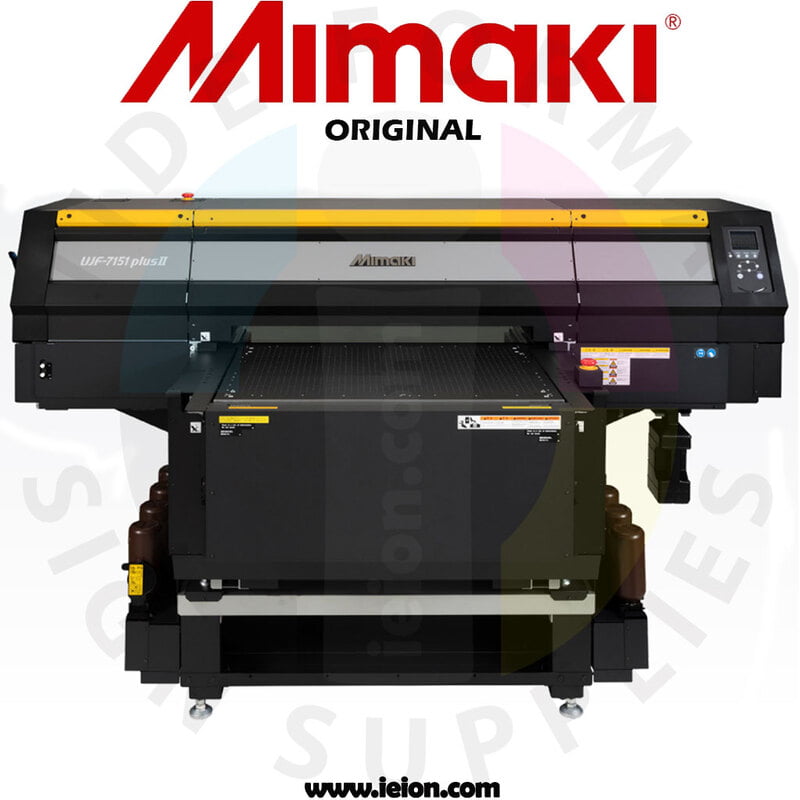

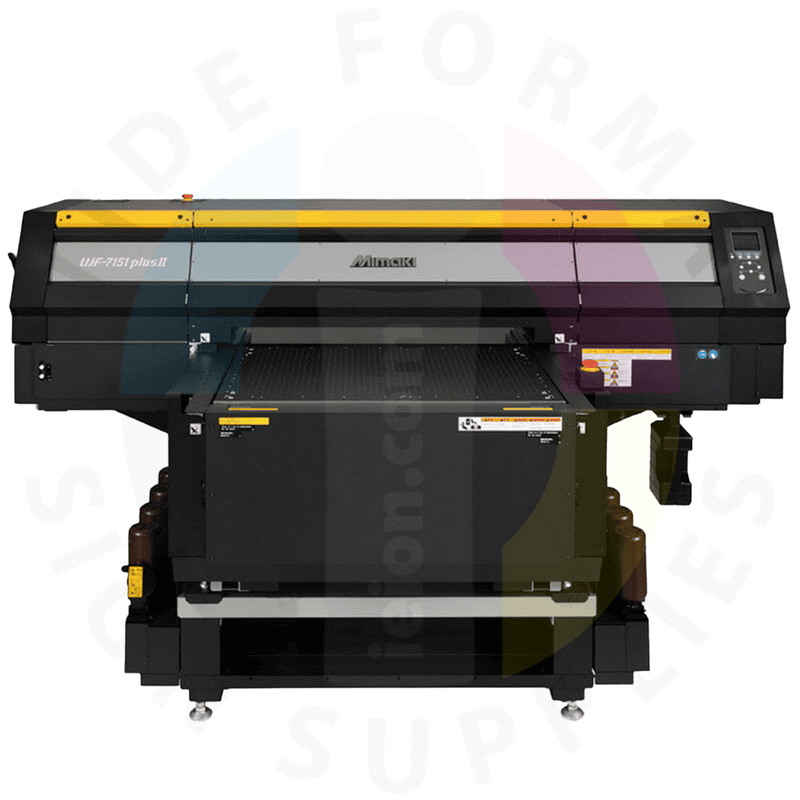

Mimaki UJF-7151 Plus-II Flatbed UV Printer
The Mimaki UJF-7151 Plus II UV-LED printer is the next generation model in the world’s best selling UJF Series line. This state of the art printer is geared for high accuracy, high image quality, and industry-leading productivity and stability.
$72,780.00
Available Offer
Product Details
Mimaki UJF-7151 Plus II Flatbed UV Printer
The Mimaki UJF-7151 Plus II UV-LED printer is the next generation model in the world’s best selling UJF Series line. This state of the art printer is geared for high accuracy, high image quality, and industry-leading productivity and stability.
The Mimaki UJF-7151 Plus II Flatbed UV Printer features:
- A print area of 28” x 20”; up to 6” thick
- Load capacity that has been increased from 22lbs to 66lbs (10 kg to 30 kg),
- Capability of printing up to 1800 dpi
- Print speeds up to 190% faster than the previous model
- 8 print heads
- Eco-friendly low VOC, GREENGUARD Gold certified UV-LED inks
- Pairing with our desktop 3D printer to produce jigs, molds for thermoforming or custom model
- All ink channels that offer Mimaki Circulation Technology
Specifications
| Printhead | eight on-demand piezo heads in a staggered array |
| Print Resolutions | 1,800 dpi |
| Print Speed (4 Color Mode) | 22 beds / hour |
| Maximum Print Area | 27.9″ x 20.0″ (710 × 510 mm) |
| Maximum media width | 28.7″ (730 mm) |
| Maximum Media Thickness | up to 6.02″ (153 mm) |
| Maximum Media Weight | 66.0 lbs. (30.0 kg) |
| Ink Type | U.S. & Canada- LH-100, LUS-120, LUS-350 | Mexico, Central & South America- LH-100, LUS-120, LUS-350 |
| Interface | Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power Supply | Single phase AC100-240V +6%/-10% 50/60Hz ± 1Hz |
| Power Consumption | AC100V: 1.3kW or less |
| Operational Environment | Temperature 59° – 86° F (15-30° C) |
| Dimensions (W × D × H) | 87″ x 62″ x 51″ (220.3 x 158 x 129.3 cm) |
| Weight | 728 lbs. (330 kg) |
| Certifications | VCCI class A, FCC class A, ETL UL 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, GREENGUARD Gold |
| UV curable ink (LH-100) | Cyan | Magenta | Yellow | Black | White | Clear | Primer | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | I-LH100-C-B2-1 | I-LH100-M-B2-1 | I-LH100-Y-B2-1 | I-LH100-K-B2-1 | I-LH100-W-B2-1 | I-LH100-CL-B2-1 | ||||
| 1L Bottle | LH100-C-BA | LH100-M-BA | LH100-Y-BA | LH100-K-BA | LH100-W-BA | LH100-CL-BA |
| UV curable ink (LUS-120) | Cyan | Magenta | Yellow | Black | White | Clear | Primer | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | I-LUS12-C-B2-1 | I-LH100-M-B2-1 | I-LUS12-Y-B2-1 | I-LUS12-K-B2-1 | I-LUS12-W-B2-1 | I-LUS12-CL-B2-1 | ||||
| 1L Bottle | LUS12-C-BA | LUS12-M-BA | LUS12-Y-BA | LUS12-K-BA | LUS12-W-BA | LUS12-CL-BA |
| UV curable ink (LUS-350) | Cyan | Magenta | Yellow | Black | White | Clear | Primer | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 1L Bottle | LUS35-C-BA | LUS35-M-BA | LUS35-Y-BA | LUS35-K-BA | LUS35-W-BA | LUS35-CL-BA |
| UV Primer (PR-200) | Primer | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | PR200-Z-BA | |||||||||
| 1L Bottle | PR200-Z-BA |
Specifications
Equipment Type
- Equipment Type:Printers
Printers Specifications
- Printheads:Ricoh Gen5
- Base System:Flatbed
- Main feature:Print
- Printing Size:2.3x1.7
- Rip Software:Rasterlink
- Computer Included:No
- Max Media Weight:110 lbs
- Ink System:Fix with Chips
- Power Supply:220v
- Power Consumption:7KVA
- Interface:USB 3.0
- Vacuum Table Zones:1
- Adjustable Layout Pins:No
- Waveform control:Yes
- Variable Dot Technology:Yes
- Fine Difussion:Yes
- Ink Circulation:Yes
- Nozzle Recovery System:Yes
- Printer Ink Base:UV
