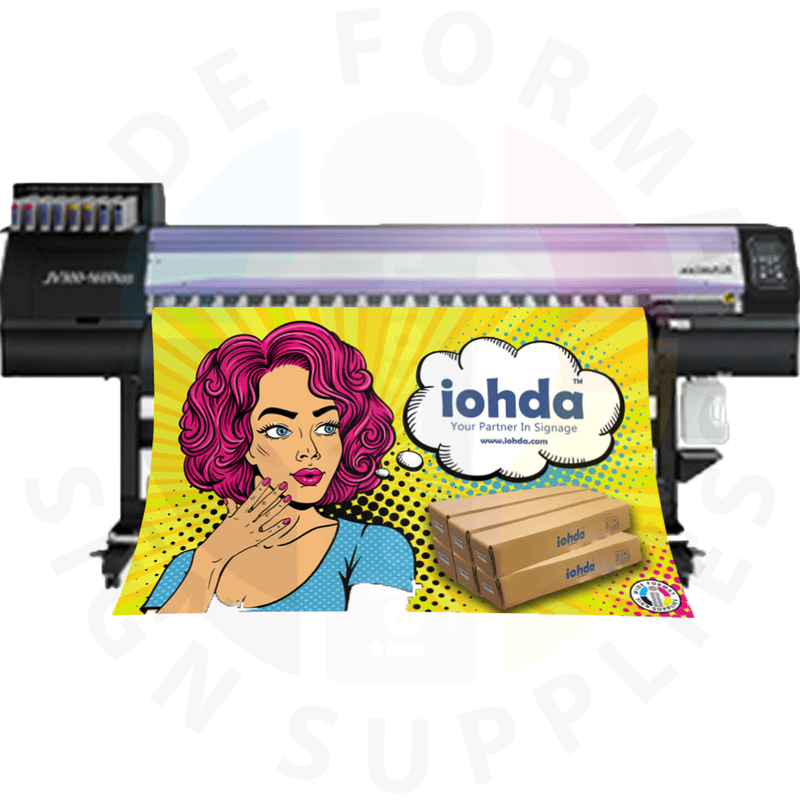

Mimaki Printer Plus JV300-160

Specifications

• Printhead: On-demand piezo, two staggered print heads per color

• Print Resolutions: 360 dpi, 540 dpi, 720 dpi, 1,080 dpi, 1,440 dpi

• Print Speed (4-Color Mode): Up to 1,140 ft²/h (105.9 m²/h)

• Maximum Print Width: 63.4″ (1,610 mm)

• Maximum Media Width: 63.7″ (1,620 mm)

• Maximum Media Thickness: Up to 1.0 mm (0.039″)

• Maximum Media Weight: 88.2 lbs (40 kg) per roll

• Ink Types: SS21, ES3, BS3, BS4, Sb54

• Interface: USB 2.0, Ethernet 1000BASE-T

• Power Supply: Single-phase AC100–120V / AC200–240V

• Power Consumption: 1.44 kW (AC100–120V), 1.92 kW (AC200–240V)

• Operational Environment: 68–86°F (20–30°C), Humidity 35–65% RH (Non-condensing)

• Certifications: VCCI Class A, FCC Class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), REACH, Energy Star, RCM, EAC

Highlights

• High-speed printing up to 1,140 ft²/h (105.9 m²/h) in 4-color mode

• Advanced print technology with MAPS4 for smooth gradations and reduced banding

• Supports a wide range of inks including SS21, ES3, BS3, BS4, and Sb54

• Equipped with 3-way intelligent heater for improved media adhesion

• ID Cut function enables efficient cutting operation with compatible cutters

• User-friendly interface with intuitive control panel

Applications

• Signage: Banners, posters, window graphics

• Vehicle Wraps: Full and partial wraps

• Interior Décor: Wallpapers, murals

• Apparel: Sportswear, fashion textiles

• Soft Signage: Flags, fabric displays

• Point of Sale: Display graphics, promotional materials

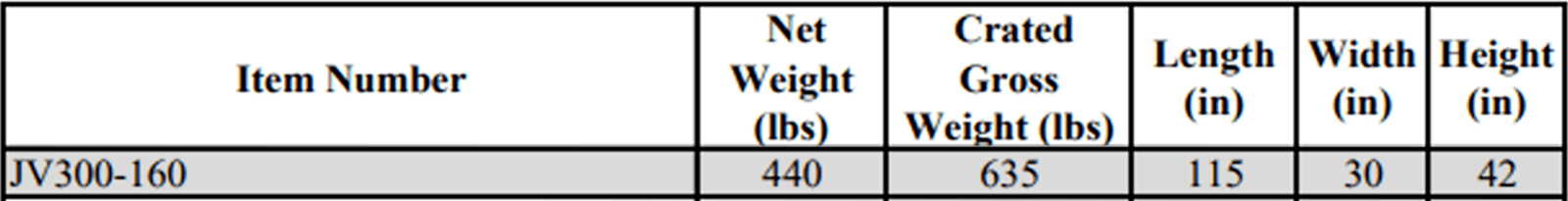

Printer Size & Weight

• Dimensions (L × W × H): 115″ × 30″ × 42″

  • Millimeters: 2,921 × 762 × 1,067 mm

  • Feet: 9.58 × 2.5 × 3.5 ft

• Net Weight: 440 lbs (200 kg)

Shipping Information

• Packaged Dimensions: Approximately 123″ × 36″ × 48″ (3,124 × 914 × 1,219 mm) — includes crate and protective padding

• Shipping Weight: Approximately 500 lbs (227 kg) — accounts for crate and packing materials

• Shipping Requirements: Forklift or pallet jack required for unloading

• Minimum installation floor space: 15′ × 8′ (4.6 m × 2.4 m)

• Clearance required around printer for operation and maintenance: 3′ (0.9 m)

Recommended Inks

• Mimaki Ink ECO SS21 440 mL Cartridge

• Mimaki Ink ECO SS21 2 L Bag

• Mimaki SS22 440 mL Cartridges

• Mimaki Ink ECO BS4 600 mL Bag

• Mimaki Ink ECO BS4 2 L Bag

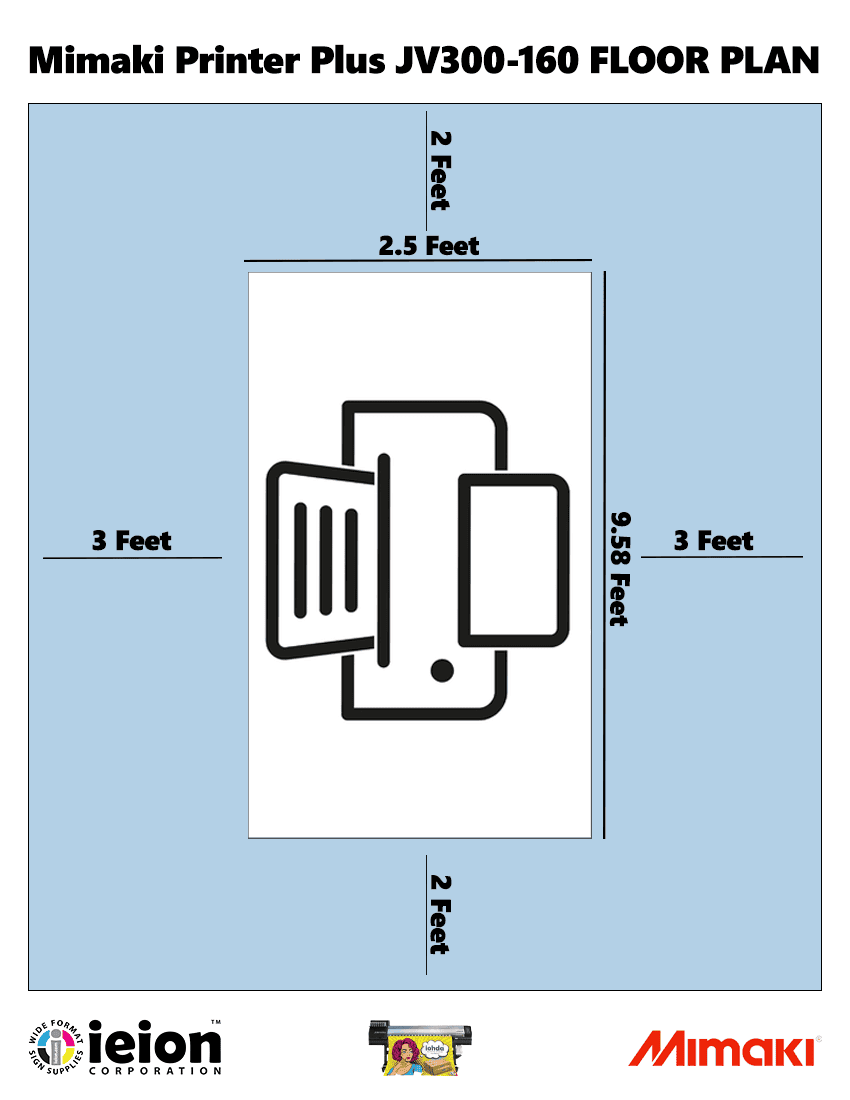

Floor Plan
