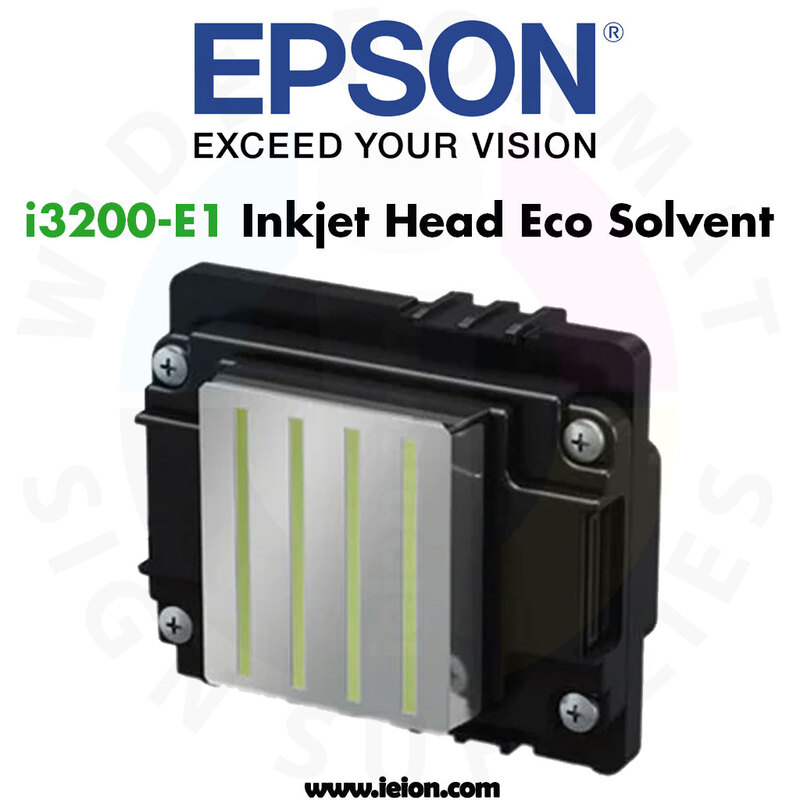

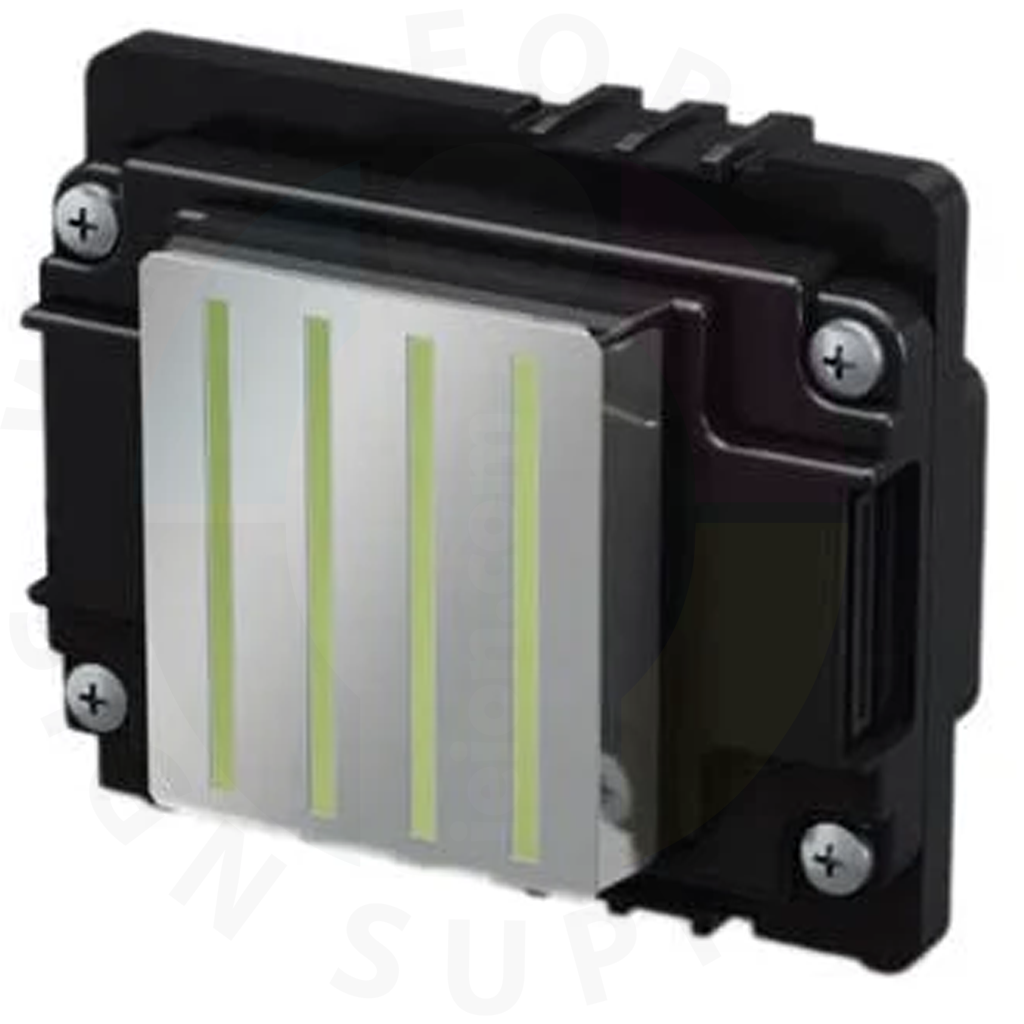

Epson Print head i3200 E1 Ecosolvent

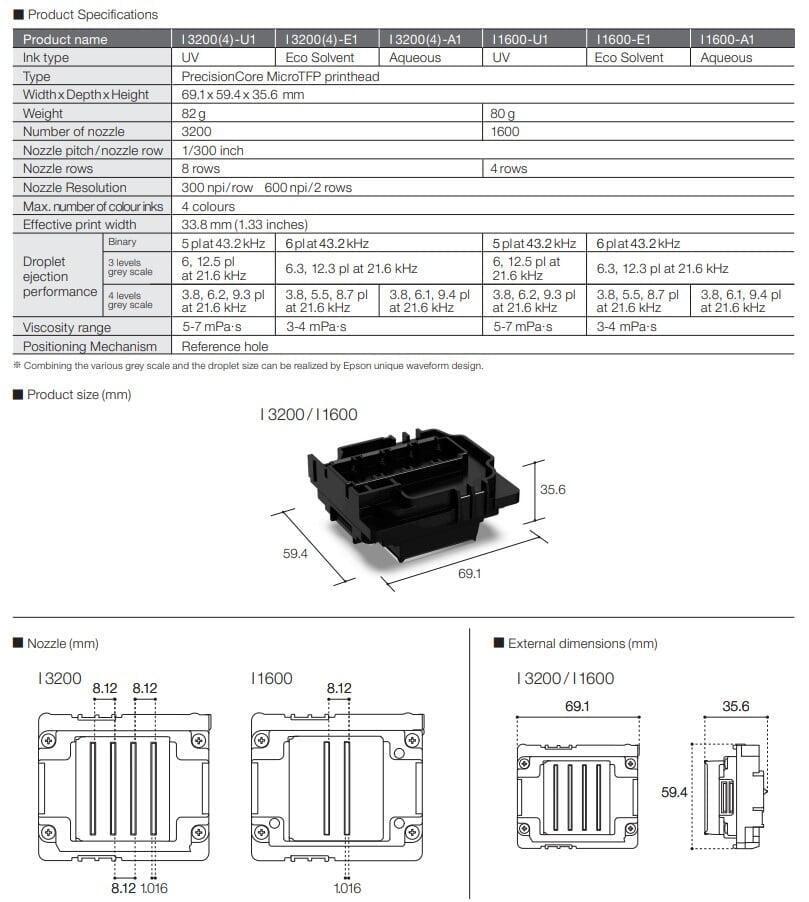

Specifications & Highlights

Model: Epson i3200-E1
Ink Type: Eco-Solvent
Technology: PrecisionCore MicroTFP
Dimensions (WxDxH): 69.1 × 59.4 × 35.6 mm
Weight: 82g
Nozzles:

• Total: 3200

• Nozzle Rows: 8

• Nozzle Pitch: 1/300 inch

• Resolution: 600 npi (2 rows), 300 npi (per row)

Color Support: Up to 4 colors
Effective Print Width: 33.8 mm (1.33 inches)
Droplet Ejection Performance:

• Binary: 6 pl at 43.2 kHz

• 3-level grayscale: 6.3, 12.3 pl at 21.6 kHz

• 4-level grayscale: 3.8, 5.5, 8.7 pl at 21.6 kHz
  Ink Viscosity Range: 3–4 mPa·s
  Country of Origin: Japan
