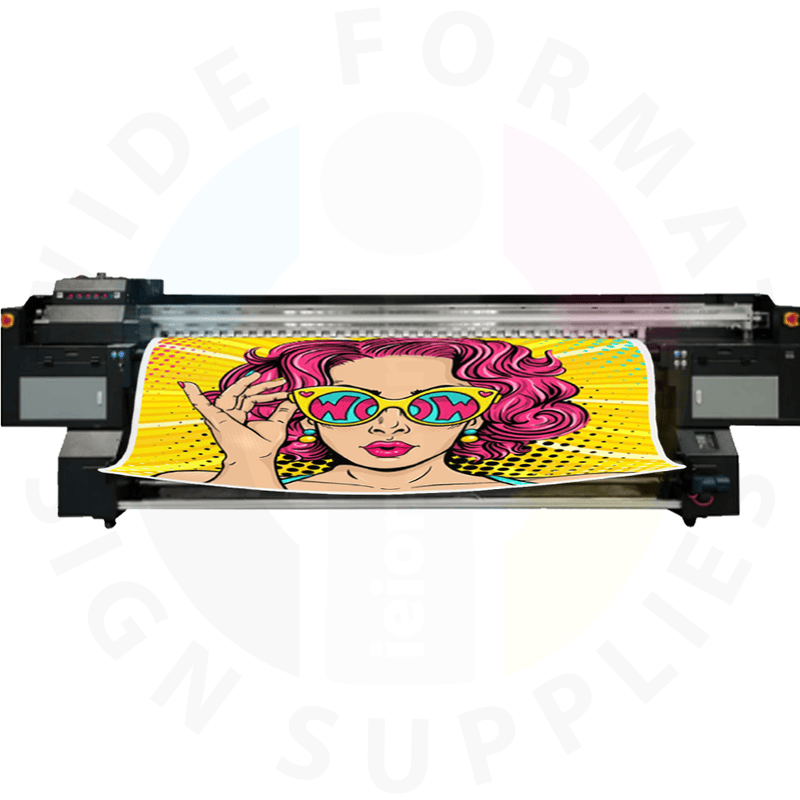

The Allwin Printer UV SO 126 is a wide-format roll-to-roll UV LED printer designed for high-volume printing on flexible media up to 126 inches (10 feet) wide. Engineered for safe and stable operation, this printer features high-quality components and an open bulk ink system with 1.5-liter tanks per color, free of chip restrictions.
Ideal for print shops seeking to maximize productivity and quality, the Allwin Printer UV SO 126 comes bundled with SAI FlexiPrint RIP software for professional color management and workflow control.
🔧 Print Head Configuration Options
This printer supports a scalable setup with up to 12 Konica 1024a print heads, arranged in 2 rows (up to 6 heads per row):
Option A: 4 Print Heads
Option B: 5 Print Heads
Option C: 6 Print Heads
Option D: 8 Print Heads
Option E: 10 Print Heads
Option F: 12 Print Heads
⚠️ Note:Print heads are sold separately. Please view the recommended products below.
🔹 Highlights
126-inch wide UV LED printing for flexible media.
Open bulk ink system with 1.5L tanks per color – no chips required.
Konica 1024a print heads offer durability and precision.
Color configuration: CMYK + Optional White.
SAI FlexiPrint RIP software included for advanced color control.
Scalable print head setup – start with 4 and expand up to 12.
Two-row head layout for high-speed production.
Ideal for wide-format applications in banners, vinyl, mesh, and more.

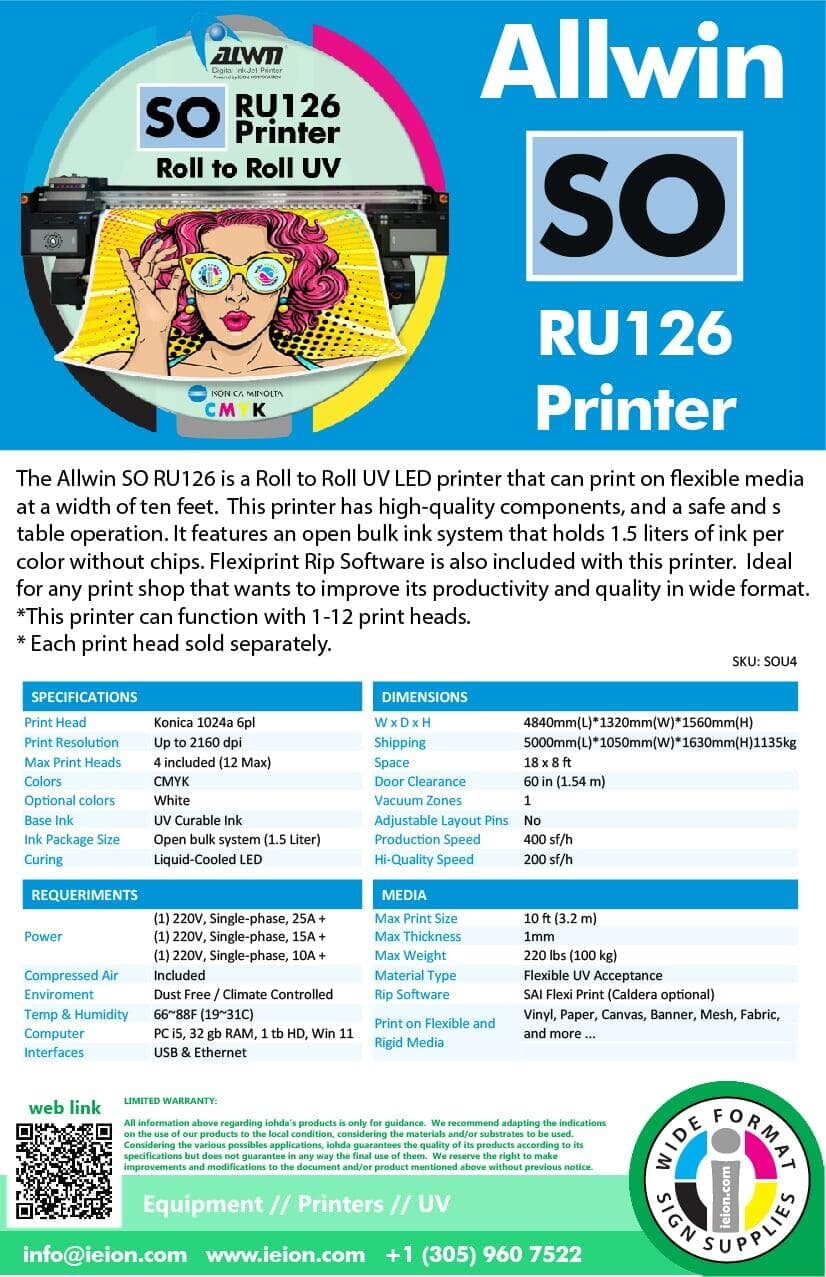

📋 Technical Specifications
Feature | Description |
|---|
Model | Allwin SO RU126 |
Print Technology | Roll-to-Roll UV LED |
Print Width | Up to 126 inches (10 ft) |
Print Heads | Supports 4 to 12 Konica 1024a (not included) |
Head Layout | 2 Rows – Up to 6 heads per row |
Ink System | Open bulk system (chip-free), 1.5L per color |
Ink Colors | CMYK + Optional White |
Software Included | SAI FlexiPrint RIP |
Component Quality | High-quality components throughout |
Power Supply | 220V / 5kVA |
Power Protection | Voltage stabilizer recommended |
🆚 Allwin vs Mimaki UJV55 Comparison
Feature | Allwin SO RU126 | Mimaki UJV55 |
|---|
Print Head Lifetime | Up to 10 years | Around 3 years |
Print Head Cost | ~40% lower than Mimaki | Higher |
Head Usage | 1 head per color | 1 head for 4 colors |
Ink System | Open bulk (Agfa inks) | Chip-controlled (LUS-120) |
Ink Cost | ~20% lower than Mimaki inks | Higher |
