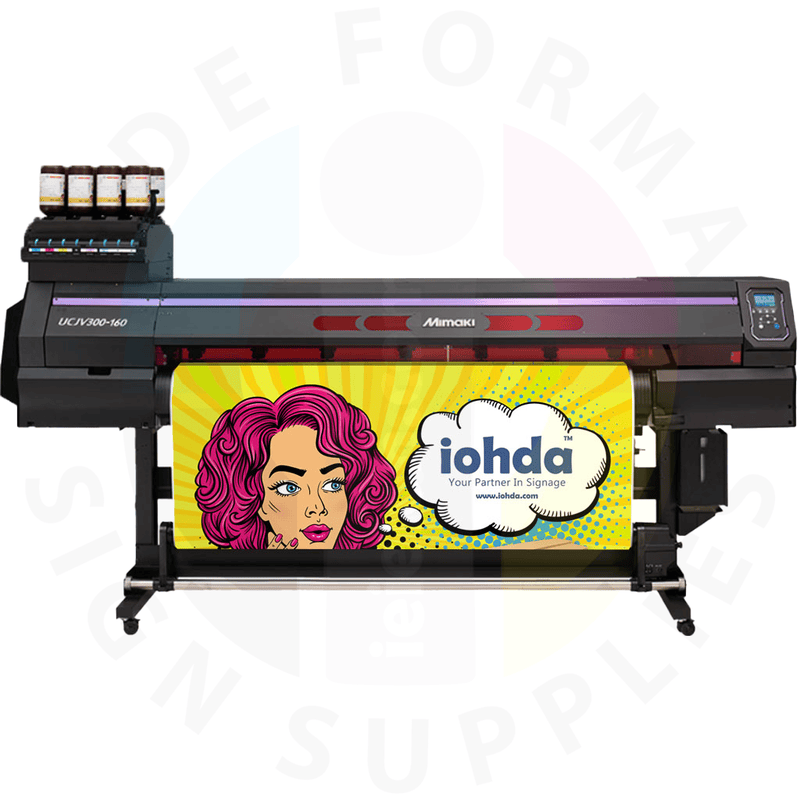

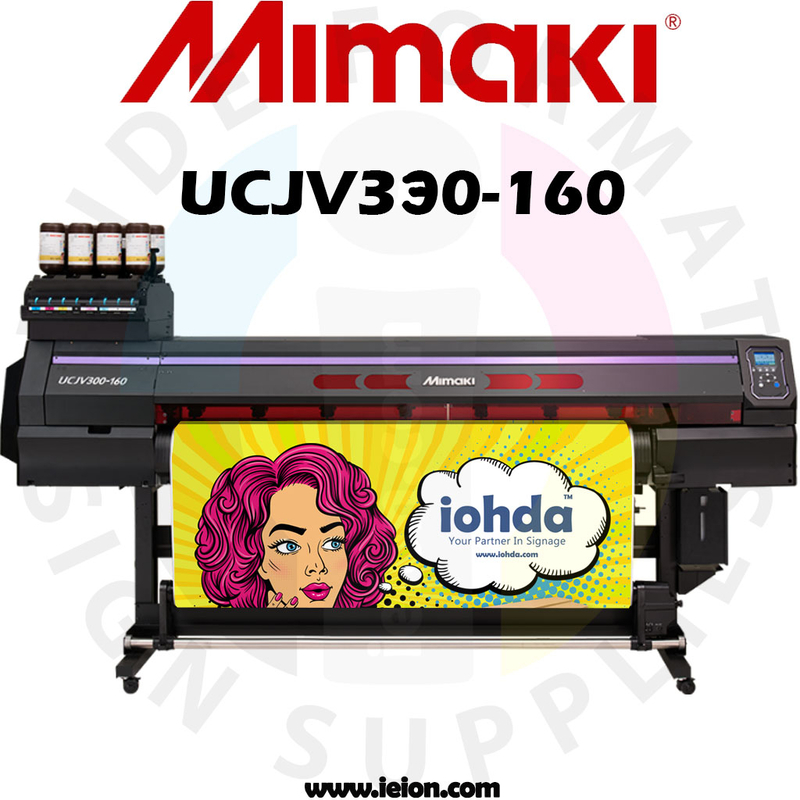

Mimaki Printer & Cutter UCJV330-160 LED UV

Specifications

• Printheads: 2 × on-demand piezo (staggered)

• Print Resolution: 600, 1,200, 1,800 dpi

• Ink Types / Colors: LUS‑170 UV‑LED (C, M, Y, K, Light Cyan, Light Magenta, White, Clear); LUS‑200 UV (C, M, Y, K, White)

• Ink Size / Circulation: 1 L bottles; white ink circulation via MCT v2

• Maximum Print Width: 1,610 mm (63.4″)

• Maximum Media Width: 1,620 mm (63.8″)

• Media Thickness: up to 1.0 mm

• Media Roll Diameter: ≤ 250 mm

• Media Roll Weight: up to 45 kg per roll; optional 3-roll media changer up to 90 kg

• Cutting: Auto cutting via head unit; speed up to 300 mm/s; pressure 10–450 gf; repeatability ±0.2 mm

• Interface: Ethernet 1000BASE-T, USB 2.0 Hi-Speed

• Power: Single-phase AC100–120 V or 200–240 V ±10%, 50/60 Hz

• Power Consumption: Max 1,440 W; continuous 800 W; sleep 4.5 W

• Operating Environment: 20–30 °C, 35–65% RH

• Certifications: VCCI Class A, FCC Class A, ETL IEC 62368‑1, CE, CB, REACH, Energy Star, RCM, KC, UKCA

Highlights

• Integrated LED UV curing enables instant-dry prints and lower energy use

• Supports white and clear inks for underbase, varnish, or textured effects

• Print and cut in one pass, reducing production time and waste

• Multi-roll option increases productivity with up to 3 rolls

• Circulating white ink maintains consistent print quality

• High-resolution printheads allow sharp detail at 600–1,800 dpi

Applications

• Signage and display graphics

• Architectural and decorative panels

• Vehicle decals and window graphics

• Promotional graphics and labels

• Textured effects or spot varnish with clear ink

• Multi-layer or dimensional graphics

Printer Weight and Size

• Weight: 414.5 lb (188 kg)

• Dimensions (W × D × H): 2,900 × 776 × 1,475 mm → ~9.51 ft × 2.55 ft × 4.84 ft

• Recommended Clearance: ~10 ft width × ~4 ft depth for media handling and operator access

Shipping Information

• Packaged Weight: 414.5 lb (188 kg)

• Packaged Dimensions: ~10 ft × 3 ft × 5 ft

Recommended Inks

• Mimaki Ink UV LUS 170 1 L Bottle

• Mimaki Ink UV LUS 175 1 L Bottle

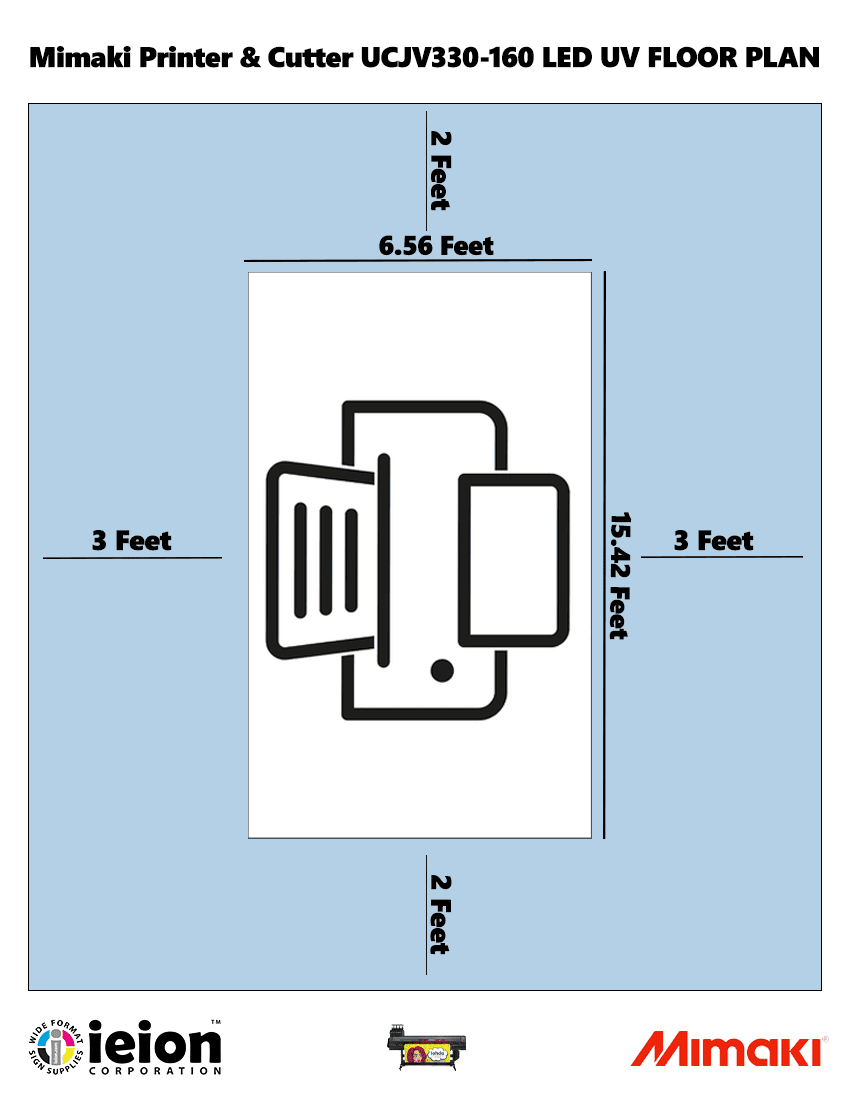

Floor Plan
