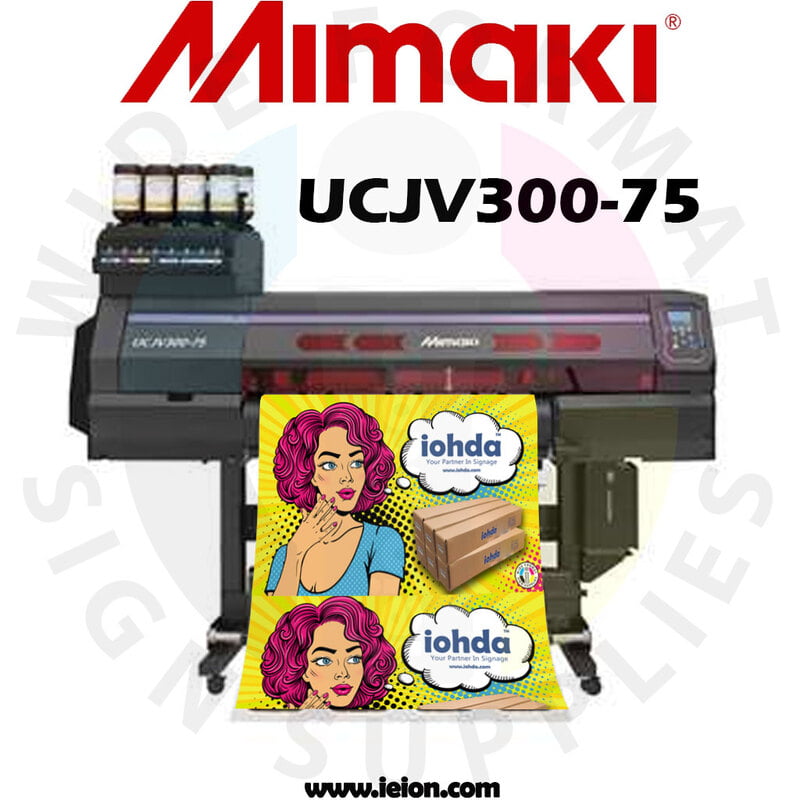

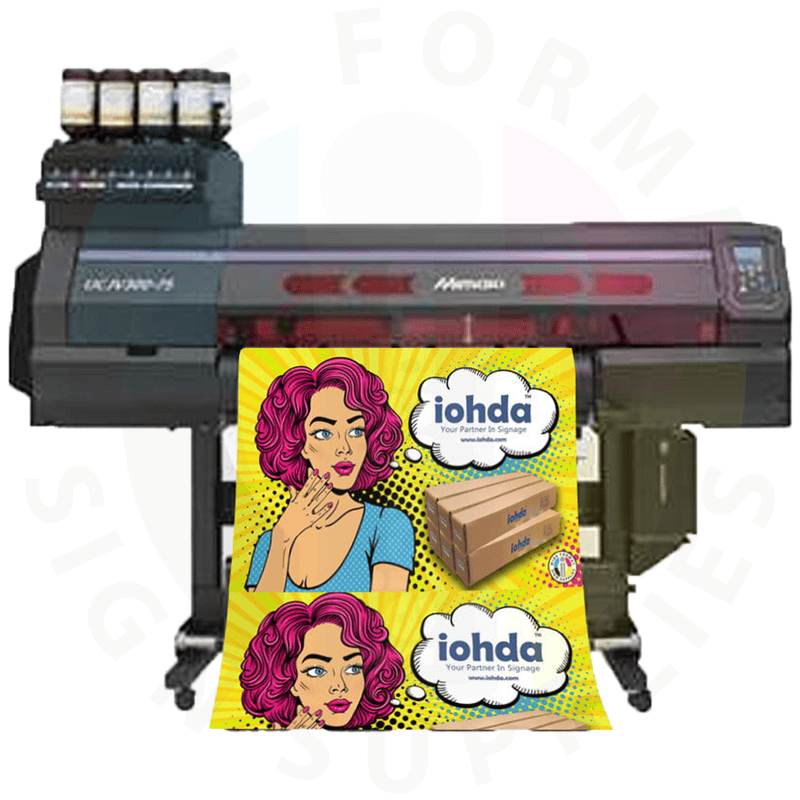

Mimaki Printer & Cutter UCJV300-75 LED UV

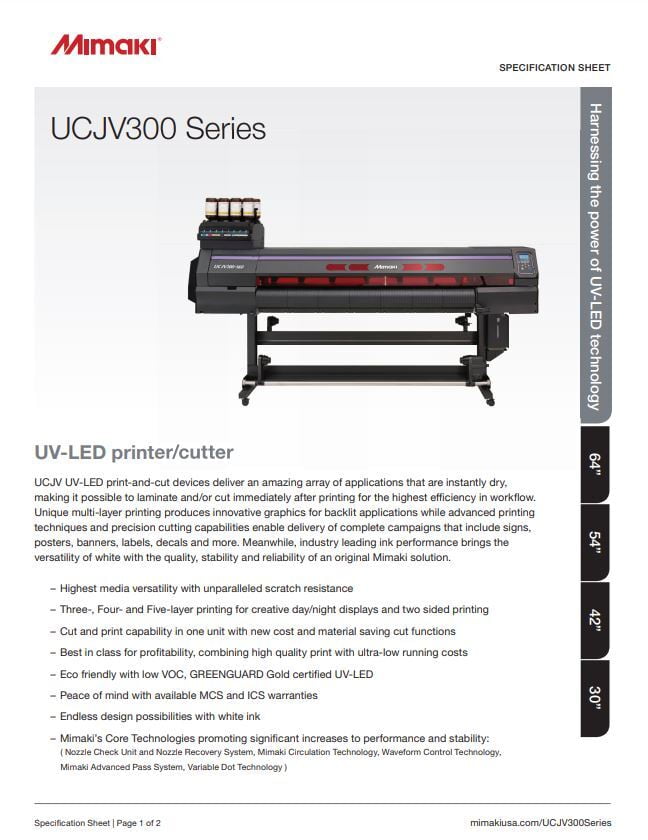

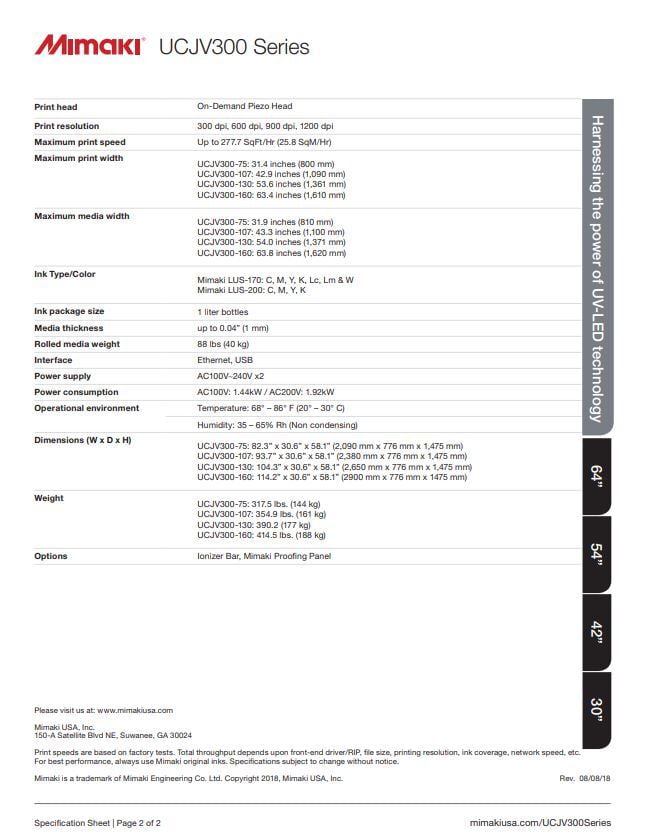

Specifications

• Print Technology: UV-LED curing

• Integrated Function: Print & cut system

• Maximum Print Width: 29.5 in (750 mm)

• Printhead Type: Piezo drop-on-demand

• Maximum Resolution: Up to 1200 dpi

• Ink Type: UV-LED (CMYK + White + Clear optional)

• Cutting Method: Drag-knife contour cutting

• Multi-Layer Printing: Up to 4 layers (Day/Night applications)

• Max Media Thickness: Up to 1.0 mm

• Interface: USB / Ethernet

• Power Supply: AC 100–240V, 50/60Hz

• Operating Environment: 20–30°C / 35–65% RH

Highlights

• Instant UV-LED curing for fast and efficient production

• Built-in print-and-cut functionality for seamless workflow

• White and clear inks for premium visual effects

• Supports multi-layer printing for backlit signage

• High color vibrancy and excellent detail sharpness

• Low heat LED curing ideal for heat-sensitive materials

• Energy-efficient, low-maintenance system

Applications

• Stickers and labels

• Window graphics

• POP and retail displays

• Backlit and day/night signage

• Packaging prototypes

• Contour-cut decals

• Indoor & outdoor advertising graphics

Printer Size & Weight

• Dimensions (L × W × H): 2090 × 776 × 1475 mm
  ≈ 82.3 × 30.5 × 58.1 inches
  ≈ 6.9 ft × 2.5 ft × 4.8 ft

• Net Weight: 144 kg
  ≈ 317 lbs

Shipping Information

• Packaged Dimensions: Approx. 2200 × 850 × 1600 mm
  ≈ 86.6 × 33.5 × 63 inches

• Shipping Weight: Approx. 180–190 kg
  ≈ 397–419 lbs

• Crated securely for transport; forklift or pallet jack recommended

Recommended Inks

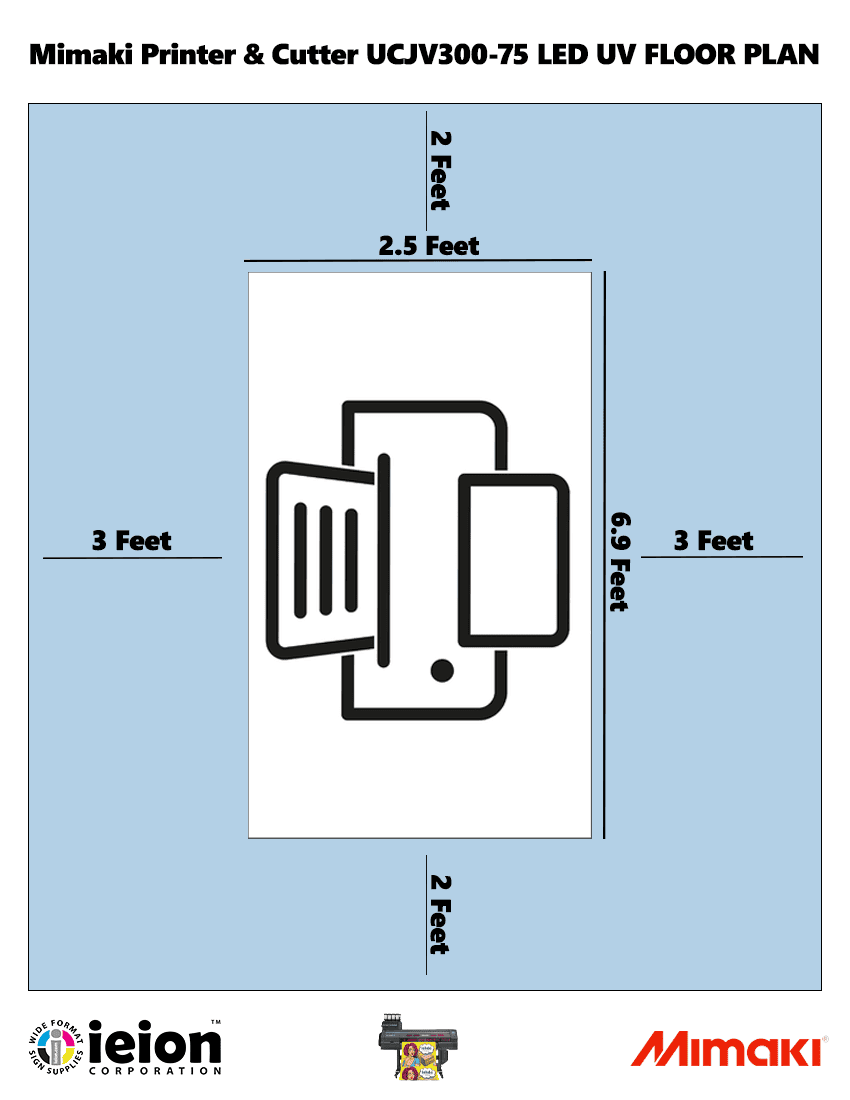

Floor Plan
