Specifications

• Base: Polyester (PET) backlit film

• Finish / Color:White matte (front-print)

• Thickness / Caliper:215 μm (≈ 8.5 mil)

• Roll Size:54 in × 100 ft (≈ 1.37 m × 30 m)

• Ink Compatibility:Eco-solvent (profile for front-print backlit / “double strike” as needed)

• Coating: High-density matte diffusion layer for uniform backlighting

• Opacity / Transmission: Optimized for lightbox contrast (request data sheet for exact values)

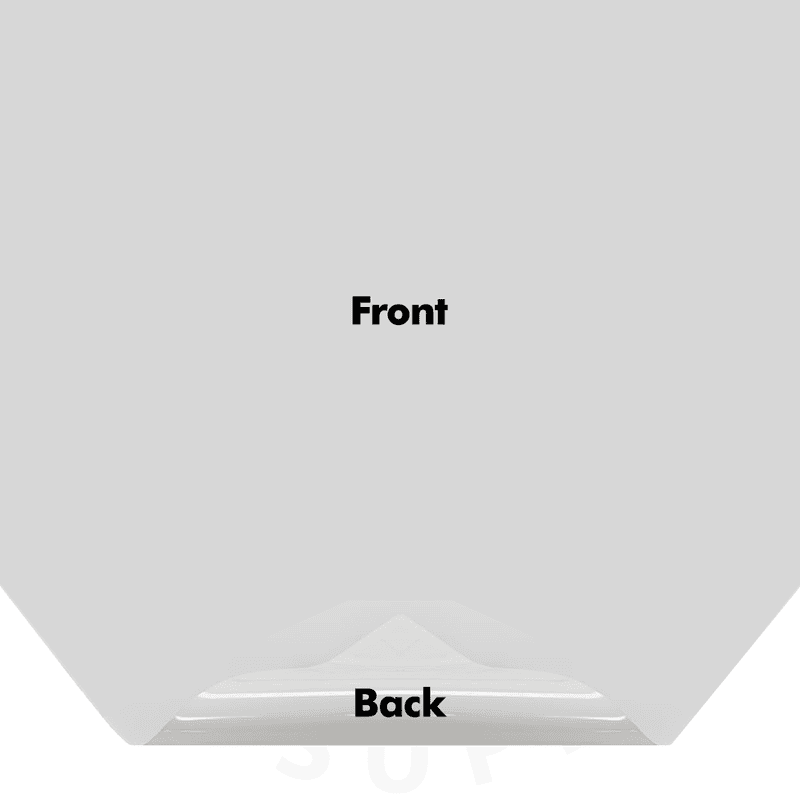

• Printing Sides: Front-print (image side matte)

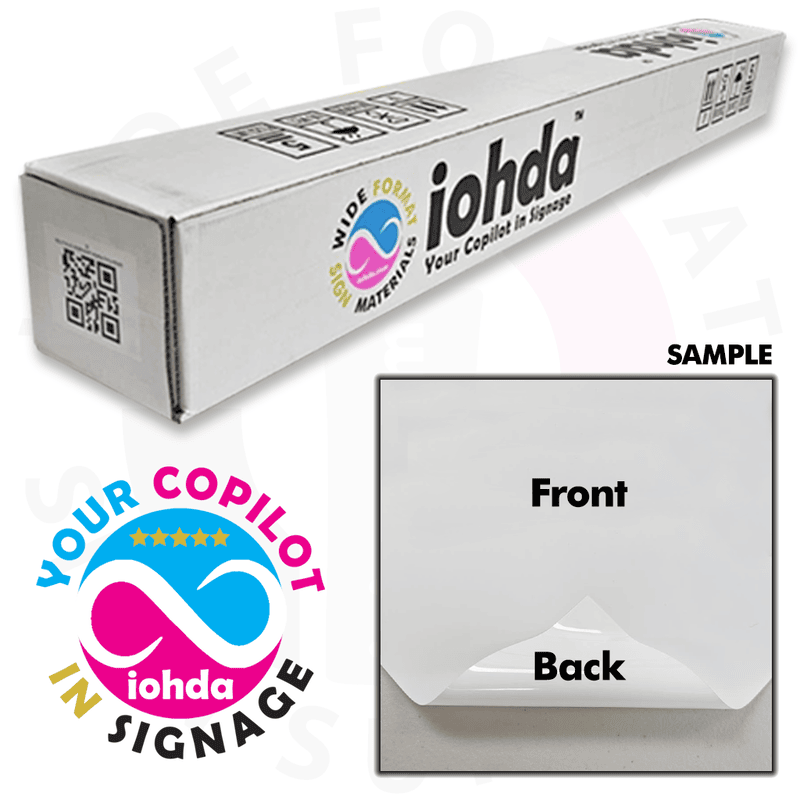

• Packaging: Core-wound roll; protective bag in carton/box

Highlights

• Even Light Diffusion: Matte diffusion layer reduces hotspots and banding in LED lightboxes.

• High Image Density: Supports double-ink passes for rich blacks and vibrant color when illuminated.

• Low-Glare Surface: Readable up close; minimizes reflections under ambient lighting.

• Dimensional Stability: PET base resists curl and shrink for clean mounting.

• Production Friendly: Fast, clean drying with Eco-solvent and consistent color across panels.

Use & Details

• Applications: Retail lightboxes, menu boards, transit/airport backlits, mall posters, exhibit graphics.

• Printing Tips:

  • Select a front-print backlit profile; use increased ink limits or double strike for best lit density.

  • Allow prints to fully cure/outgas before trimming and mounting.

• Finishing & Mounting:

  • Mount face-out to acrylic/glass or tension in a lightbox frame; avoid excessive heat during mounting.

  • Lamination is optional; if needed, use a thin optically clear or matte protective film.

• Handling & Storage: Acclimate to 64–77 °F (18–25 °C), 35–65% RH; handle with lint-free gloves; store in original bag/tube away from heat and sunlight.
