The Allwin ECO/SUB RE 63 is a high-performance roll-to-roll printer designed for professional printing on flexible materials. Built with premium components, it features an open bulk ink system (chip-free) with 1.5-liter tanks per color, ensuring safe and stable operation.
This model supports up to four Epson i3200 print heads (not included) and is compatible with eco-solvent or sublimation inks, offering maximum flexibility for different production needs. The RE 63 can print on one or two rolls simultaneously across its full 63-inch width and includes three media loading configurations:
Two rolls of 24" or 36"
One roll of 36" and another of 27"
One large-format roll up to 63"
To ensure optimal drying and media handling, it features five levels of drying, including pre-heaters, plate heaters, post-heaters, front fans, and holofans—ideal for demanding materials like cast vinyl. Anti-collision head protectors on both sides of the carriage, two support tables, and the included SAI FlexiPrint RIP software enhance safety, precision, and productivity.
Available Offer
Specifications:
Model: Allwin Printer ECO/SUB RE 63
Print Heads: Supports up to 4 Epson i3200 (not included)
Ink Compatibility: Eco-solvent or Sublimation
Ink System: Open bulk system (chip-free), 1.5 L per color
Media Configurations:
Two rolls of 24" or 36"
One roll of 36" and another of 27"
One large-format roll up to 63"
Drying System: 5 levels – pre-heaters, plate heaters, post-heaters, front fans, holofans
Safety Features: Anti-collision head protectors
Software Included: SAI FlexiPrint RIP
Scalability: Ready to start with 1 head and scale up to 4
Color Profiles: Custom ICC profiles for original Allwin inks
Ink Durability: Up to 2 years outdoor durability
Ink Performance: Excellent dot gain and color accuracy
Component Quality: High-quality components throughout
Power Supply: 220V / 5kVA
Power Protection: Voltage stabilizer recommended
Highlights:
High-performance 4-head, 4–8 color printing
Dual ink system compatibility (Eco-solvent & Sublimation)
Open bulk ink system with no chip restrictions
Epson i3200 print heads for high quality and speed
Excellent color accuracy and vibrant output
High-quality components for long-term reliability
SAI FlexiPrint RIP software included
Anti-collision head protectors for safe operation
1-year warranty on non-consumable parts and technical support
Custom ICC profiles for Allwin inks
Applications and Uses:
Textile and fabric printing
Banners and posters
Custom apparel and soft signage
Stickers, decals, and promotional materials
Indoor and outdoor graphic production
Cast vinyl and other demanding flexible materials
Printer Size and Weight:
Length: 10.79 ft (3290 mm / 129.5 in / 3.29 m)
Width: 3.26 ft (995 mm / 39.1 in / 1 m)
Height: 6.11 ft (1860 mm / 73.2 in / 1.86 m)
Weight: 970 lb (440 kg)
Shipping Information:
Package Dimensions: 11.15 ft × 3.02 ft × 3.67 ft (3400 × 920 × 1120 mm / 3.4 × 0.92 × 1.12 m)
Total Weight: 1,030 lb (470 kg)
Recommended Inks:
Ecosolvent:
Allwin ECO 1 L Bottle
Bordeaux FUZE MX 1 L Bottle
Bordeaux FUZE MS33 1 L Bottle
· Sublimation:
Allwin SUB 1 L Bottle
Bordeaux EDEN TX2 1 L Bottle

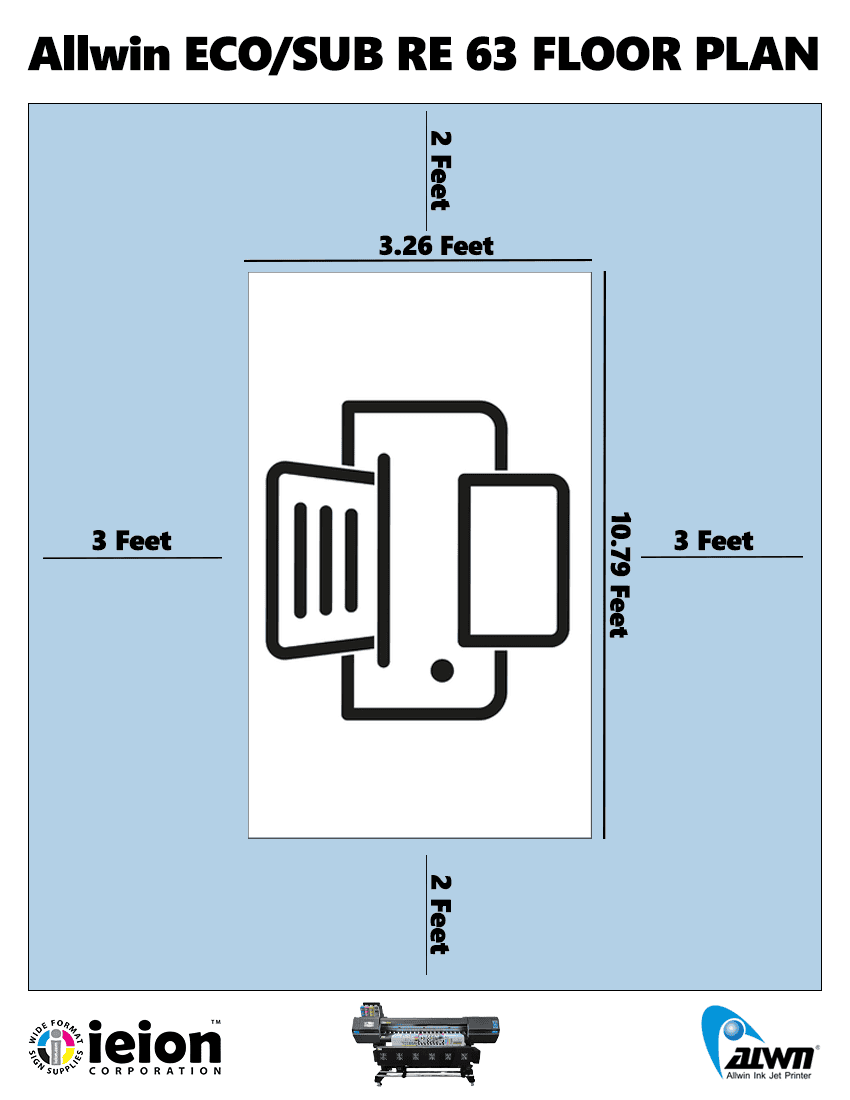

Floor Plan:
Equipment Type
- Equipment Type:Printers
Printers Specifications
- Printheads:Epson i3200
- Base System:Roll to Roll
- Main feature:Print
- Rip Software:SAI Flexi
- Computer Included:No
- Max Media Weight:110 lbs
- Ink System:Open
- Power Supply:220v
- Power Consumption:4kVA
- Interface:Ethernet
- Vacuum Table Zones:1
- Adjustable Layout Pins:No
- Waveform control:Yes
- Variable Dot Technology:Yes
- Fine Difussion:Yes
- Ink Circulation:No
- Nozzle Recovery System:Yes
- Printer Ink Base:Solvent
