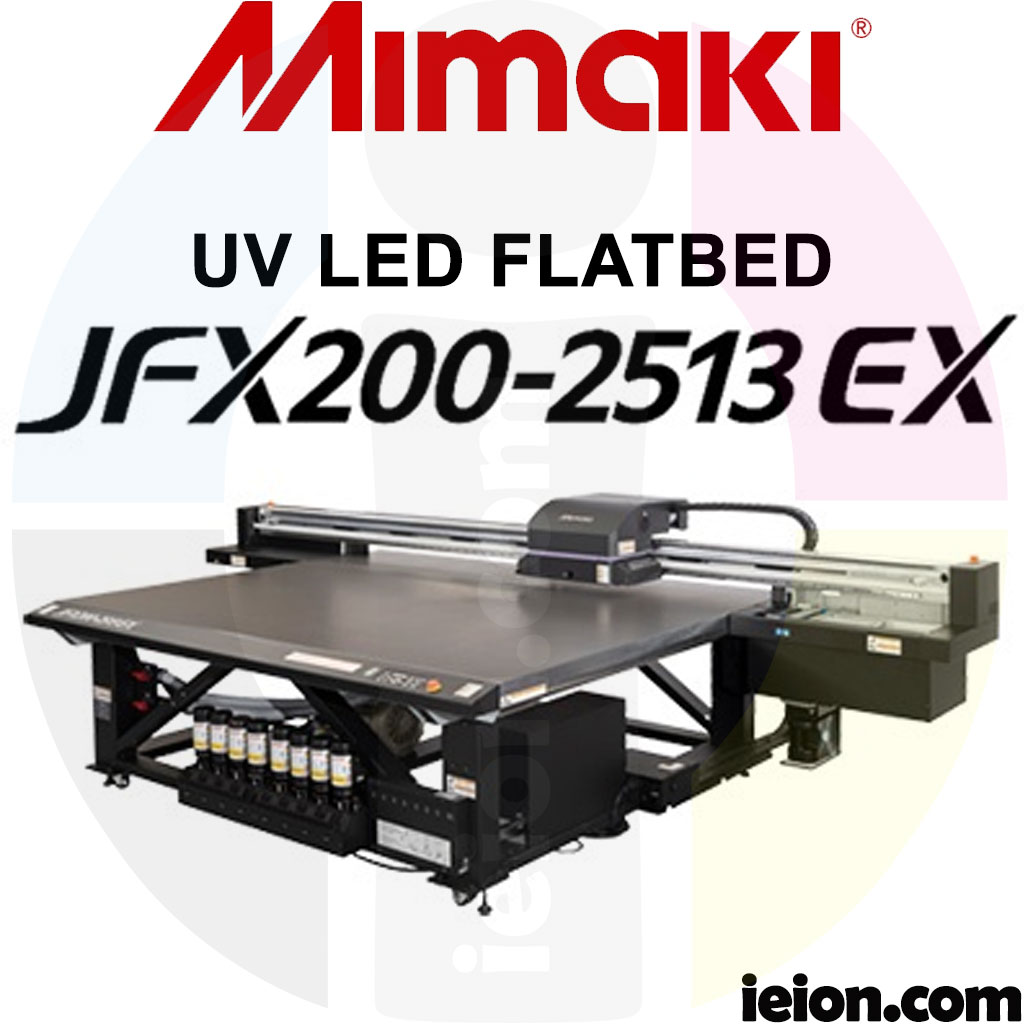

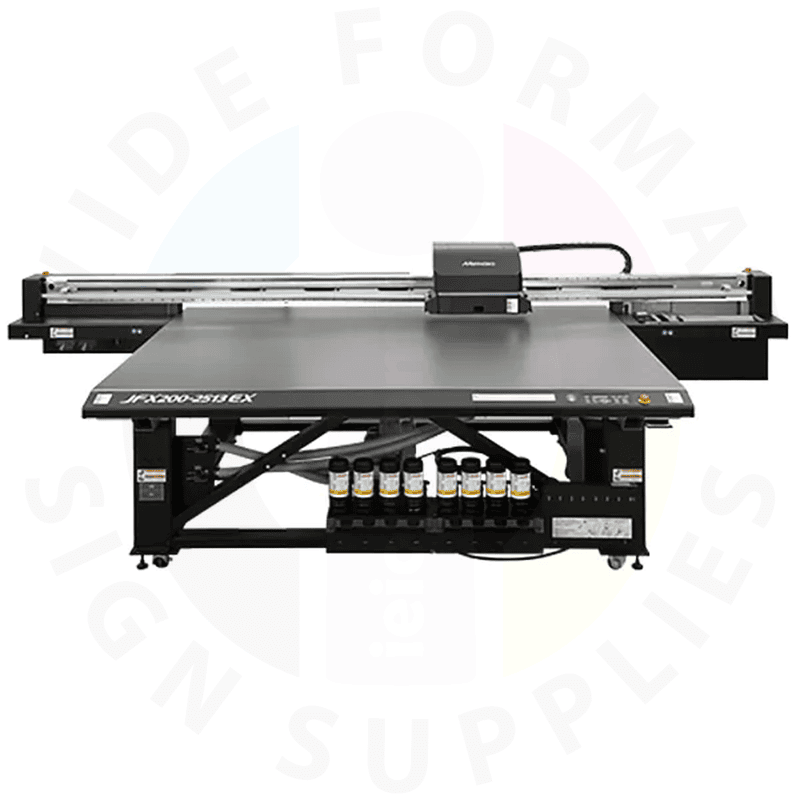

Mimaki Printer Flatbed EX UV-LED JFX200-2513

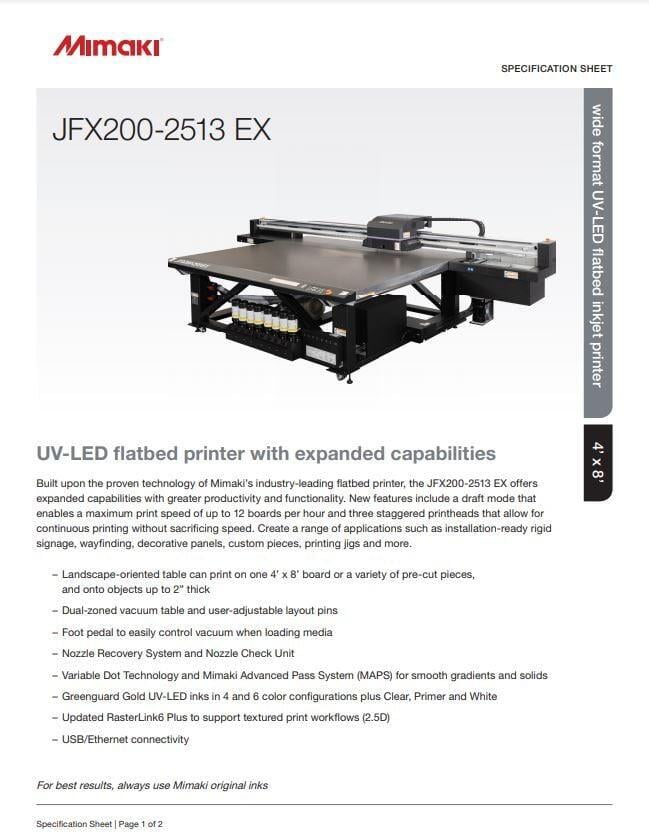

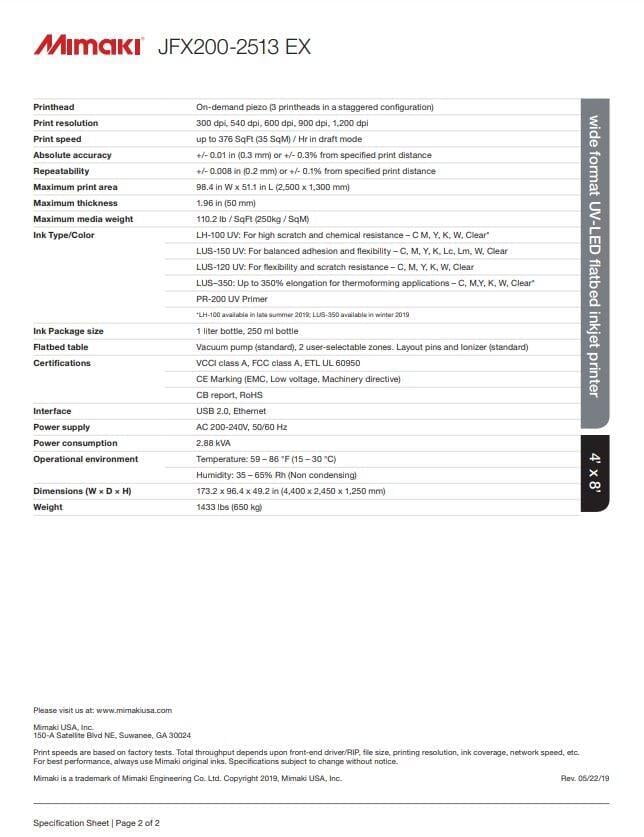

Specifications

• Printhead: Three on-demand piezo printheads in a staggered array

• Print Resolution: 300, 450, 600, 900, 1,200 dpi

• Print Speed (4-Color Mode): Up to 377 ft²/h (31.9 m²/h)

• Maximum Print Area: 98.4″ × 51.2″ (2,500 × 1,300 mm)

• Maximum Media Thickness: Up to 2.0″ (50 mm)

• Maximum Media Weight: 110.2 lb/ft² (250 kg/m²)

• Ink Type: UV-LED inks (LUS-170 series)

• Interface: USB 2.0, Ethernet

• Power Supply: Single-phase AC 200–240V, 50/60 Hz, less than 12 A

• Power Consumption: 2.88 kVA

• Operational Environment: 15–30°C (59–86°F), Humidity 35–65% RH (non-condensing)

• Certifications: CE, UL, RoHS, REACH

Highlights

• High productivity with print speeds up to 377 ft²/h (31.9 m²/h)

• Large format printing up to 98.4″ × 51.2″ (2,500 × 1,300 mm)

• Supports thick substrates up to 2.0″ (50 mm)

• Three staggered piezo printheads for enhanced print quality

• 2.5D texture printing for tactile effects

• Eco-friendly, low-VOC UV-LED inks

• User-friendly operation with foot pedal-controlled vacuum and adjustable layout pins

• Includes Nozzle Recovery System (NRS) and Auto Nozzle Check Unit (NCU)

Applications

• Signage: Indoor and outdoor signs, wayfinding systems

• Displays: Point-of-purchase displays, exhibition graphics

• Interior Décor: Wall panels, custom wallpapers

• Packaging: Prototype and custom packaging

• Industrial: Control panels, equipment labels

• Art and Design: Art reproductions, decorative panels

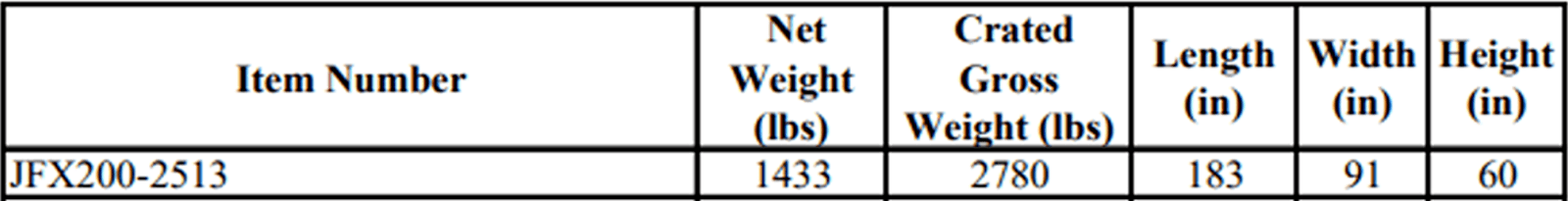

Printer Size & Weight

• Printer Dimensions (L × W × H): 183″ × 91″ × 60″

  • In millimeters: 4,650 × 2,311 × 1,524 mm

  • In feet: 15.25 × 7.58 × 5.0 ft

• Net Weight: 1,433 lb (650 kg)

Shipping Information

• Packaged Dimensions: Approximately 195″ × 100″ × 70″ (4,950 × 2,540 × 1,780 mm) — includes protective crate and padding

• Shipping Weight: Approximately 1,800 lb (816 kg) — accounts for crate, packing materials, and handling

• Shipping requires forklift or pallet jack for safe unloading

• Minimum installation floor space: 18′ × 10′ (5.5 m × 3.0 m)

• Ensure clearance around all sides for maintenance and operation

Recommended Inks

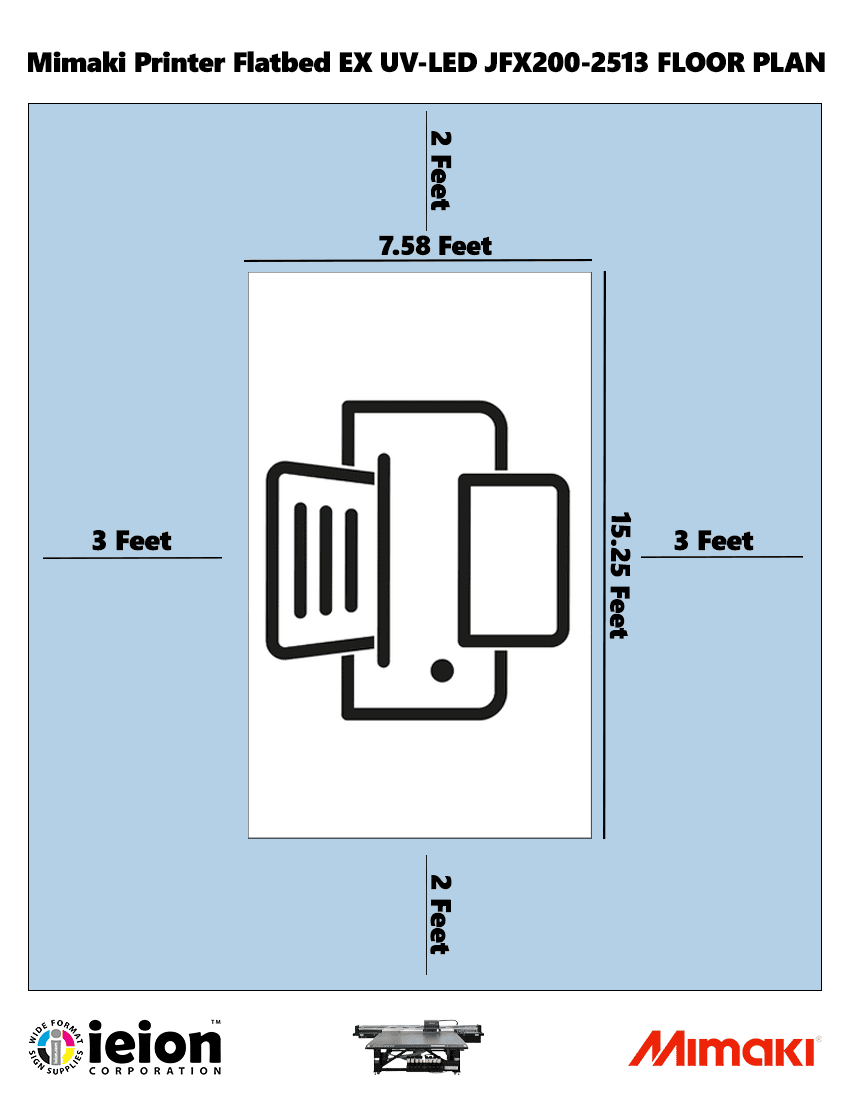

Floor Plan
