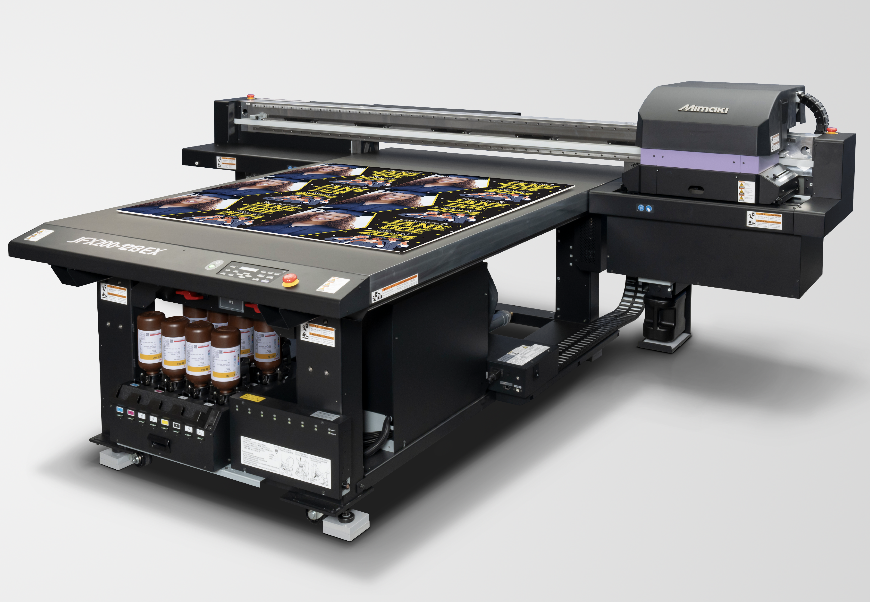

Mimaki Printer Inkjet JFX200-1213 EX

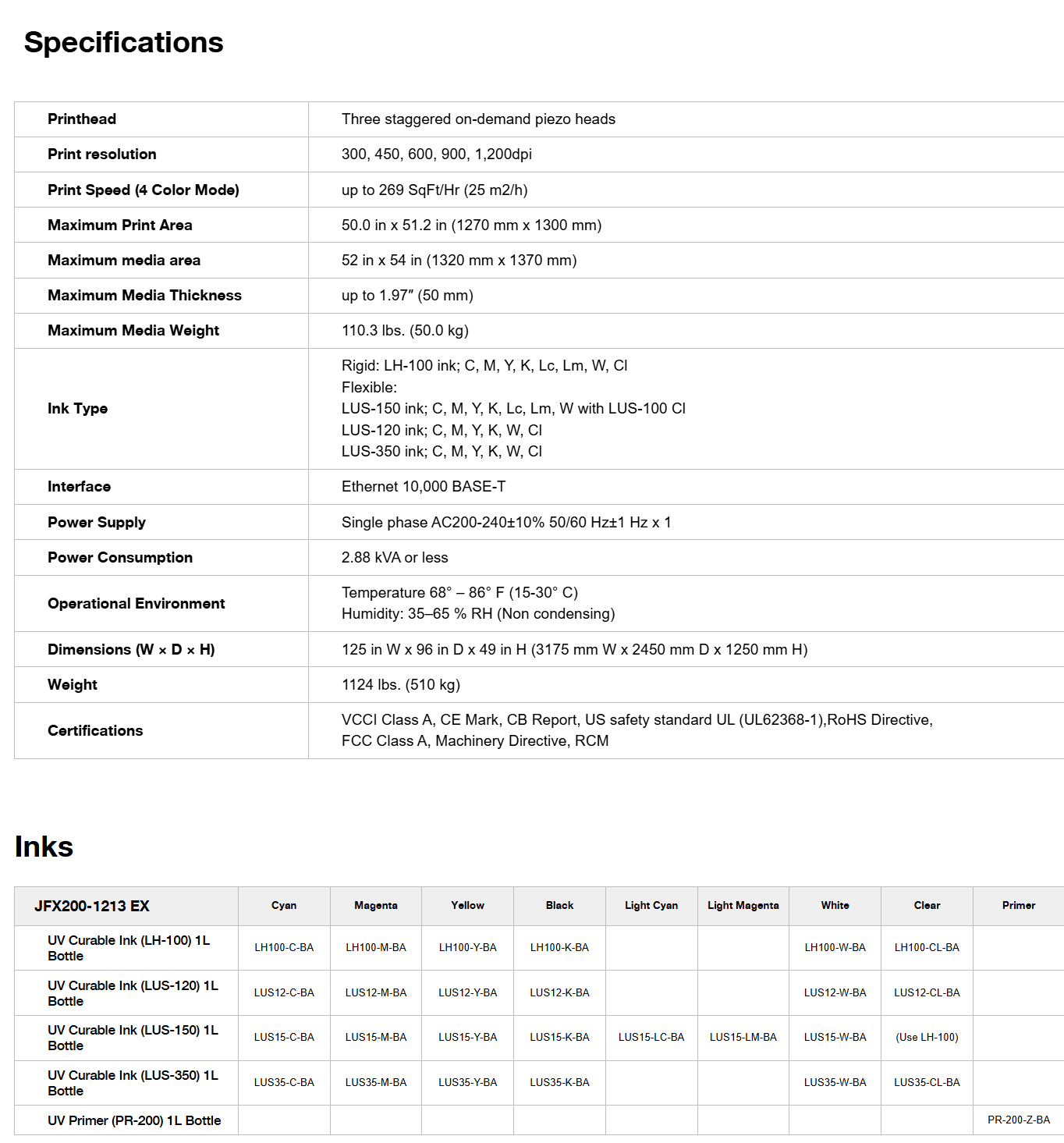

Specifications

• Print Heads: Three staggered on-demand piezo heads

• Print Resolutions: 300 / 450 / 600 / 900 / 1,200 dpi

• Maximum Print Area: 1,270 × 1,300 mm (50.0″ × 51.2″)

• Maximum Media Size: Approximately 1,320 × 1,370 mm (52″ × 54″)

• Maximum Media Thickness: Up to 50 mm (2.0″) standard

• Maximum Media Weight: Approx. 50 kg/m²

• Media Hold-Down: Dual-zone vacuum system with foot switch

• UV Curing System: LED-UV lamps

• Interface: USB 2.0 and Ethernet

• Power Supply: Single-phase AC 200–240 V

• Power Consumption: Up to 2.88 kVA

• Operating Environment: 15–30 °C (59–86 °F), 35–65% RH

• Certifications: VCCI Class A, CE, CB, UL, RoHS, FCC, RCM

• Dimensions (W × D × H):

  • 3,175 × 2,450 × 1,250 mm

  • 125.0″ × 96.5″ × 49.2″

  • 10.41 ft × 8.04 ft × 4.10 ft

• Weight: 510 kg / 1,124 lb

Highlights

• Compact medium-format design expands production capabilities without requiring the space of a traditional wide-format printer

• High versatility inks for printing on a wide range of rigid and flexible surfaces

• Capable of producing 2.5D textures and ADA-compliant signage

• Medium production volume capability (e.g., multiple 18″ × 24″ signs simultaneously or jig printing)

• White ink circulation system ensures consistent output

• Clear ink support for gloss, matte, and texture effects

• IoT-ready with remote monitoring via Mimaki PICT software for performance tracking and event notifications

• Uses Greenguard Gold certified inks for safe, eco-conscious printing

Applications

• Signage: ADA-compliant signs, retail displays, banners

• Textured surfaces and 2.5D applications

• Jig printing and multiple small-format signs simultaneously

• Industrial and decorative panels

• Promotional and retail graphics

• Acrylic, wood, MDF, PVC board, foam board, aluminum composites

• Custom printed products and specialty items

Printer Weight & Size

• Size: 3,175 × 2,450 × 1,250 mm

  • Inches: 125.0″ × 96.5″ × 49.2″

  • Feet: 10.41 ft × 8.04 ft × 4.10 ft

• Weight: 510 kg / 1,124 lb

Shipping Information

• Estimated shipped weight: ~1,200–1,300 lb

• Estimated crate size: approx. 11 ft × 8 ft × 5 ft

Recommended Inks

• Tron LUS210 One Time Use 1 Liter Chip

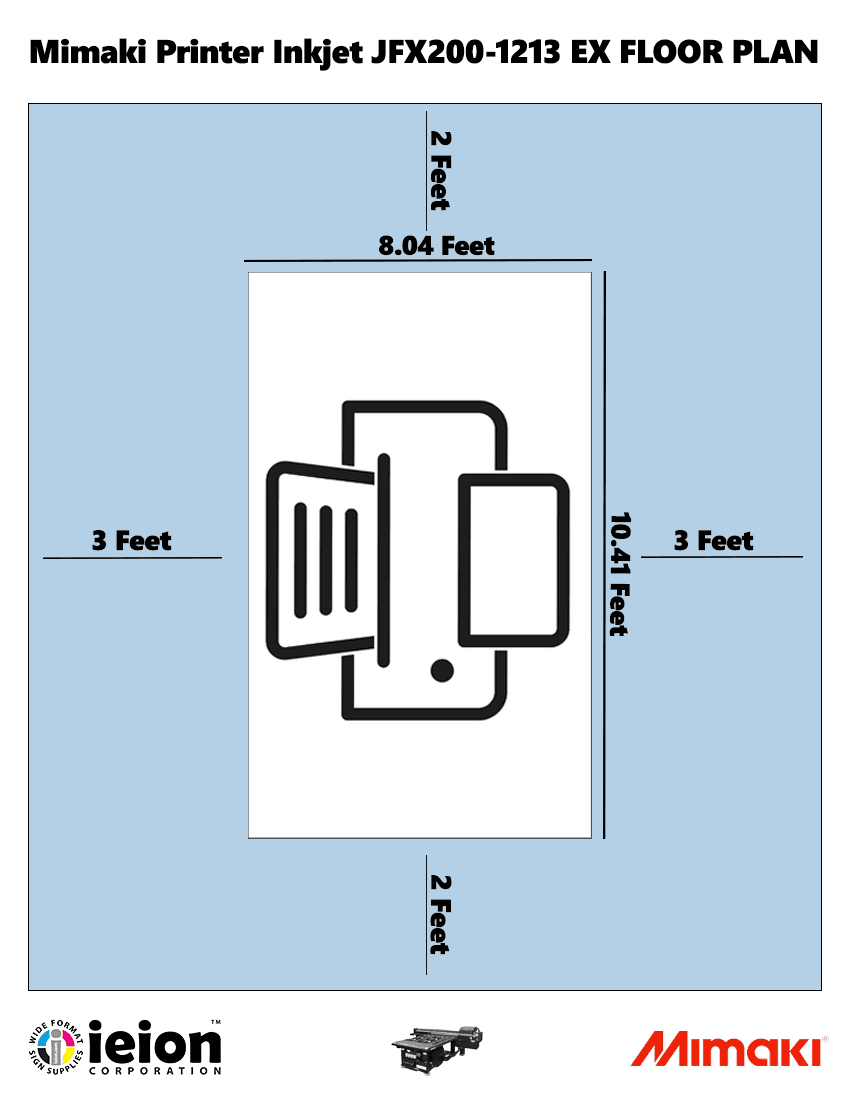

Floor Plan
