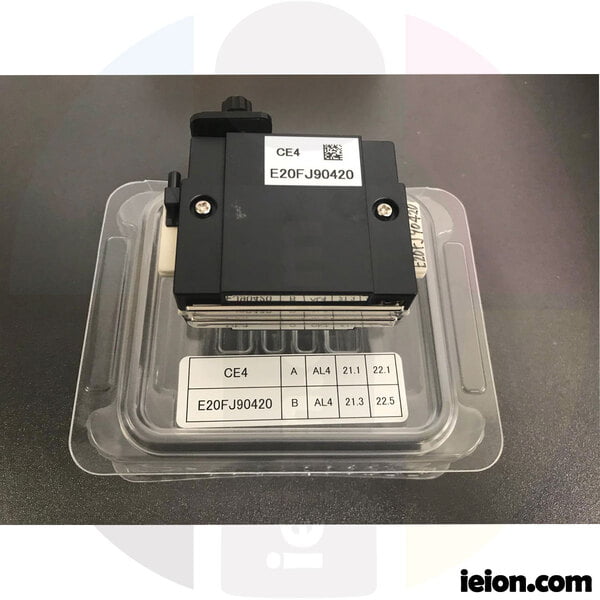

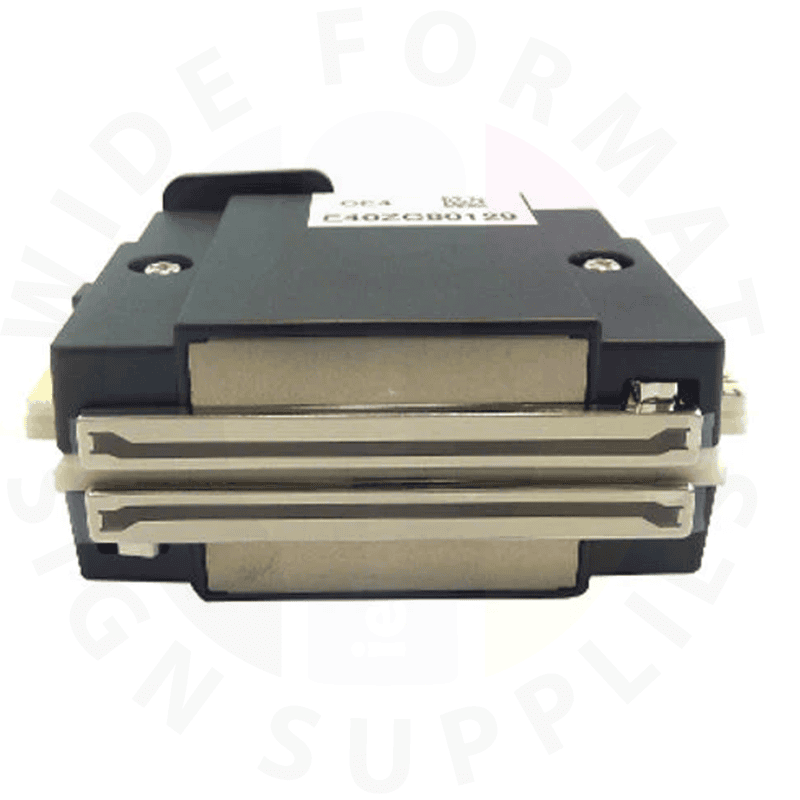

Mimaki CE4 Head Assy - M018821
Tags:
Product Specifications
- Technology: Multi-drop grayscale micro-piezo
- Grayscale levels: 16
- Active nozzles: 318
- Print swathe width: 53.6 mm
- Nozzle pitch: 169 μm
- Native resolution: 150 dpi
- Printhead weight: 148 g
- Dimensions: 85 x 70 x 23 mm
- Drop volume: 6 - 90 pl
- Typical firing frequency: 2.8 - 28 kHz
- Ink Compatibility: oil-based pigment ink and UV curable pigment ink
Choose Quantity
$3,168.34
Product Details
Specifications
This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number M018821 replacing M008386 & KX-CE308644CS-CE4). This part does not include the metallic bracket that can be easily re-used from the previous head.
Parts Type
- Parts TypeParts
