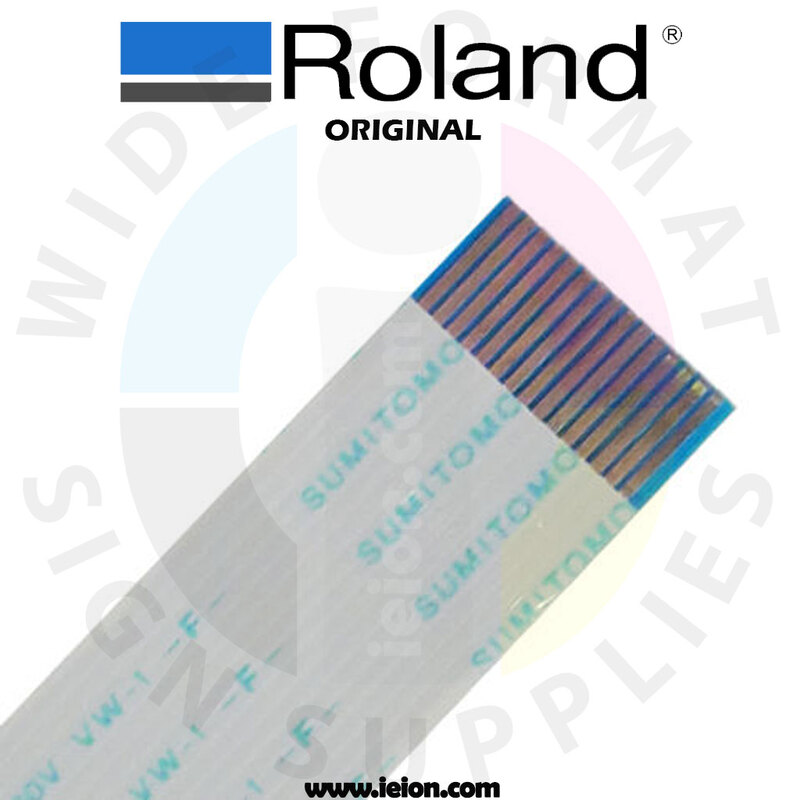

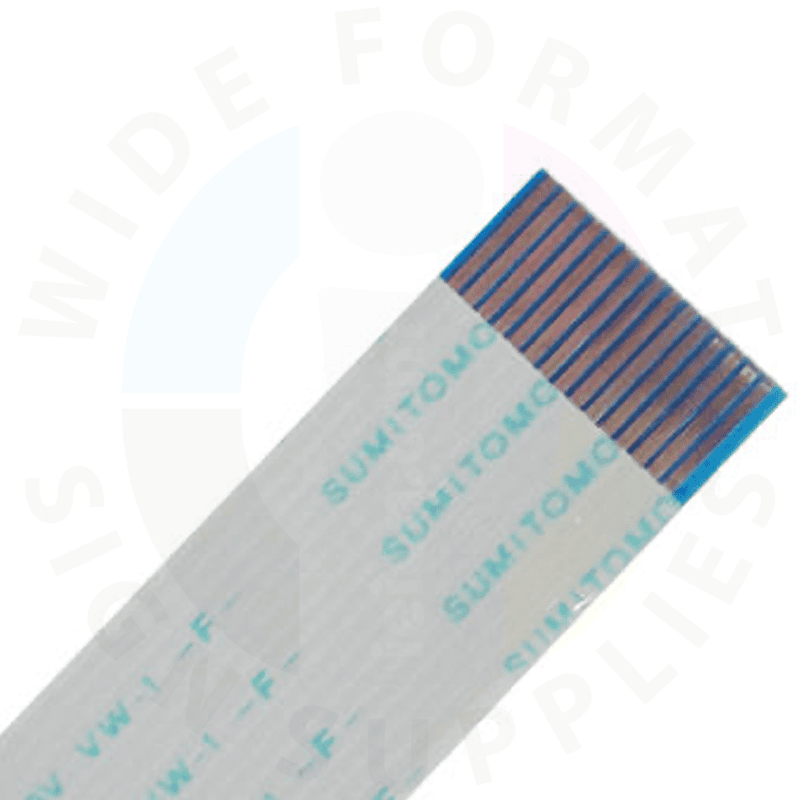

Roland Cable Cord Cut Carriage 15pins 2570mm BB

Specifications

• Type: Flexible flat cable (FFC) used as a “cut carriage cable card”

• Length: 2,570 mm

• Width: 16 mm

• Pins: 15 conductors; same-side contact exposure (BB style)

Compatibility

This cable card is compatible with multiple Roland printer models, including:

• Roland SP series: SP‑540i / SP‑540V

• Roland VP series: VP‑540 / VP‑540i

• Roland VS series: VS‑540

Highlights & Functionality

• OEM Quality: Designed by Roland for precise fit and dependable performance.

• Essential Connectivity: Links the cut carriage board to the servo board—integral for controlling carriage movement accuracy.

• Distinct From Print Carriage Cables: Unlike print carriage cables, which are typically 2,670 mm long, this cut carriage cable functions and fits distinctly at 2,570 mm.

• Maintenance Tip: When replacing this cable, it’s best practice to also replace the cut cable guides (plastic shields)

Applications & Use Cases

• For Repairs & Replacement: Swap in a fresh cable when experiencing cut carriage disconnections, erratic movement, or cable wear.

• Preventative Maintenance: Regular replacement helps uphold precision and minimizes print job errors.

• Technician-Friendly Specification: Accurate length and pin count details aid quick identification and stocking.
