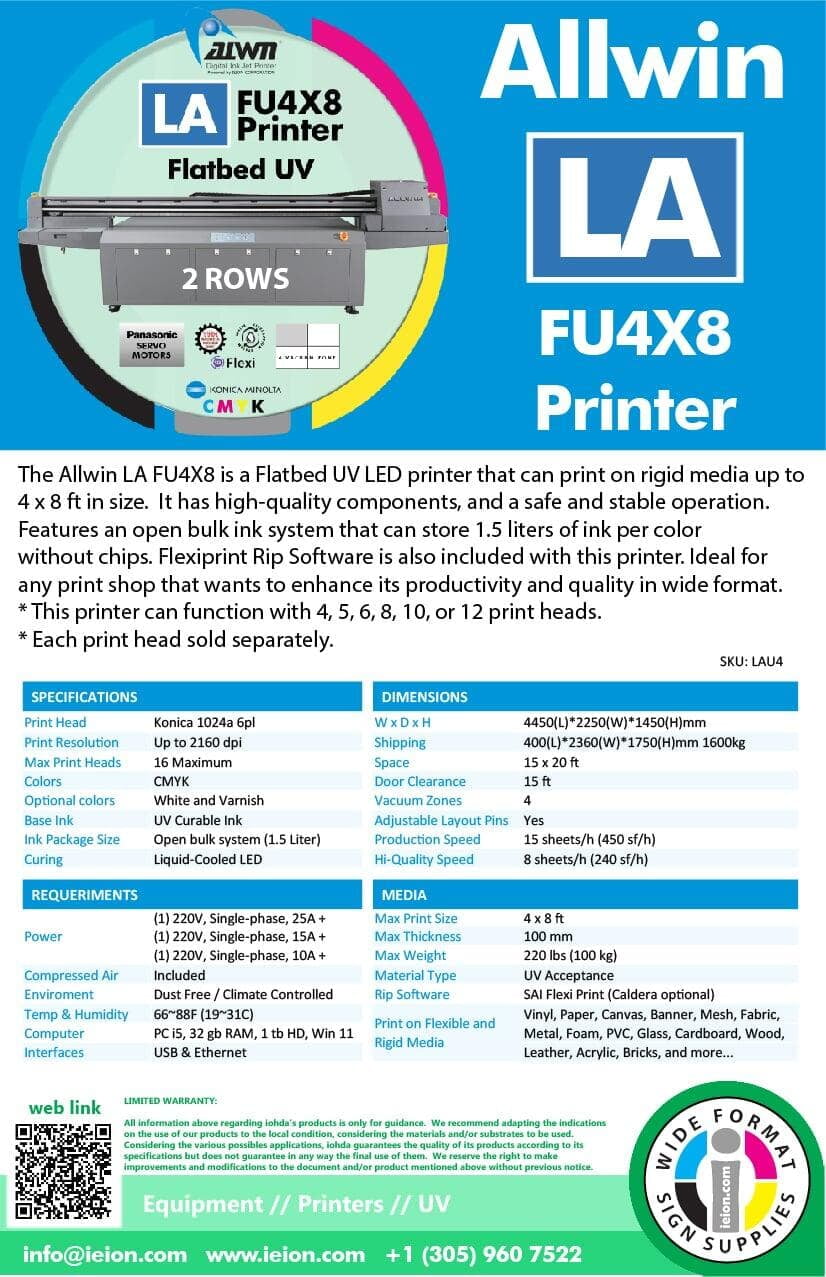

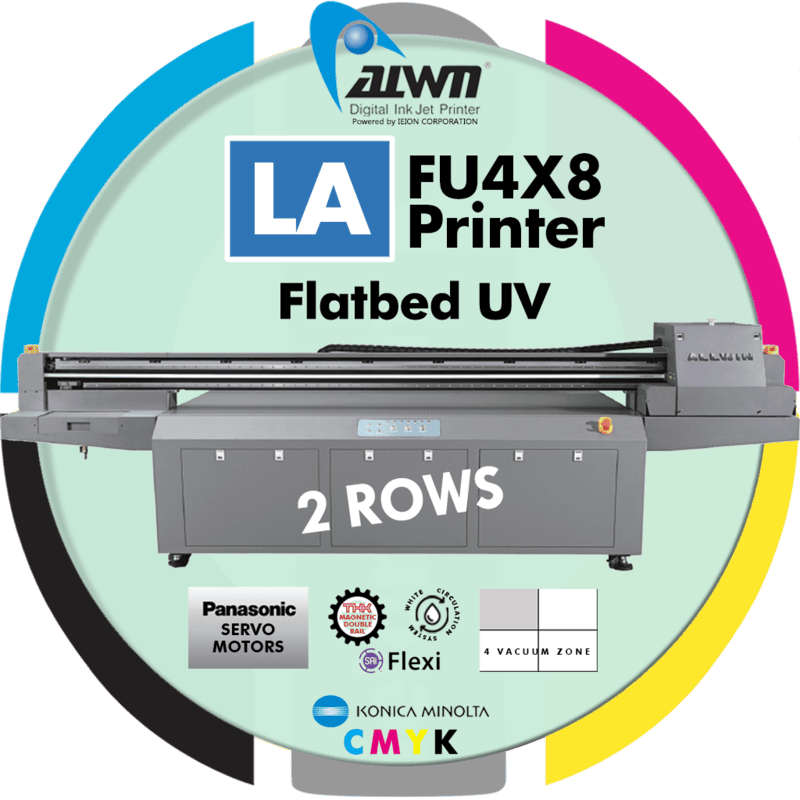

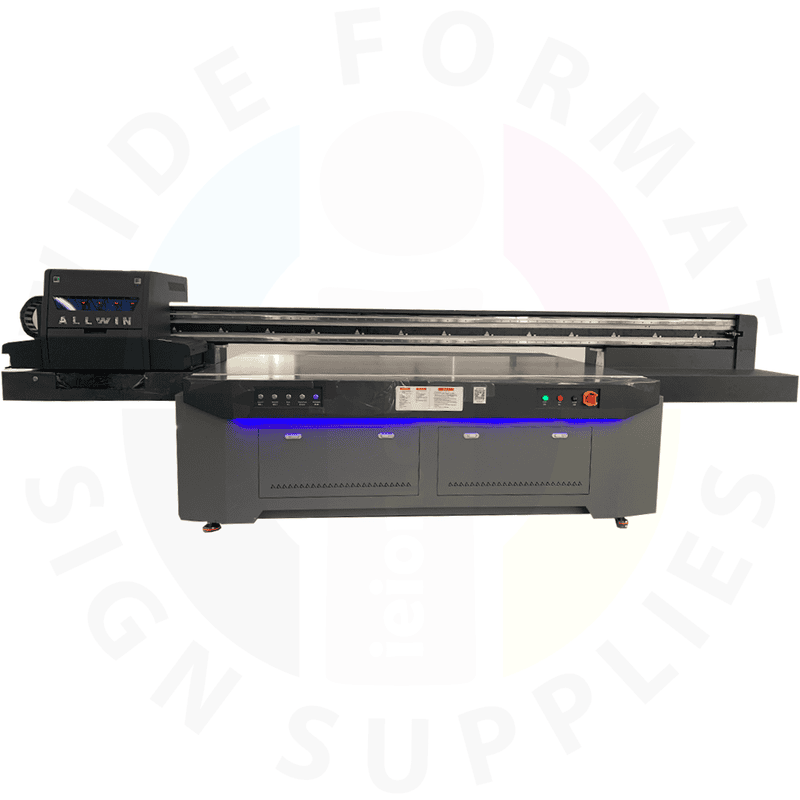

The Allwin Printer UV LA 4x8 Two is a powerful flatbed UV LED printer designed for high-quality printing on rigid media up to 4 x 8 feet. Built with premium components and engineered for safe and stable operation, this printer is ideal for wide-format print shops looking to enhance productivity and output quality.
It features an open bulk ink system (chip-free) with 1.5-liter tanks per color, offering maximum flexibility and cost-efficiency. The printer includes SAI FlexiPrint RIP software for precise color control and workflow optimization.
🔧 Print Head Configuration Options
This printer supports a scalable setup with up to 12 Konica 1024i print heads, arranged in 2 rows (up to 6 heads per row):
Option A: 4 Print Heads
Option B: 5 Print Heads
Option C: 6 Print Heads
Option D: 8 Print Heads
Option E: 10 Print Heads
Option F: 12 Print Heads
⚠️ Note:Print heads are sold separately. Please view the recommended products below.
🔹 Highlights
Flatbed UV LED printing for rigid media up to 4x8 ft.
Open bulk ink system with 1.5L tanks per color – no chips required.
Konica 1024i print heads offer durability and precision.
Color configuration: CMYK + Optional White.
SAI FlexiPrint RIP software included for advanced color control.
Scalable print head setup – start with 4 and expand up to 12.
Ideal for wide-format applications in acrylic, wood, glass, PVC board, foam board, and more.
📋 Technical Specifications
Feature | Description |
|---|
Model | Allwin Printer UV LA 4x8 Two |
Print Technology | Flatbed UV LED |
Print Area | Up to 4 x 8 ft (Rigid Media) |
Print Heads | Supports 4 to 12 Konica 1024i (not included) |
Head Layout | 2 Rows – Up to 6 heads per row |
Ink System | Open bulk system (chip-free), 1.5L per color |
Ink Colors | CMYK + Optional White |
Software Included | SAI FlexiPrint RIP |
Component Quality | High-quality components throughout |
Power Supply | 220V / 5kVA |
Power Protection | Voltage stabilizer recommended |
🆚 Allwin LA vs Mimaki JFX Comparison
Feature | Allwin LA 4x8 Two | Mimaki JFX |
|---|
Print Head Lifetime | Up to 10 years | Around 3 years |
Print Head Cost | ~40% lower than Mimaki | Higher |
Head Usage | 1 head per color | 1 head for 4 colors |
Ink System | Open bulk (Agfa inks) | Chip-controlled (LUS-120) |
Ink Cost | ~20% lower than Mimaki inks | Higher |
Max Media Thickness | Up to 4 inches | Up to 2 inches |
