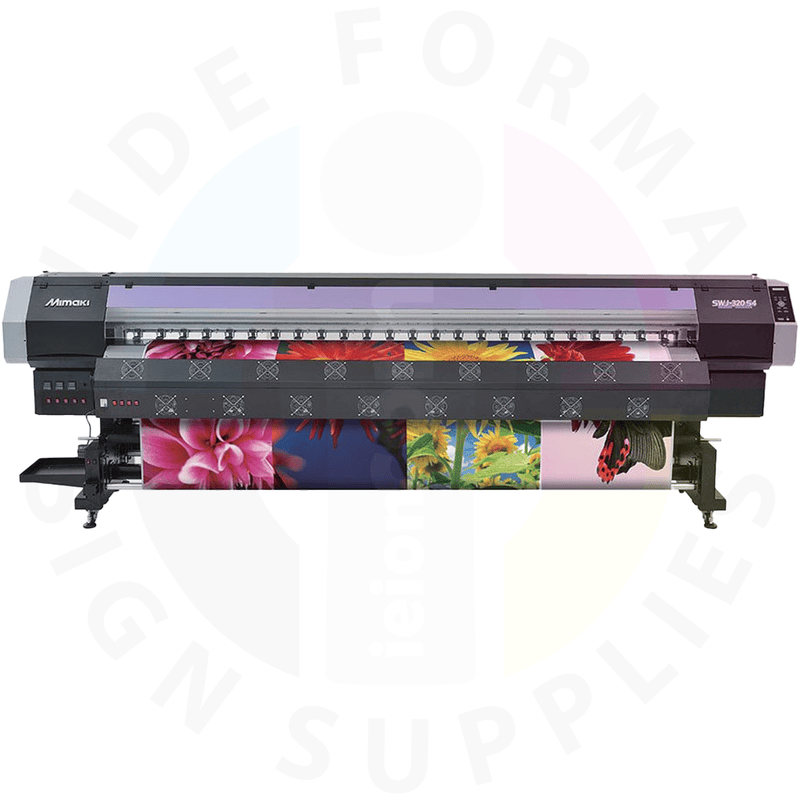

Mimaki Printer SWJ-320 EA

Specifications

• Printhead: On-demand piezo head (4 printheads with 2 staggered configuration)

• Print Resolutions: 300 / 600 / 900 / 1,200 dpi

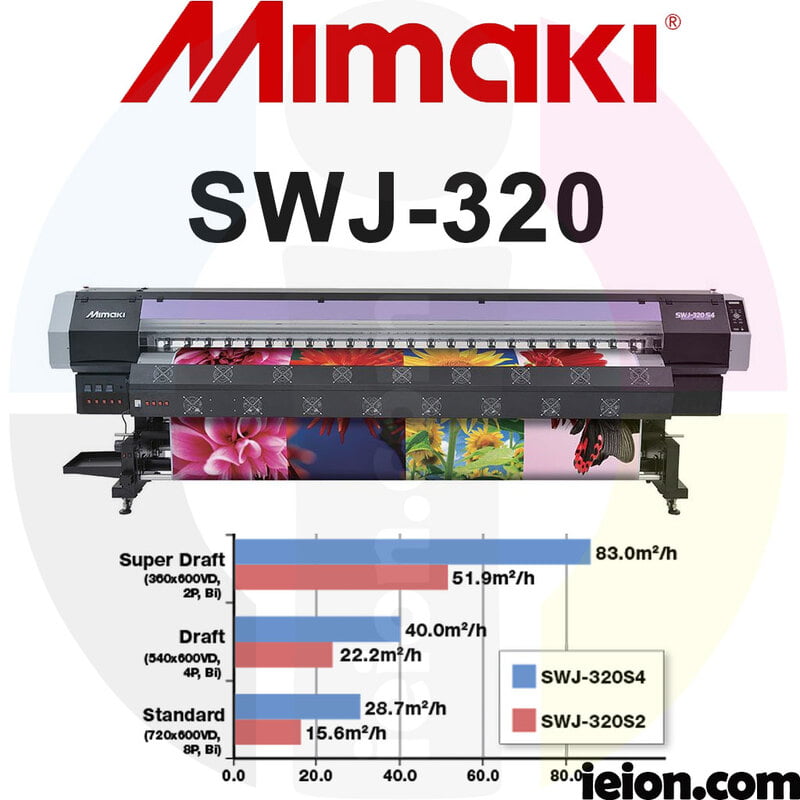

• Print Speed: Up to 137 m²/h (300×600 dpi, 2-pass Bi-directional)

• Maximum Print Width: 3,200 mm (126 inches)

• Maximum Media Width: 3,250 mm (128 inches)

• Minimum Media Width: 210 mm (8.2 inches)

• Media Thickness: Up to 1.0 mm (0.039 inches)

• Media Weight: Feeding: up to 100 kg (220 lbs); Take-up: up to 100 kg (220 lbs)

• Ink Type: CS100 solvent ink (C, M, Y, K)

• Ink Supply System: 3L per color

• Drying Device: 3-way intelligent heater (Pre/Print/After)

• Interface: USB 2.0, Ethernet 1000BASE-T

• Power Supply: AC 200–240V ± 10%, 50/60Hz ±1 Hz, 29 A or less

• Power Consumption: 6.9 kW or less

• Operational Environment: Temperature: 20–30°C (68–86°F), Humidity: 35–65% RH (non-condensing)

• Certifications: VCCI Class A, FCC Class A, ETL IEC 60950-1, CE Marking, RoHS, REACH, EAC

Highlights

• High-speed printing up to 137 m²/h (300×600 dpi, 2-pass Bi-directional)

• High-resolution output up to 1,200 dpi for detailed prints

• Twin-roll printing: allows simultaneous printing on two rolls up to 60 inches wide

• Advanced printheads: four staggered printheads for improved productivity

• Mimaki Core Technologies: includes MAPS4 and Nozzle Recovery System (NRS) for enhanced print quality and reliability

Applications

• Signage: Banners, posters, window graphics

• Vehicle Wraps: Full and partial wraps

• Interior Décor: Wallpapers, murals

• Apparel: Sportswear, fashion textiles

• Soft Signage: Flags, fabric displays

• Point of Sale: Display graphics, promotional materials

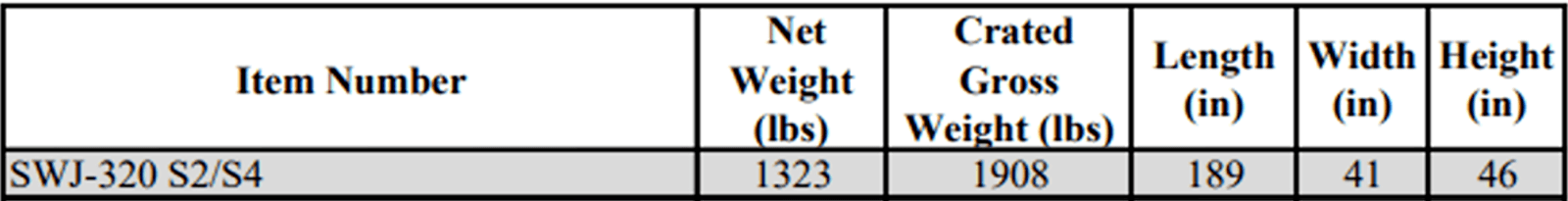

Printer Size & Weight

• Dimensions (L × W × H): 189″ × 41″ × 46″

  • Millimeters: 4,801 × 1,041 × 1,168 mm

  • Feet: 15.75 × 3.42 × 3.83 ft

• Net Weight: 1,323 lbs (600 kg)

Shipping Information

• Packaged Dimensions: Approximately 198″ × 48″ × 52″ (5,029 × 1,219 × 1,321 mm) — includes crate and protective padding

• Shipping Weight: Approximately 1,450 lbs (658 kg) — accounts for crate and packing materials

• Shipping Requirements: Forklift or pallet jack required for unloading

• Minimum installation floor space: 20′ × 8′ (6.1 m × 2.4 m)

• Clearance required around printer for operation and maintenance: 3′ (0.9 m)

Recommended Inks

• Mimaki Ink ECO CS100 2 L Bottle

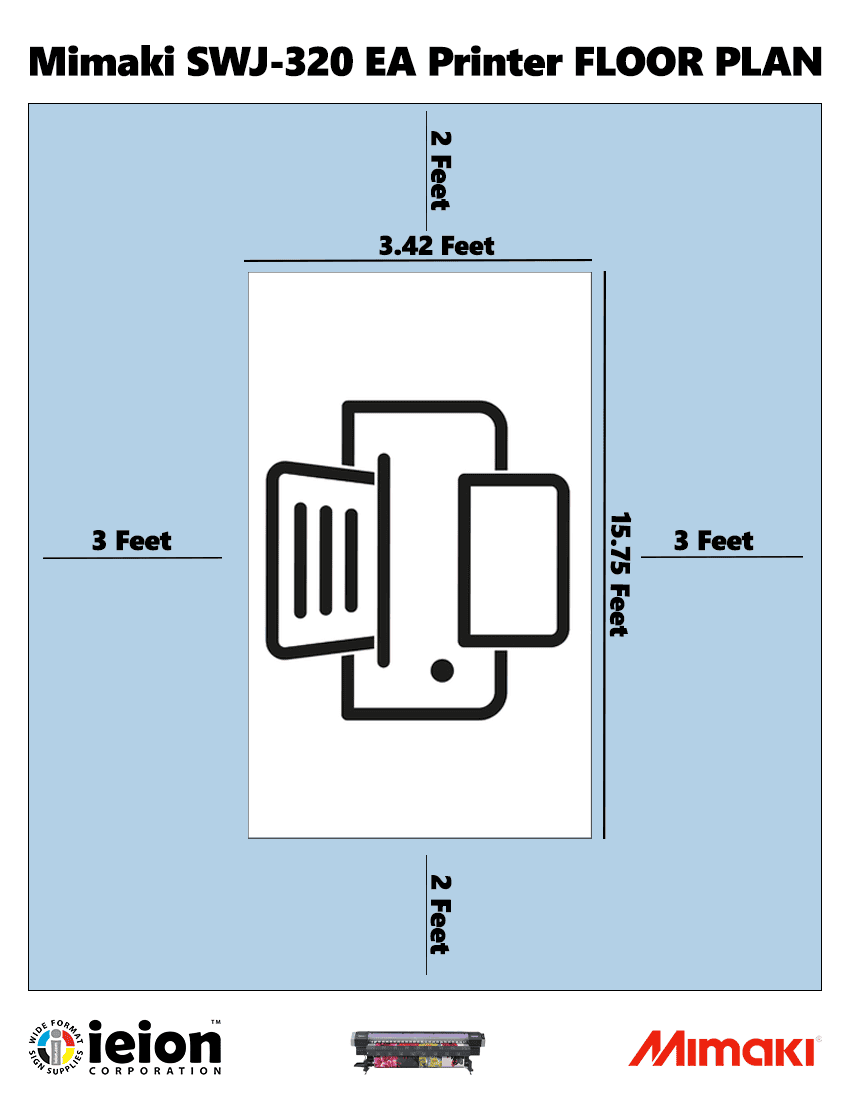

Floor Plan
