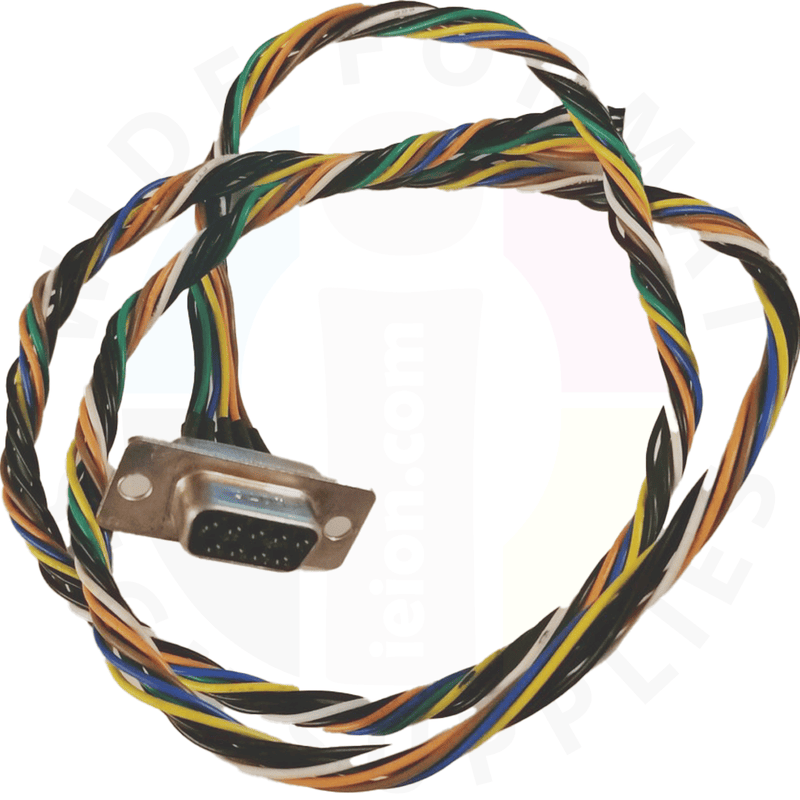

Mimaki Cable Outer Heater Junction Assy

Specifications

• Product Type: Outer Heater Junction Cable Assembly

• Manufacturer: Mimaki (or Mimaki-specified OEM)

• Function: Connects the outer heater unit to the printer's mainboard or power/control circuitry

• Construction: Multi-wire harness with heat-resistant insulation and factory-mounted connectors

• Typical Length: Varies by model (commonly around 260mm in similar assemblies)

• Compatibility: Used in models like Mimaki JV33, CJV30, JV5, and other wide-format printers

Highlights

• OEM-grade assembly ensures full compatibility with Mimaki printers

• Provides reliable power and signal delivery to outer heater components

• Engineered to withstand printer operating temperatures and mechanical movement

• Replaces worn or faulty heater wiring assemblies to prevent temperature errors

• Plug-and-play connectors simplify installation and reduce downtime

Applications and Uses

• Used in heat-controlled printing environments where media pre-heating or drying is required

• Integral to the printer's heater system—helps maintain media temperature for ink adhesion and drying

• Commonly replaced when experiencing heater-related error codes, temperature instability, or connectivity faults

• Suitable for solvent, eco-solvent, textile, and UV printer models using active heating systems

• Important for maintaining consistent print quality in high-volume or temperature-sensitive production workflows
