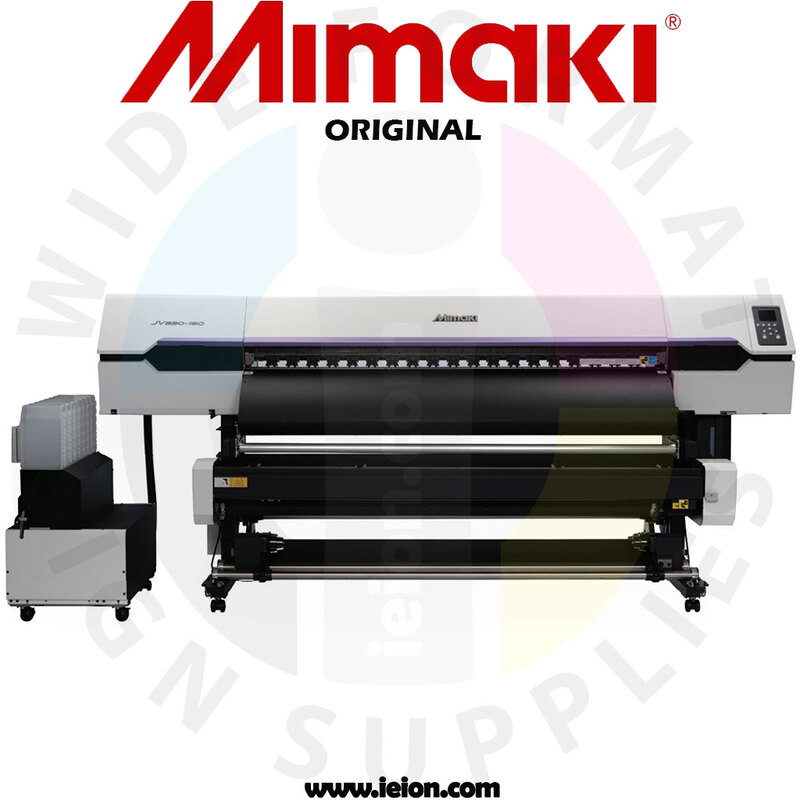

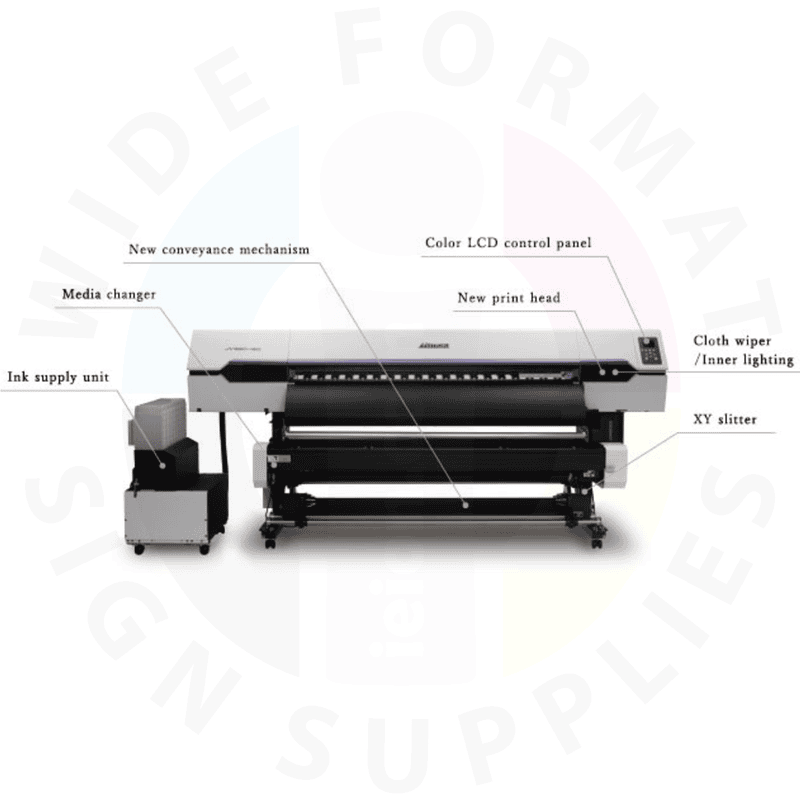

Mimaki JV330-160 Printer with XY Slitter

Specifications

• Model: Mimaki JV330-160 Printer with XY Slitter

• Maximum print width: 63.3″ (1.61 m)

• Maximum resolution: 1,440 × 1,440 dpi

• Print modes: 540×720, 540×900, 540×1080, 720×540, 720×720, 720×1080, 1,440×1,440 dpi

• Supported inks: ES3 (eco-solvent), SS21 (solvent, including white ink), aqueous pigment, dye-sublimation

• Cartridge capacity: 440 cc per cartridge

• Media roll weight: Up to 220 lb (100 kg)

• Media core diameter: 2″ or 3″

• Media heater: Triple-stage intelligent heater (pre-print, print, post-print)

• Take-up device: Standard roll take-up (inside/outside selectable)

• Interface: USB 2.0

• Power: AC100–120V ±10% or AC220–240V ±10%, 50/60Hz, <1,440 VA

• Operating environment: 64–95 °F (20–35 °C), 35–65% RH

Highlights

• High-definition printing up to 1,440 dpi for sharp graphics

• Supports eco-solvent, solvent, aqueous pigment, and sublimation inks

• Large 63″ width for signage, vehicle wraps, and banners

• Triple-stage heating ensures proper drying and media handling

• Uninterrupted Ink Supply System (UISS) for continuous printing

• Compact footprint suitable for mid-sized print shops

• High media roll capacity (up to 220 lb / 100 kg)

• RIP software with 16-bit rendering for smooth gradations

Applications

• Indoor and outdoor signage and display graphics

• Vehicle wraps and fleet graphics

• Banners, posters, window graphics

• Wallpaper and interior décor prints

• Textile printing with dye-sublimation

• Trade show graphics and POP displays

• Long-run production for high-volume print shops

Printer Weight and Size

• Weight: 358 kg (789 lb)

• Dimensions:

  • Without take-up device: 2,920 × 1,215 × 1,305 mm → 9.57 ft × 3.98 ft × 4.28 ft (115″ × 47.8″ × 51.4″)

  • With take-up device: 3,170 × 1,215 × 1,305 mm → 10.42 ft × 3.98 ft × 4.28 ft (124.8″ × 47.8″ × 51.4″)

Shipping Information

• Packaged weight: 358 kg (789 lb)

• Packaged dimensions: 10.42 ft × 3.98 ft × 4.28 ft (124.8″ × 47.8″ × 51.4″)

Recommended Inks

• Mimaki Ink ECO SS21 440 mL Cartridge

• Mimaki Ink ECO SS21 2 L Bag

• Mimaki SS22 440 mL Cartridges

• Mimaki Ink ECO BS4 600 mL Bag

• Mimaki Ink ECO BS4 2 L Bag

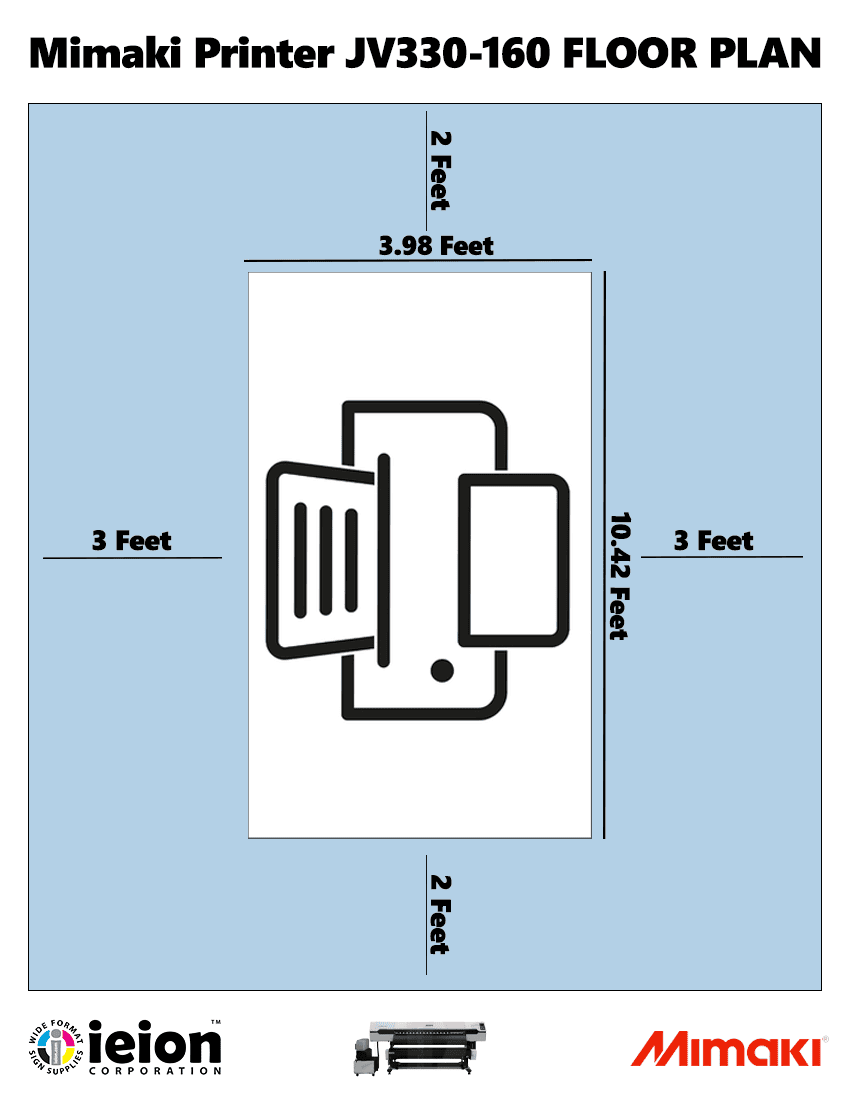

Floor Plan
