Specifications

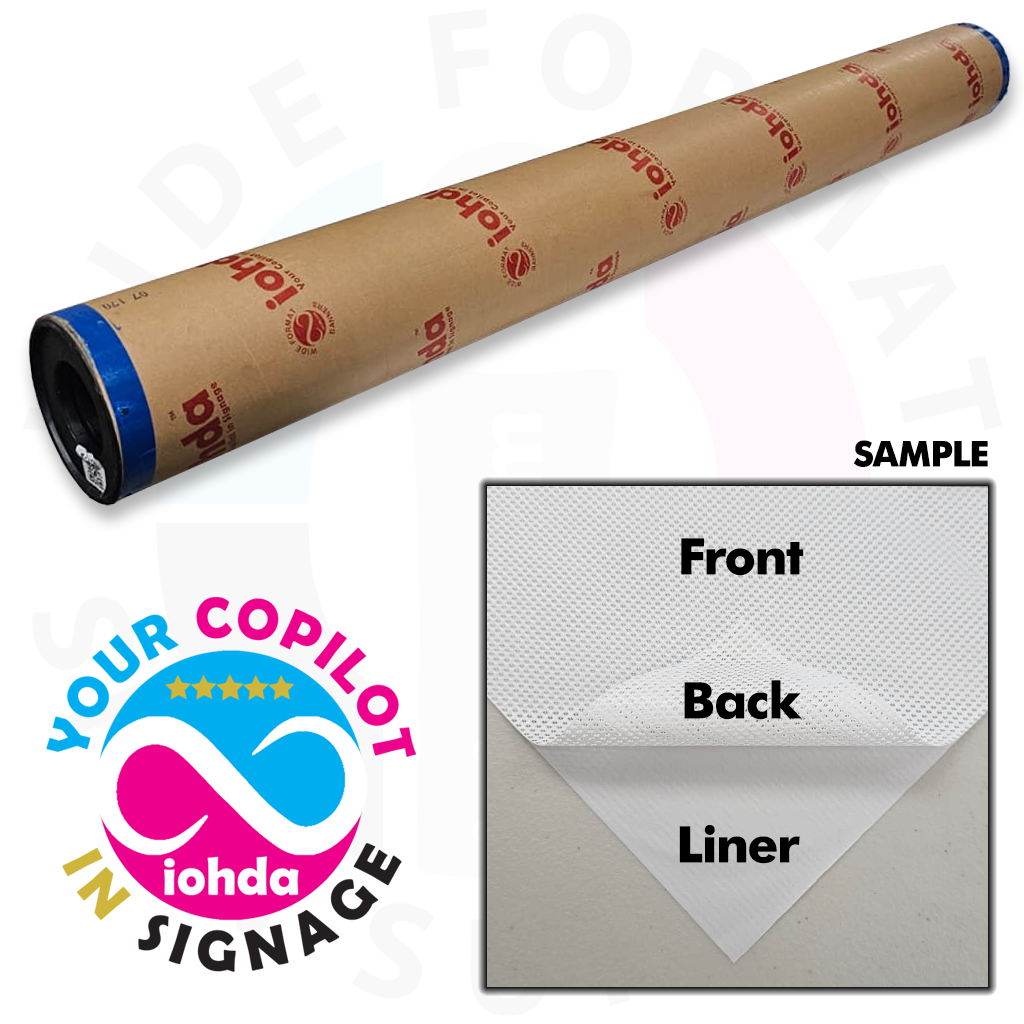

• Construction: Coated PVC mesh with removable liner (print protection & vacuum hold-down)

• Basis Weight:11 oz/yd² (mesh face; overall w/liner slightly higher)

• Scrim / Weave:1000 × 1000 denier, 12 × 12 threads

• Roll Size:63 in × 150 ft (1.60 m × 45.7 m)

• Color / Finish: White matte print face; white semi-matte reverse

• Open Area: Typical mesh openness for 12×12—request COA for exact % by lot

• Print Compatibility:Eco-solvent, Solvent, UV, Latex

• Liner Type: PE/Kraft (batch dependent), peel-off after printing

• Finishing: Weldable (RF/hot-air with mesh webbing/tapes), sewable, grommets, pole pockets

• Use Environment: Outdoor/indoor; wind-load friendly (not a safety net)

Highlights

• Clean Printing: Removable liner prevents ink mist through the holes and keeps the platen/vacuum bed clean.

• Low-Glare Readability: Matte face reduces reflections on large façades and stage lighting.

• Wind Relief: Mesh construction lowers wind load vs. solid banners for more stable installs.

• Lightweight, Tough: High-tenacity 1000×1000 scrim with 12×12 weave balances strength and easy handling.

• Fast Finishing: Liner peels cleanly; edges accept welds, tapes, and grommets.

Use & Details

• Applications: Building wraps, fence banners, stadium & stage backdrops, scaffolding wraps, large event graphics.

• Printing Tips:

  • Load with liner down; use the correct ICC profile.

  • For Latex: moderate heat to avoid shrink; for UV: balance lamp power to reduce brittleness.

  • Allow proper curing/outgassing before removing the liner and finishing.

• Finishing Tips:

  • Peel liner slowly at a low angle; avoid sharp folds.

  • Use mesh-rated weld tapes or fold-over hems with webbing; space grommets appropriately for wind.

• Storage: 64–77 °F (18–25 °C), 35–65% RH; keep in original bag/tube away from heat/sunlight.

• Compliance: Fire ratings vary by lot—request COA if a specific certification (e.g., B1/M2/NFPA) is required.
